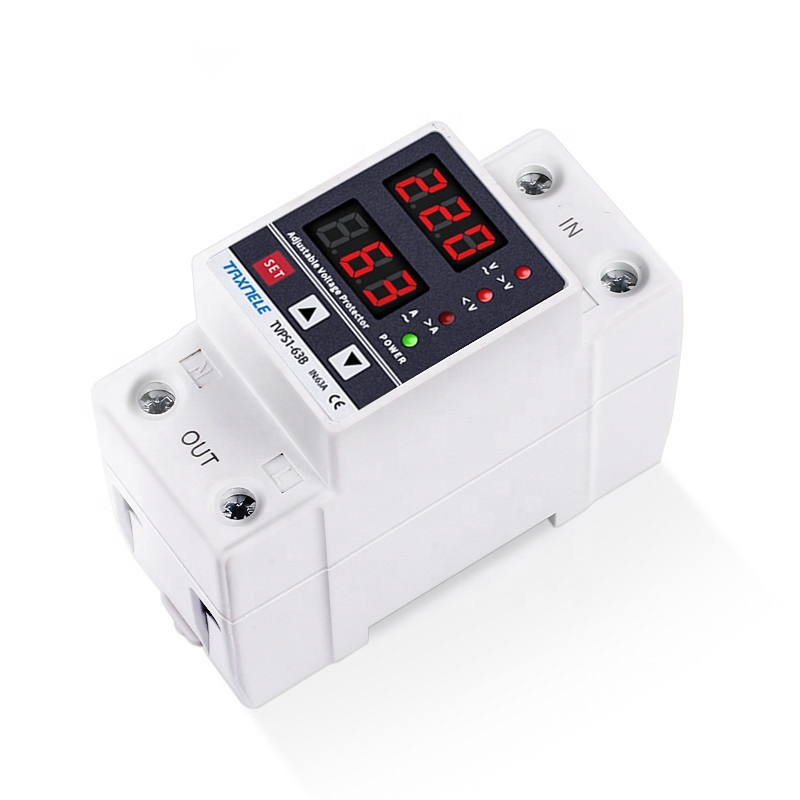

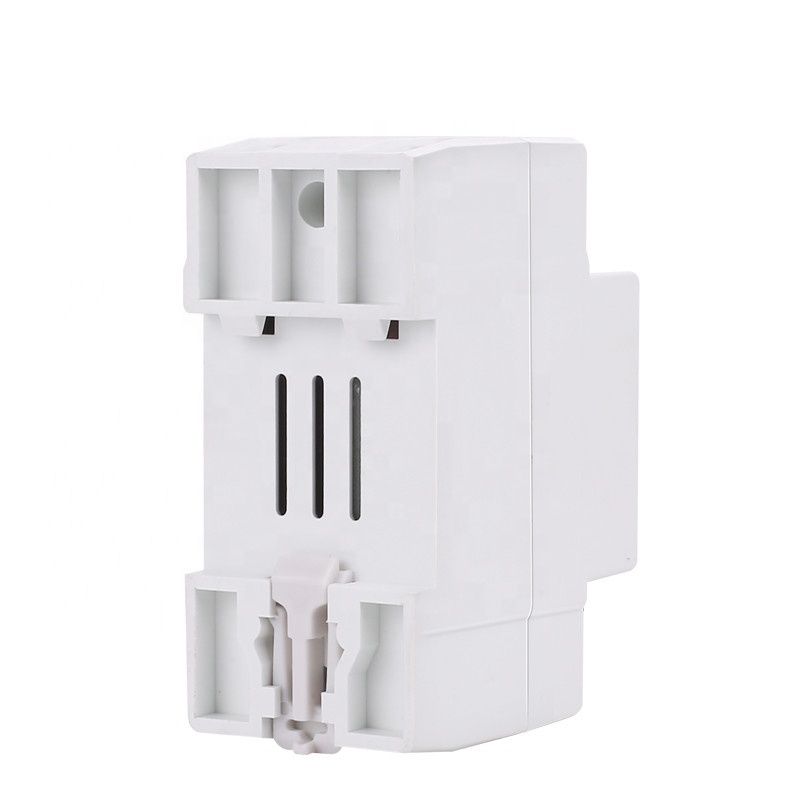

Relé TVPS1-63C pro přepěťovou ochranu, DIN

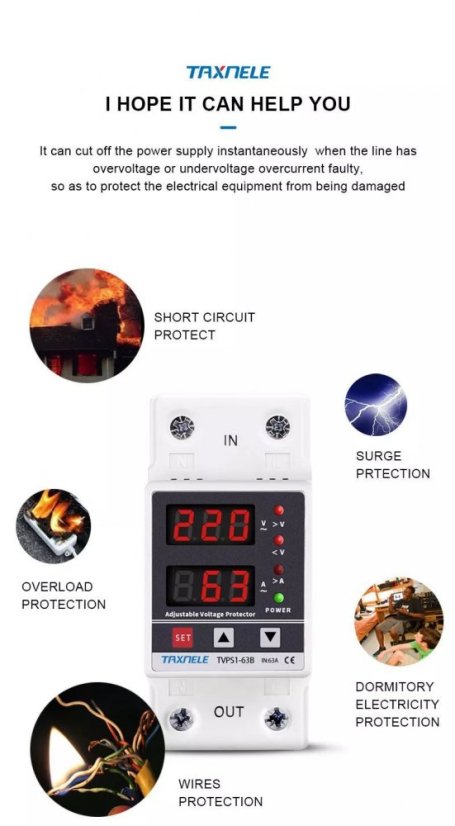

This relay disconnects the power supply during overvoltage, undervoltage, or overcurrent in the circuit, effectively protecting your household appliances. It automatically restores power when the voltage and current in the circuit return to normal.

The adjustable range covers overvoltage values from 221V to 300V, undervoltage values from 219V to 150V, and overcurrent values from 1 to 63A.

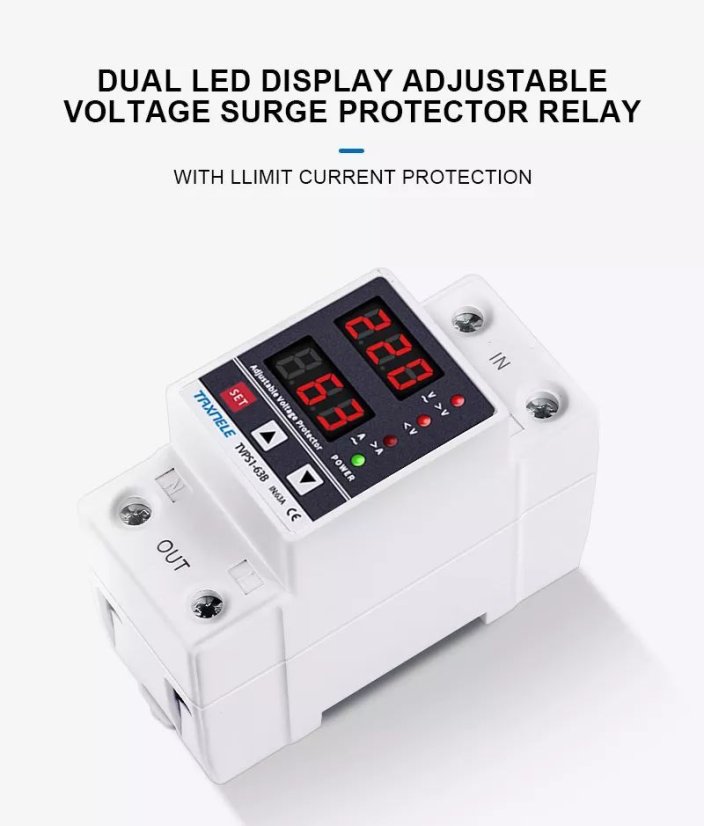

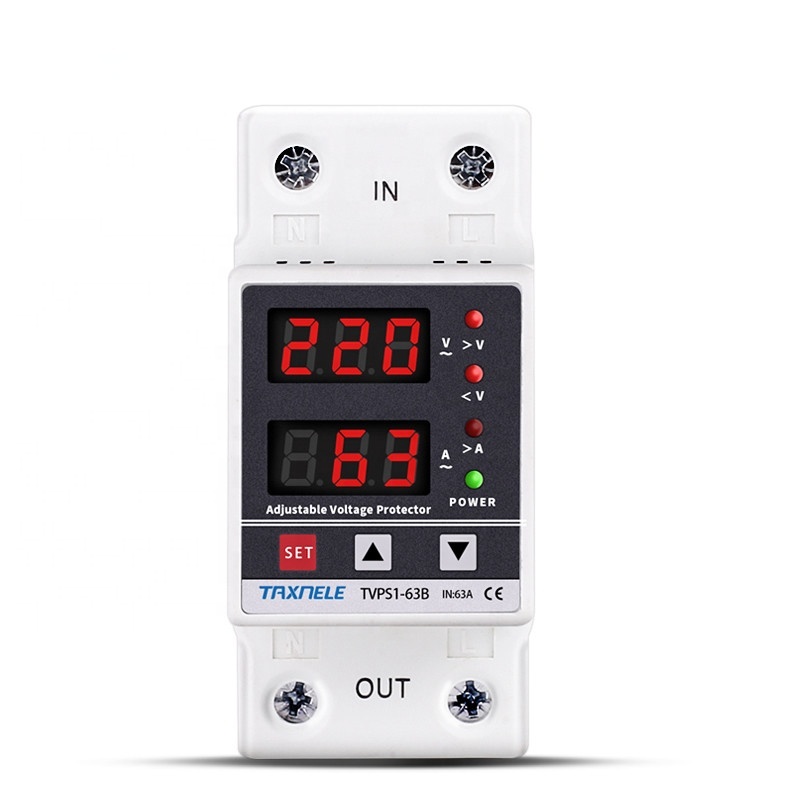

The dual LED display shows the actual voltage and current values, can also be used as a voltmeter and ammeter, and is easy and clear to read.

Features:

• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Automatic recovery
• Voltage display (voltage measurement)
• Current display (current measurement)

Specifications:

• Model: TVPS1-63C
• Supply Voltage: 230VAC 50/60Hz
• Maximum load current: 1 ~ 63 A adjustable (default 63 A)
• Overvoltage protection range: 221V~300~OFF (default 280V)
• Overvoltage reset range: 220V--299V (default 250V)
• Overvoltage protection actuation time: 0.1 s ~ 10 s (default 0.1 s)
• Undervoltage protection range: 219V--150V -OFF (default 160V)
• Undervoltage reset range: 151V--220V (default 180V)
• Undervoltage protection actuation time: 0.1 s ~ 10 s (default 0.1 s)
• Overcurrent setting range: 1-63A (default 63A)
• Overcurrent action range: 0.1~512 seconds (default 5.0s)
• Recovery delay time: 2s ~ 120s (default 60s)
• Turn-on delay time: 2s~10s (default 2s)
• Power consumption: <2W
• Lifespan of electrical devices: 100,000 times

Note: When first connected, wait about 1 minute; after the red light goes out, the product will function properly.
