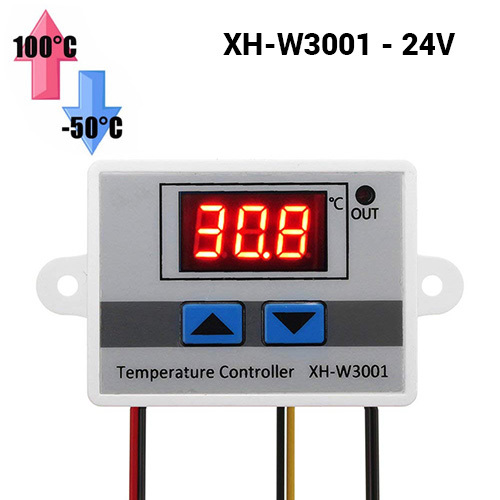

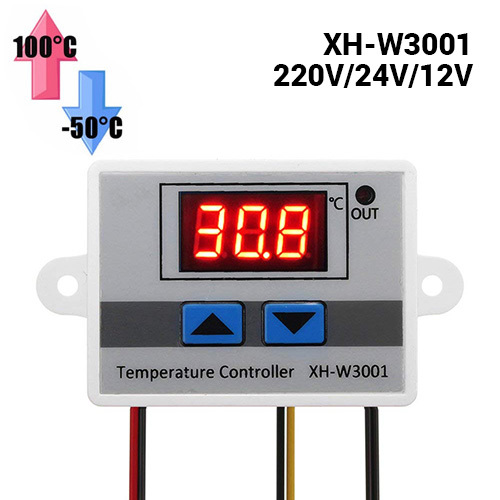

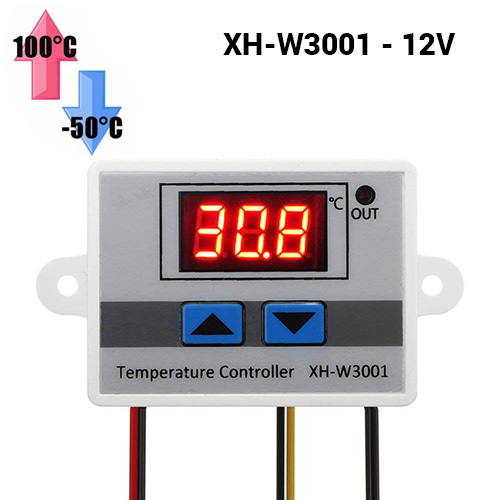

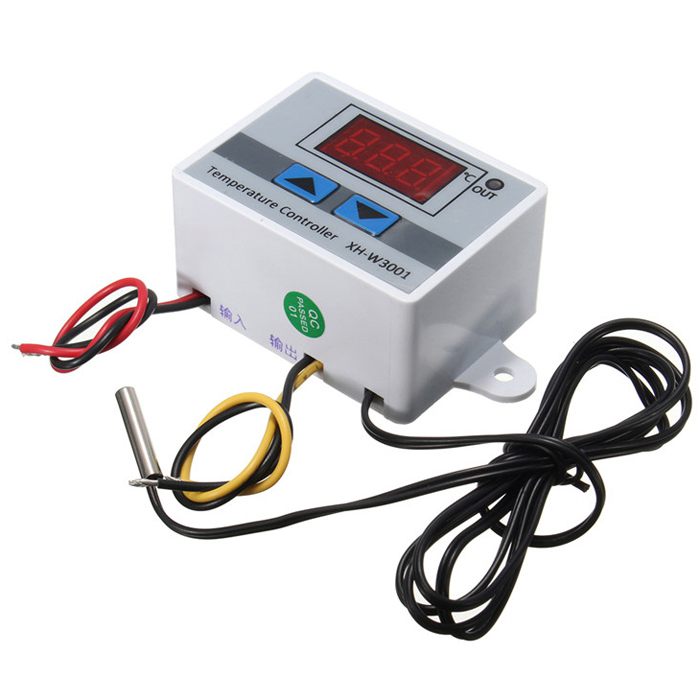

Electronic Thermostat XH-W3001 -50 to 110°C for Heating and Cooling

Electronic Thermostat XH-W3001 -50 to 110°C

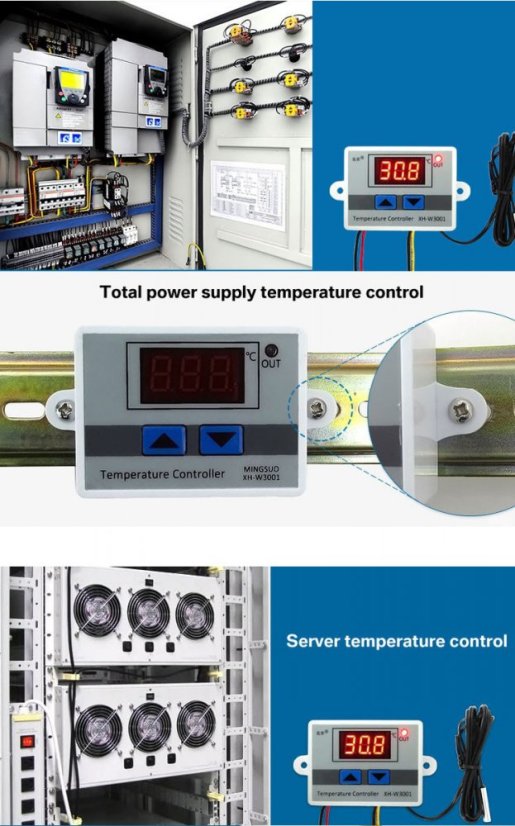

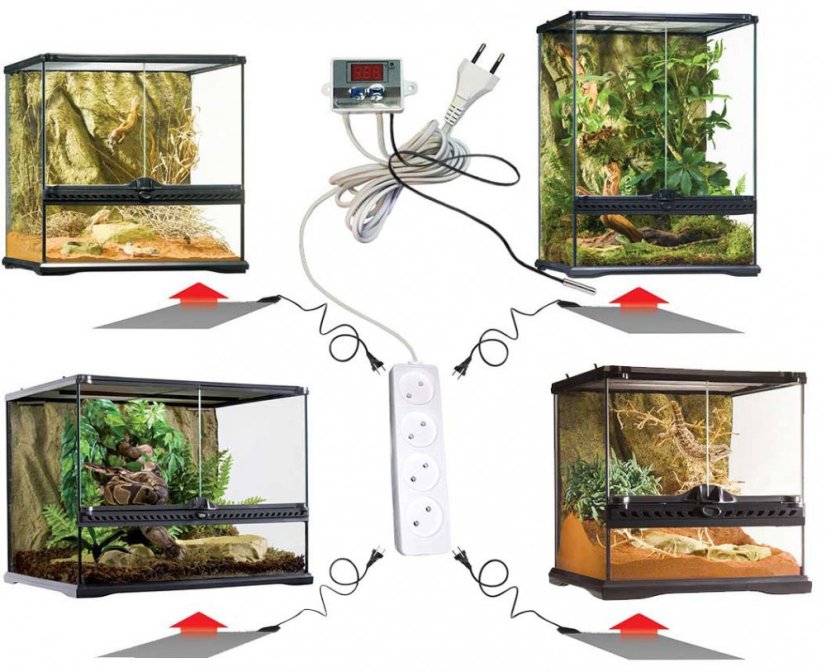

This practical universal thermostat can be used wherever you need to switch devices (such as heating systems or fans) based on temperature.

Specifications:

• Model: XH-W3001
• Power Supply: 220V/12V/24V
• Temperature Range: -50 to 110 °C
• Accuracy: 0.2 °C in the range of -10 to 100°C
• Sensor: NTC 10k, 1m waterproof
• Output: relay 220V/6A, 12V/20A

Dimensions:

60 x 45 x 31mm

The package contains:

1x temperature controller XH-W3001

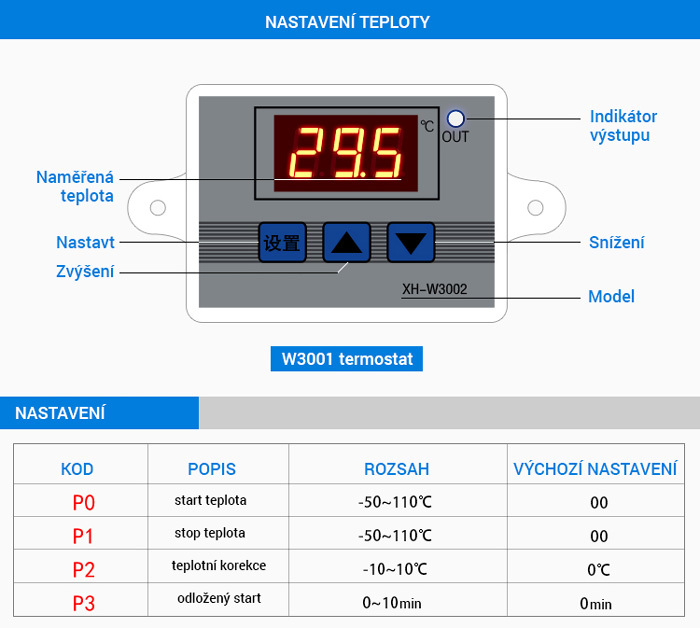

Settings:

The thermostat allows setting temperature T1 and T2, where T1 is the temperature at which the thermostat turns on and T2 is the temperature at which the thermostat turns off. The activation of the thermostat is indicated by a red LED in the upper right corner of the display (label "OUT").

• To set the temperature T1, press and hold the up arrow. Once the display starts blinking, you can adjust the switching temperature with the arrows.
• To set the temperature T2, press and hold the down arrow. Once the display starts blinking, you can adjust the switching-off temperature with the arrows.

Operating Modes:

• Heating mode (T1 < T2): After powering on the device, the thermostat output is activated until the measured temperature reaches level T2. Once the measured temperature drops to level T1, the output is reactivated.
• Cooling mode (T1 > T2): After powering on the device, the output is inactive until the measured temperature reaches level T1. Then the output is activated until the measured temperature reaches level T2.

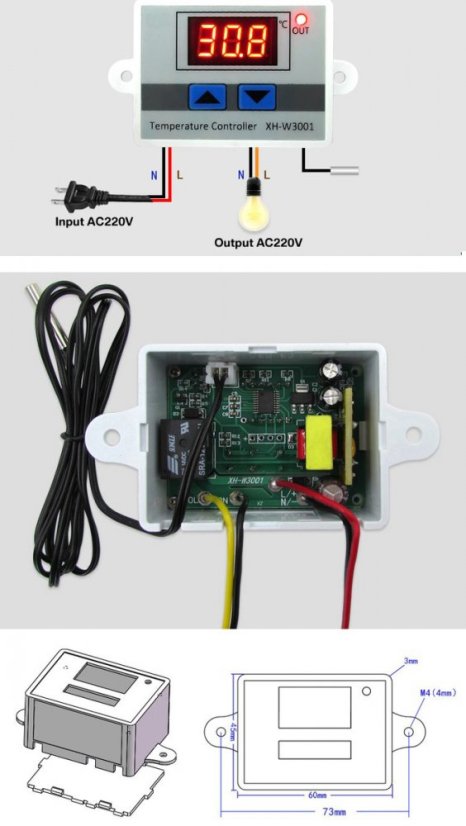

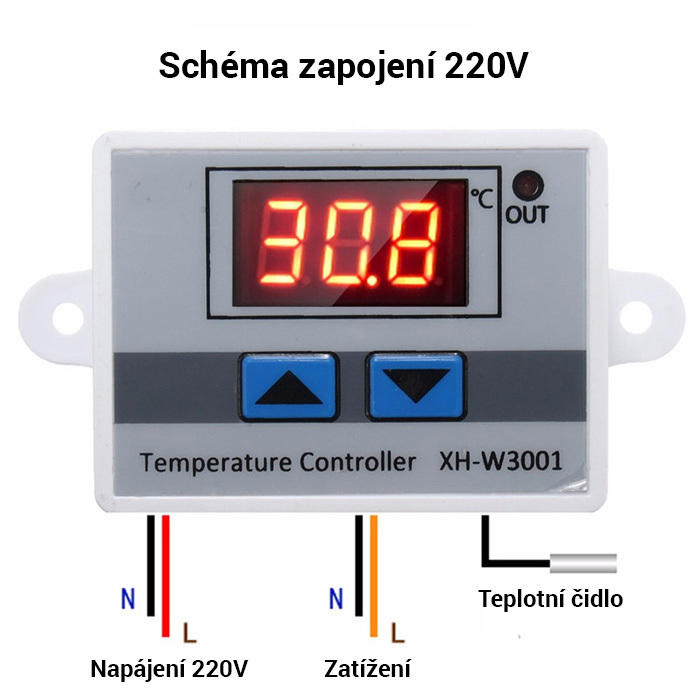

Wiring:

• Red wire: Voltage 230 VAC, phase (L)
• Black wire: Voltage 230 VAC, neutral (N)
• Yellow wire: Load, phase (L)
• Black wire: Load, neutral (N)

Warning: This model is not suitable for industrial use

>>>> Original, Czech distribution! <<<

How to Set Up the XH-W3001 Thermostat (in English)
