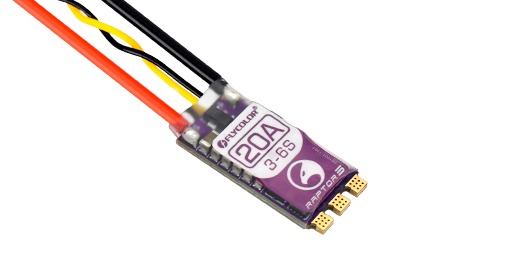

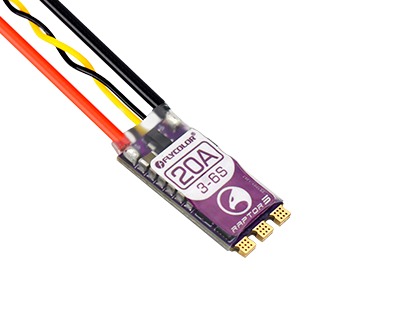

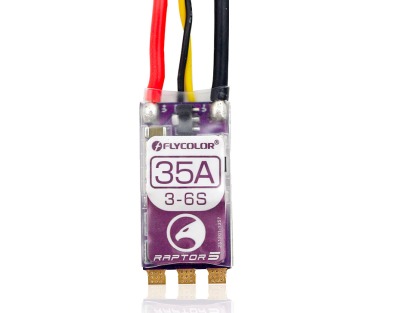

ESC pro drony Flycolor Raptor5 G071 20A/35A/50A

Raptor 5 Series FPV Drone ESC

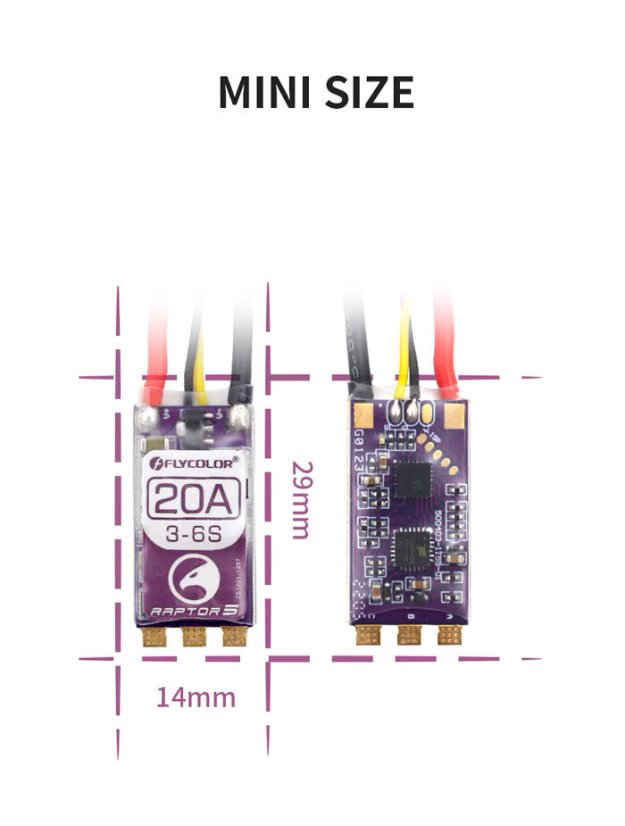

High performance, compact size, and low weight are all features offered by the Flycolor Raptor 5 series. The Raptor 5 ESC from Flycolor is ideal for fixed-wing RC drones! Choose from options of 20A, 35A, and 50A.

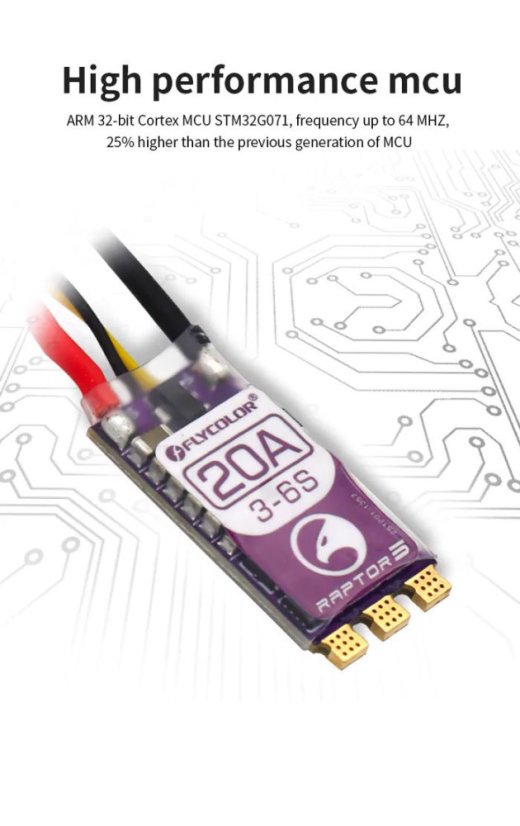

• The Raptor 5 ESC series is equipped with an ARM 32-bit Cortex MCU STM32G071 with a frequency of up to 64 MHz, which is 25% more than the previous generation MCU. The PWM frequency reaches up to 128k, and the higher the frequency, the smoother the throttle response.
• Compared to the previous generation ESC, the firmware has been optimized, resulting in smoother throttle linearity and faster response.

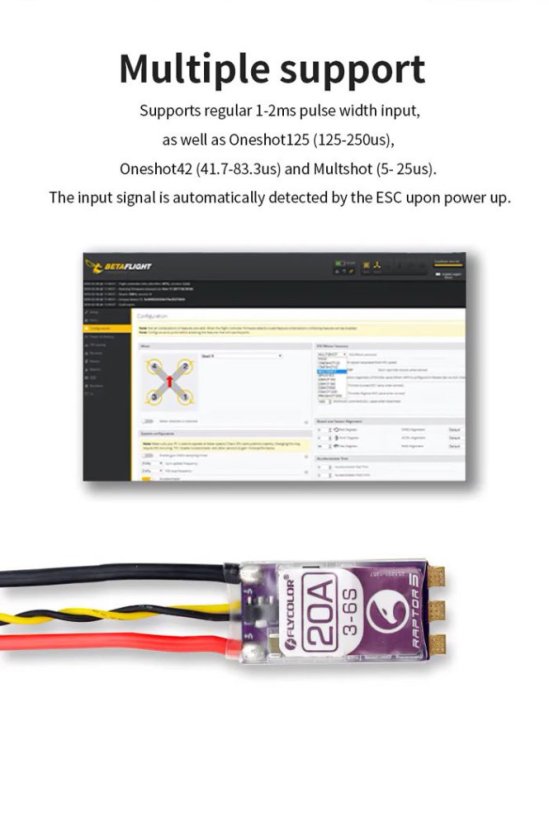

• It supports a standard pulse width input of 1-2 ms, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multshot (5-25us). The input signal is automatically detected by the ESC upon power-up.
• It supports all Dshot and Proshot signals.
• The Damped Light feature performs regenerative braking, leading to very rapid deceleration of the motor and natural active coasting.
• It supports higher power loads, making it more suitable for the sharp maneuvering of a racing drone.

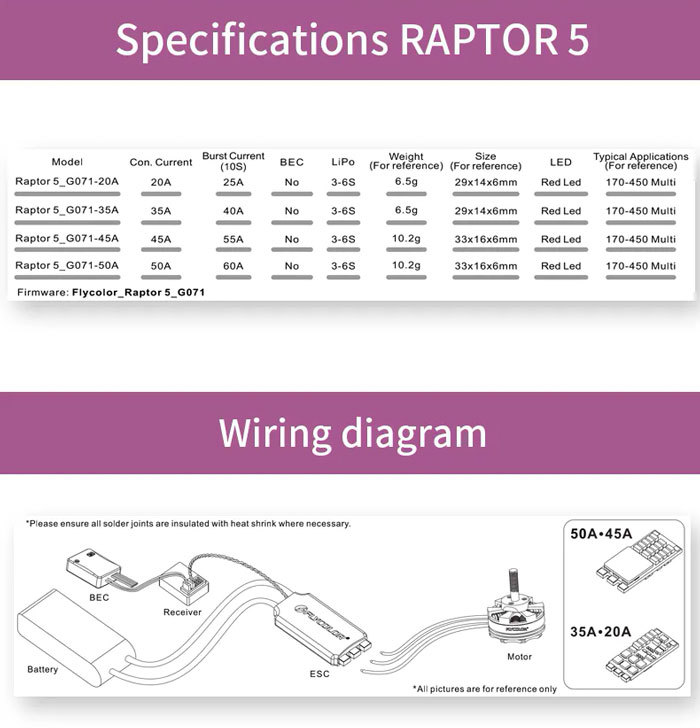

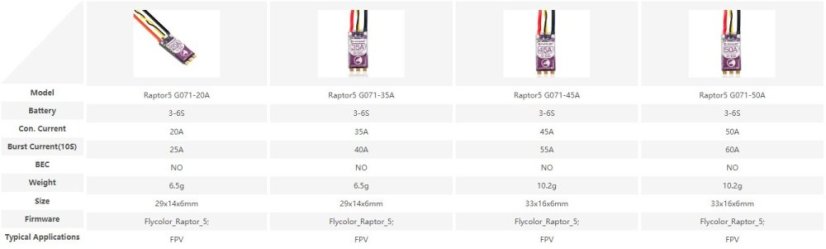

Specifications:

Manufacturer's Page: http://en.flycolor.net/index.php?c=category&id=234

Package Contents:

1x Raptor 5 Series FPV Drone ESC
