EWD95M LoRa DTU DIN

EWD95M LoRa DTU DIN RS485 ChirpIoT 5km

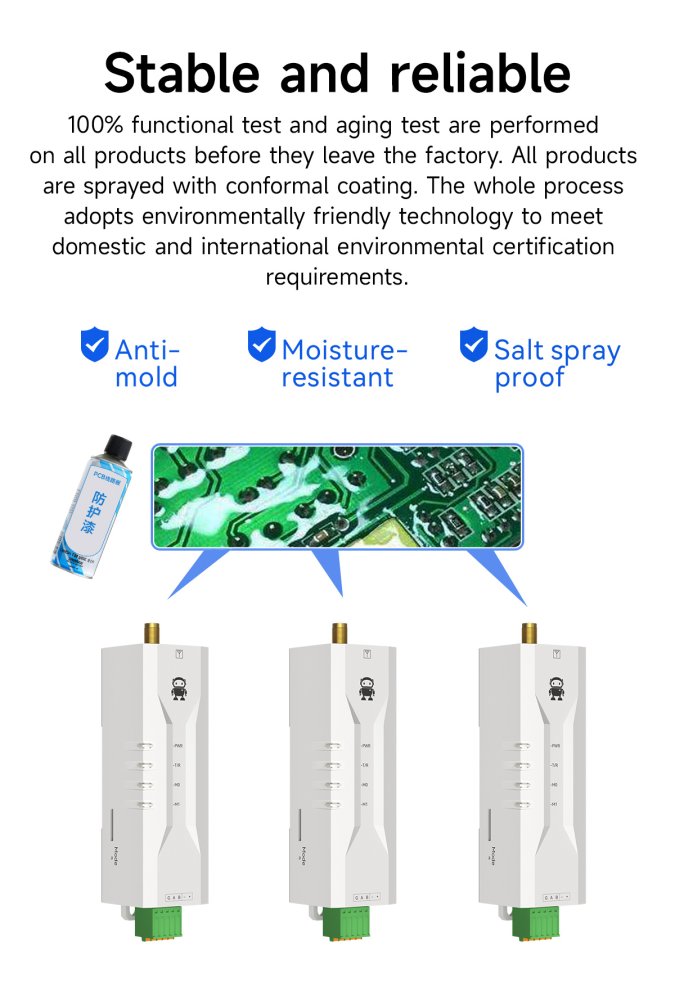

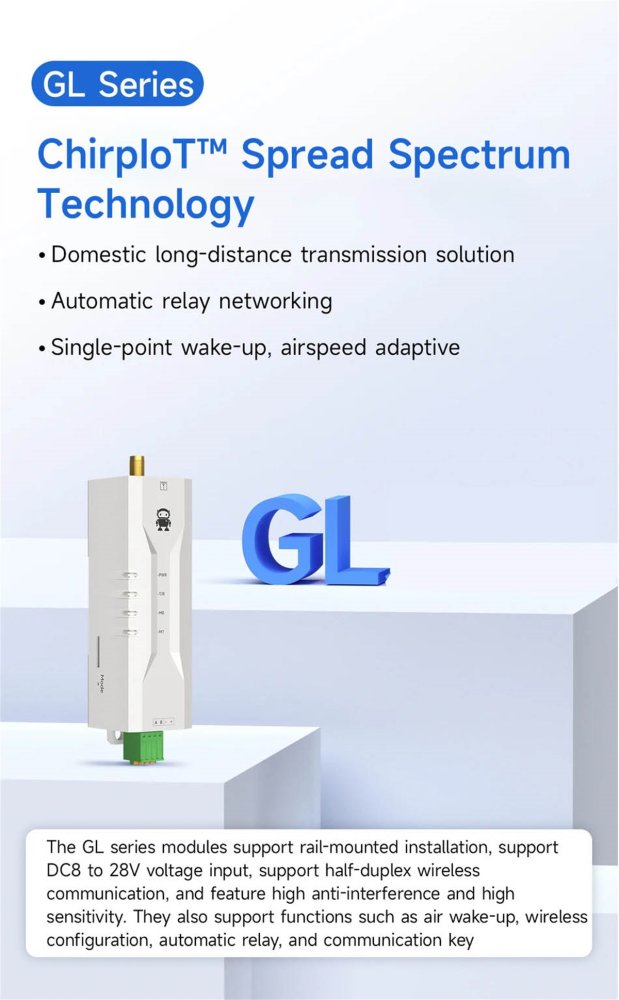

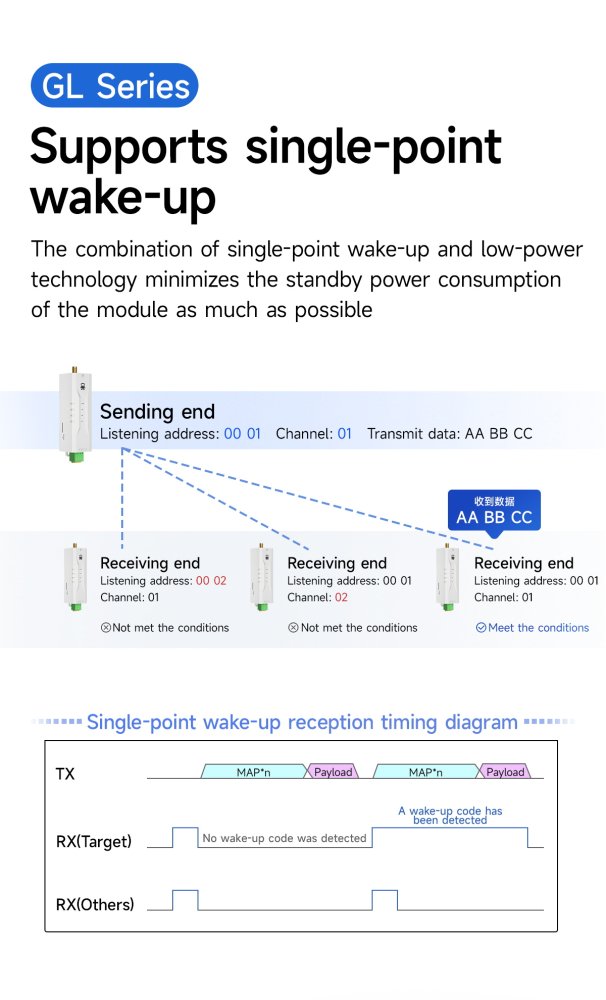

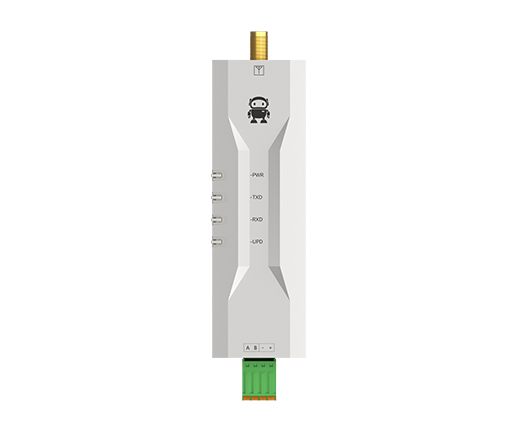

The EWD95M-400GL20(485) and EWD95M-900GL20P(485) are compact micro DIN-rail LoRa wireless data transmission modules (DTUs) from Ebyte. They utilize advanced ChirpIoT™ spread spectrum technology, offering excellent anti-interference performance and reliable long-distance communication. Both models support transparent data transmission, multiple operating modes, air wake-up, wireless configuration, automatic relay, communication key, AT commands, and IAP upgrade. They feature RS485 interface (with RS232 support), plastic housing with three-proof coating (anti-fungal, anti-humidity, anti-salt spray), and easy DIN-rail mounting.

Key Specifications

• Frequency Band:
  • EWD95M-400GL20(485): 410.125–493.125 MHz (default ~433.125 MHz)
  • EWD95M-900GL20P(485): 850.125–930.125 MHz
• Transmit Power: 20 dBm (both models)
• Reference Communication Distance: ~5 km (line-of-sight)

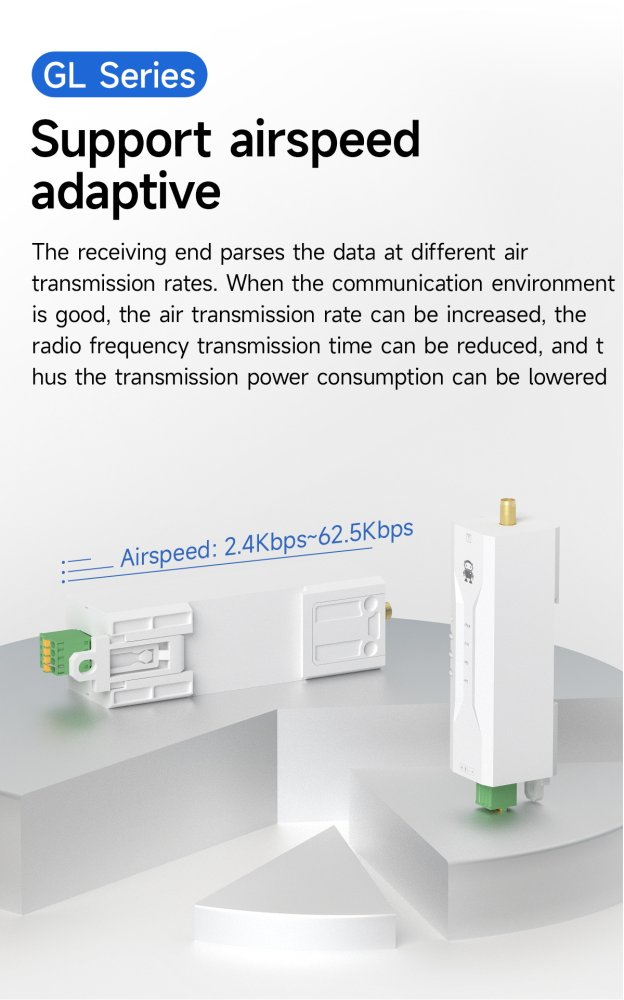

• Air Data Rate: 2.4–62.5 kbps

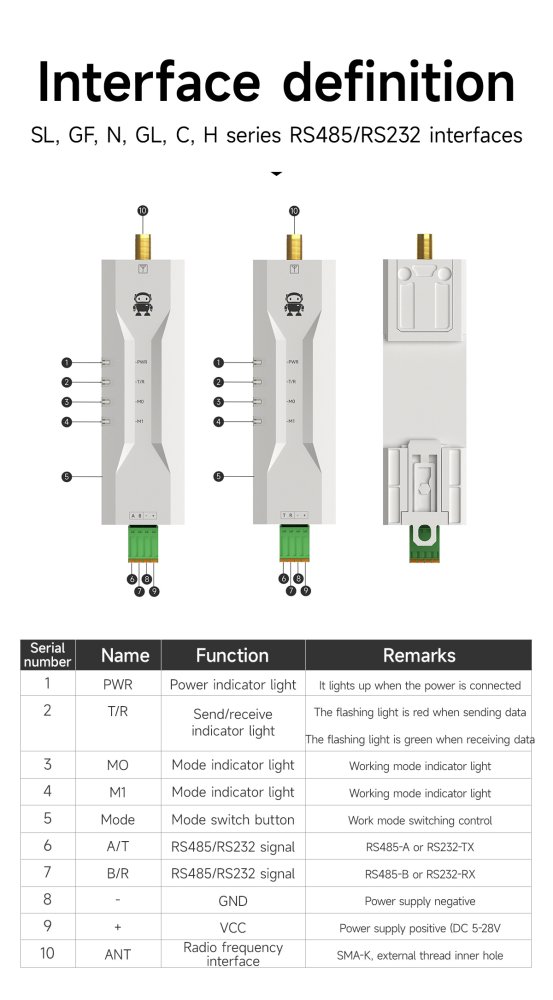

• Interface: RS485 (transparent transmission, RS232 compatible)

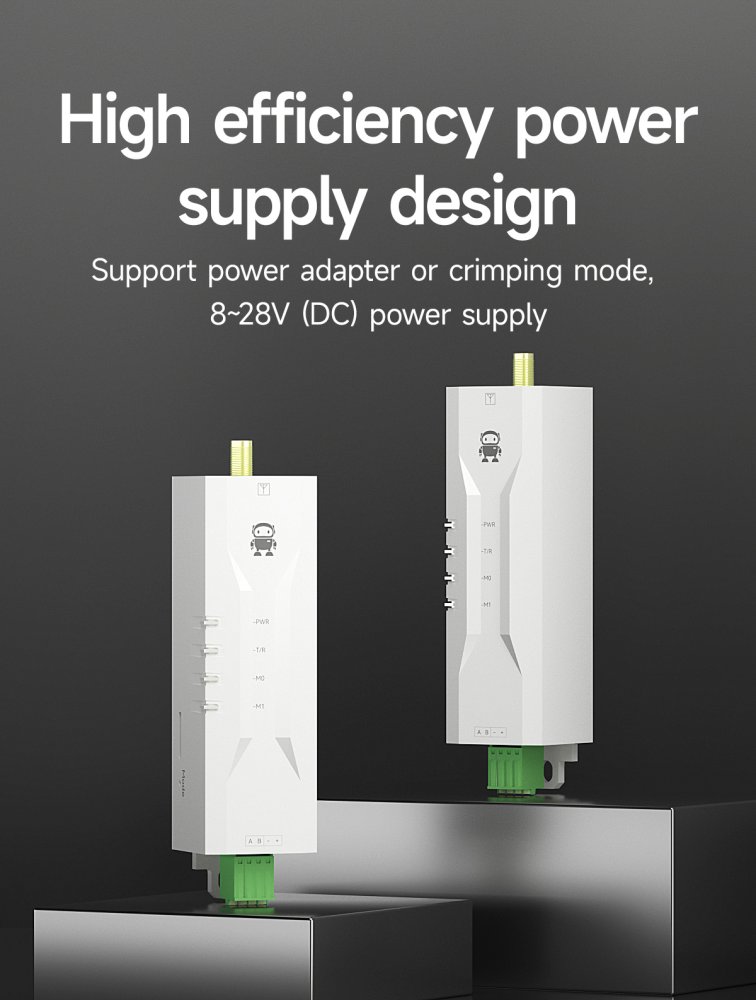

• Power Supply: 8–28 V DC (wide voltage input)

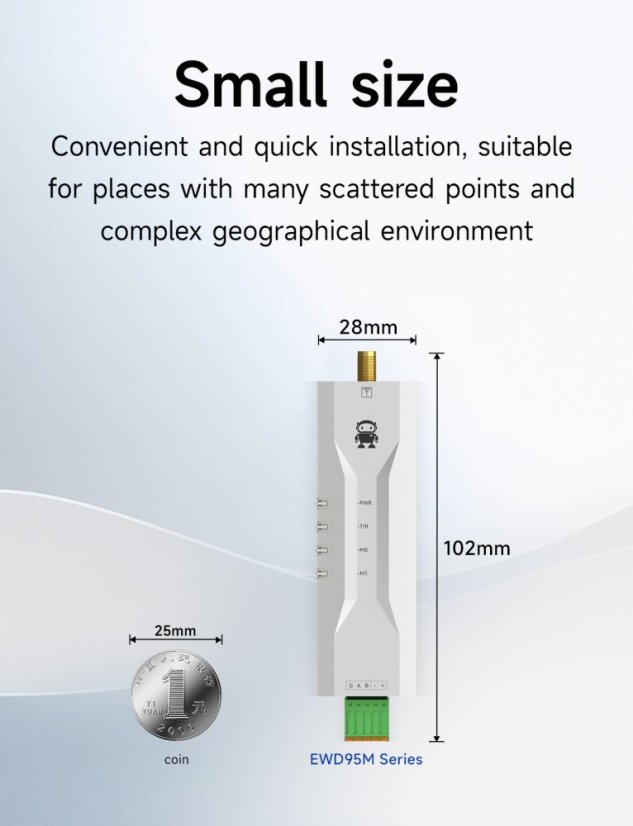

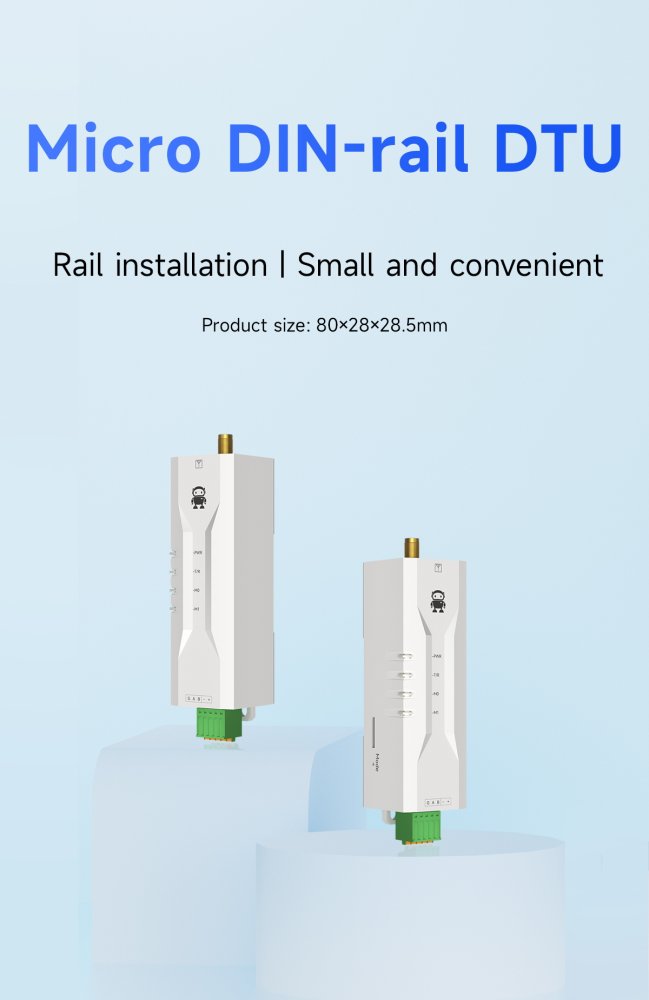

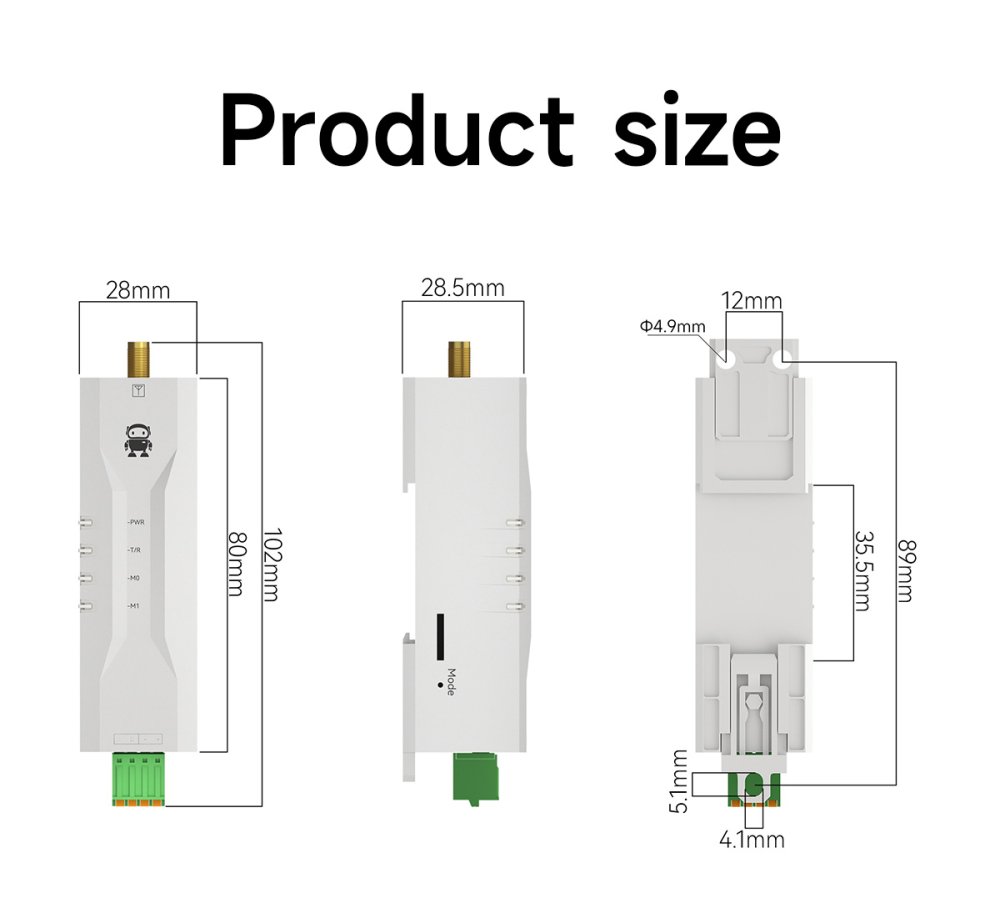

• Dimensions: 80 × 28 × 28.5 mm
• Weight: ~32 g (±2 g)
• Special Features:
  • EWD95M-400GL20(485): Standard three-proof coating

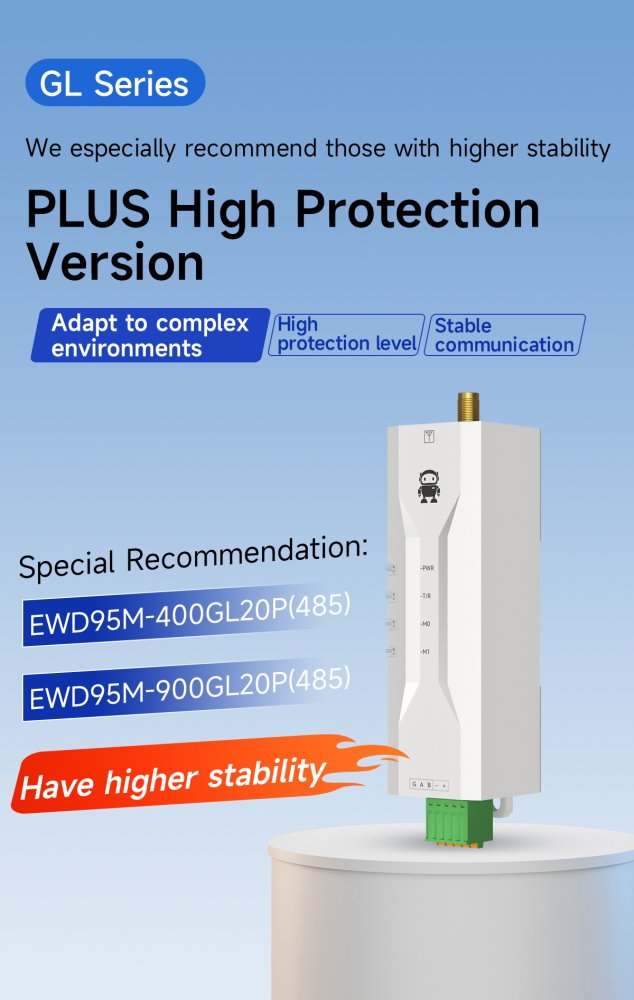

  • EWD95M-900GL20P(485): High protection isolation + three-proof coating
• Operating Temperature: -40°C to +85°C
• Antenna Interface: SMA

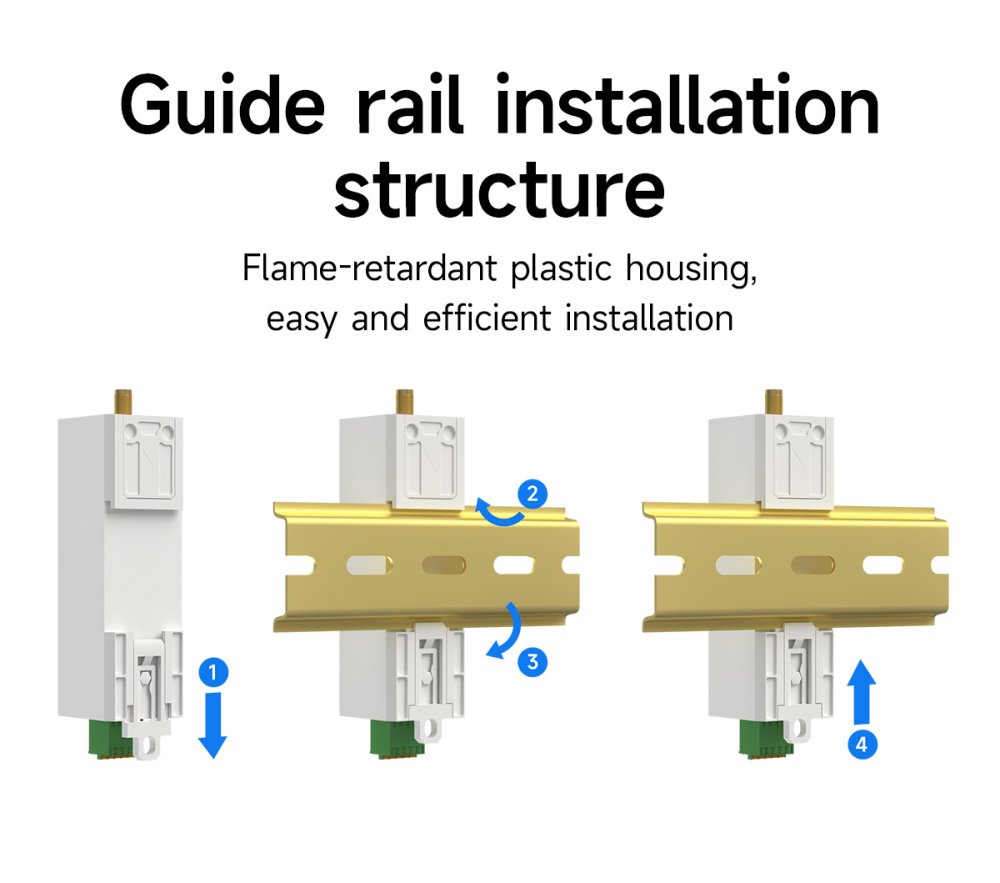

• Mounting: Micro DIN-rail

Applications: Industrial IoT, remote monitoring, smart metering, automation systems, environmental data collection, and other wireless data acquisition scenarios.
