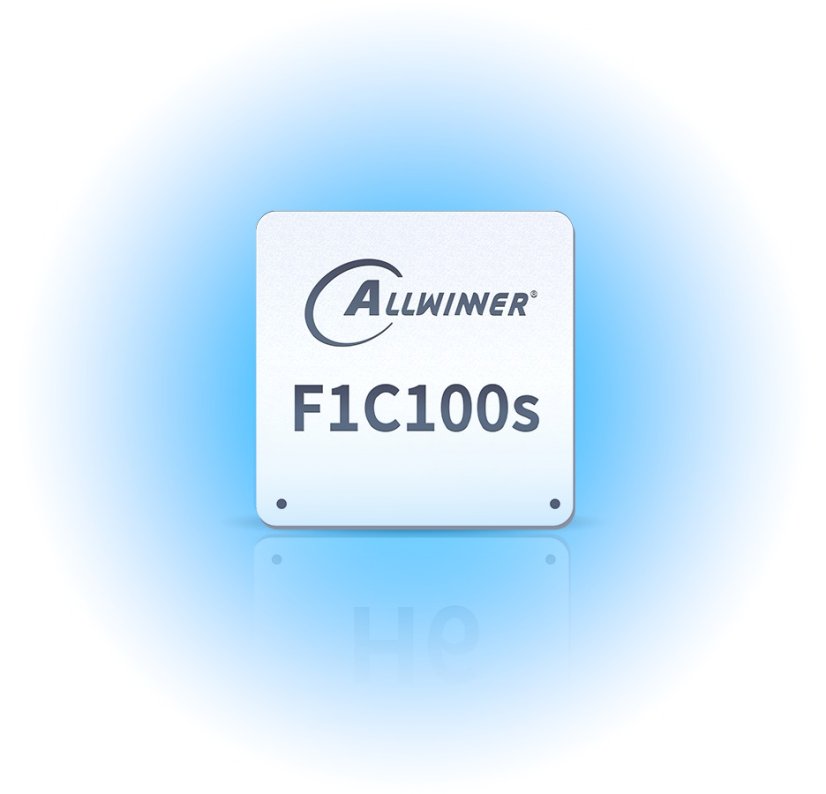

F1C100s SoC

The Allwinner F1C100s processor is based on the ARM9 CPU architecture with a high degree of functional integration. The F1C100s supports Full HD video playback, including H.264, H.263, MPEGV2, and iJ decoder. Its integrated audio codec and I2S/PCM interface provide users with an outstanding audio experience. The TV-IN interface allows for video input by connecting to devices such as cameras, while the TV-OUT interface enables video output by connecting to television devices.

Uses:

• Video playback
• Audio playback
• FM radio

Supports H.264 decoding 1920x1080@30fps
Supports MJPEG encoding 1280x720@30fps
Integrated 32MB DDR1, integrated audio codec
Low cost, low power consumption, easy development

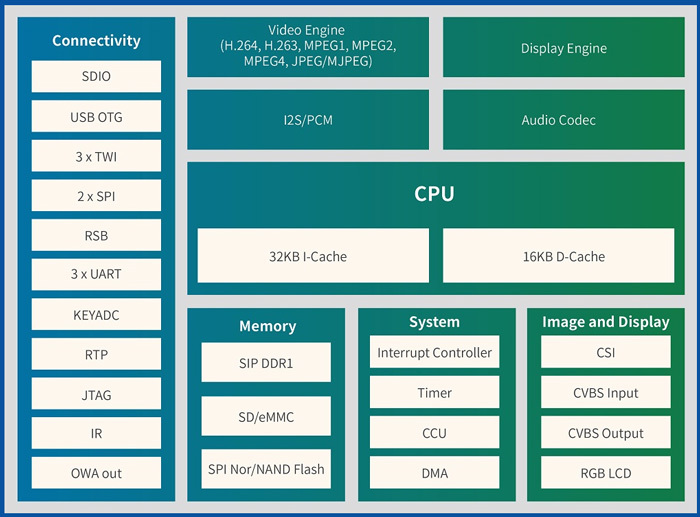

Specifications:

• CPU
  • ARM9 CPU architecture
  • 16KByte D-cache
  • 32KByte I-cache
• Memory
  • SIP 32MB DDR1
  • SD2.0/eMMC 4.41
• Video
  • H.264 1280x720@30fps decoding
  • MPEG1/2/4 1280x720@30fps decoding
  • MJPEG 1280x720@30fps encoding
  • JPEG encoding size up to 8192x8192
• Camera
  • Interface for 8-bit CMOS sensor
  • CCIR656 protocol for NTSC and PAL
• Audio
  • Integrated analog audio codec with two DAC channels and one ADC channel, maximum DAC sampling rate 192kHz and ADC 48kHz
  • One I2S/PCM interface
• Display
  • LCD RGB interface up to 1280x720@60fps
  • TV CVBS output, supports NTSC/PAL, with automatic insertion detection
• Connectivity
  • USB OTG, SDIO, IR, 3 x TWI, 2 x SPI, 3 x UART
• OS
  • Melis, Linux OS

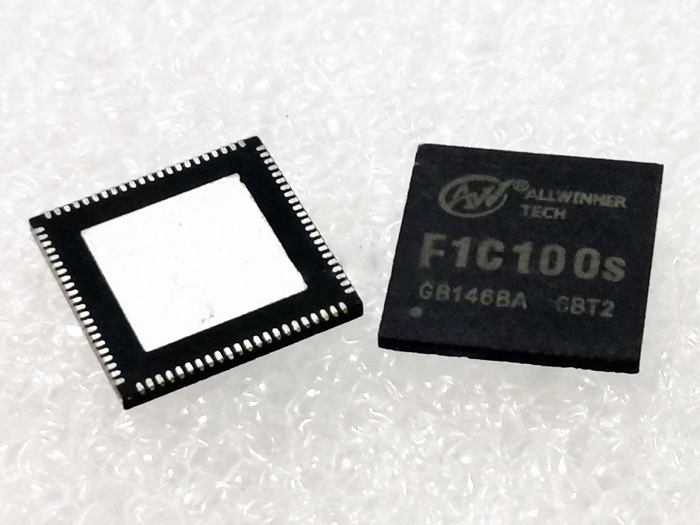

• Packaging
  • QFN88, 10mm x 10mm
• Process
  • 40nm

F1C100s Datasheet: https://linux-sunxi.org/images/b/ba/F1C100s_Datasheet_V1.0.pdf
