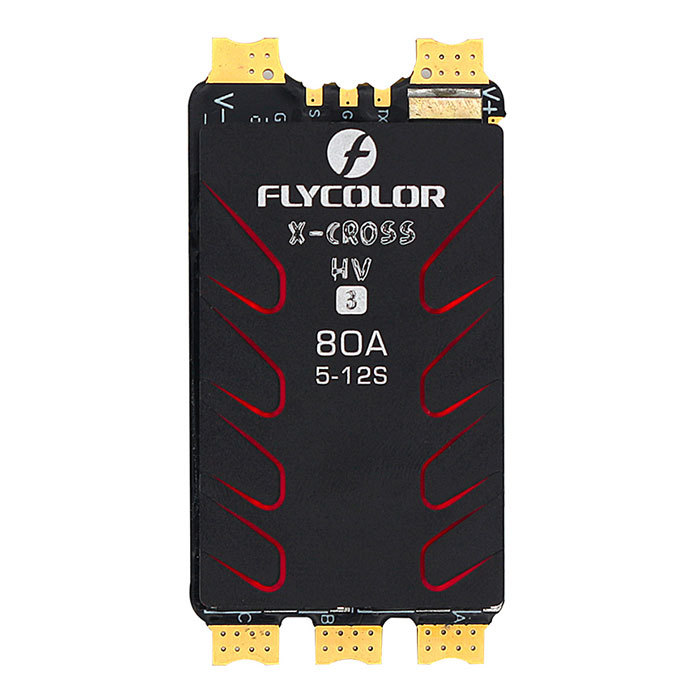

Flycolor X-Cross HV3 - ESC pro multirotory 12S

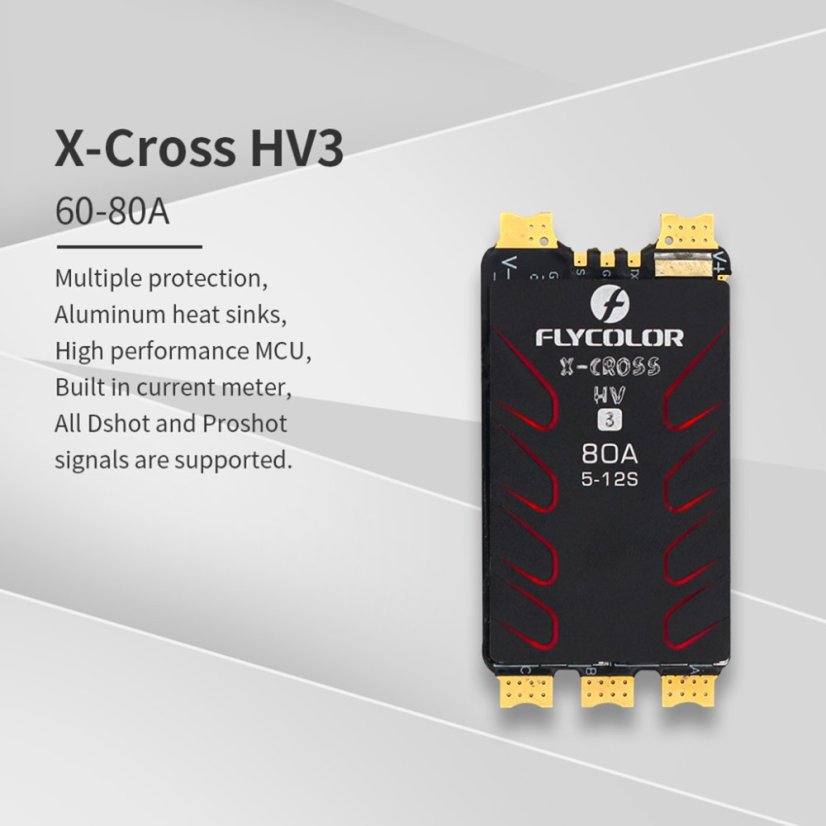

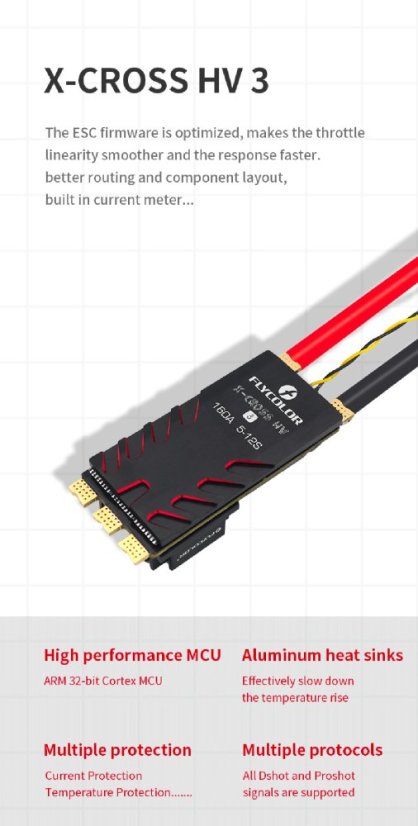

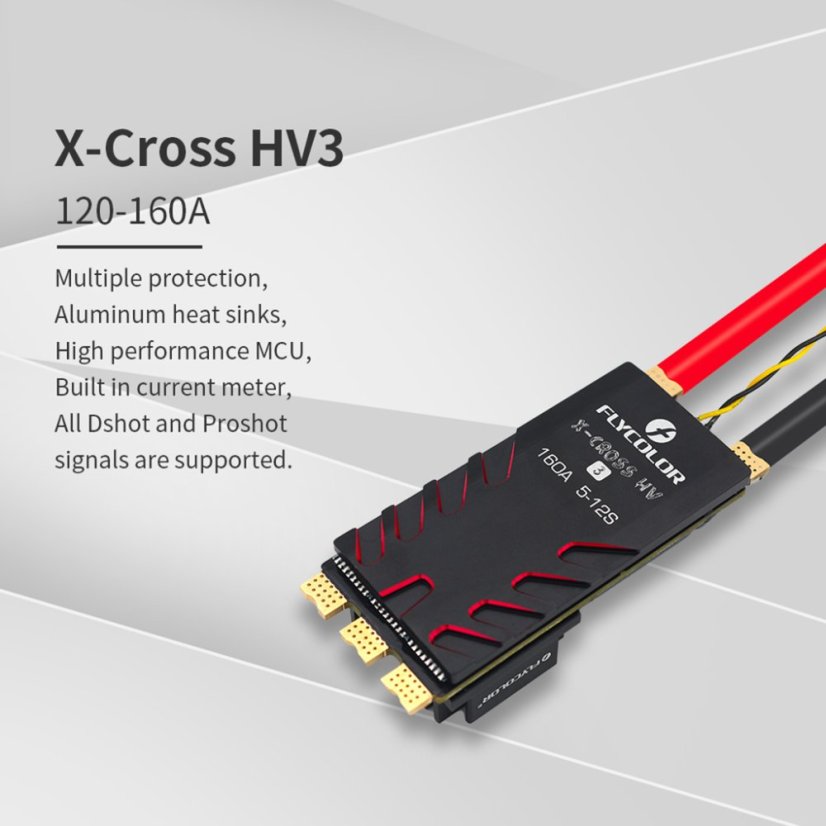

X-Cross HV3 ESC 12S: Ideal for High-Performance Multirotors

The FLYCOLOR X-Cross HV3 series is designed for 5-12S voltage and available in options of 60A, 80A, 120A, or 160A. This ESC is an excellent choice for anyone looking to achieve optimal performance for their multirotors. With an increased MCU core frequency of up to 64 MHz, it ensures outstanding response speed and a 25% performance improvement compared to previous models.

Key Features:

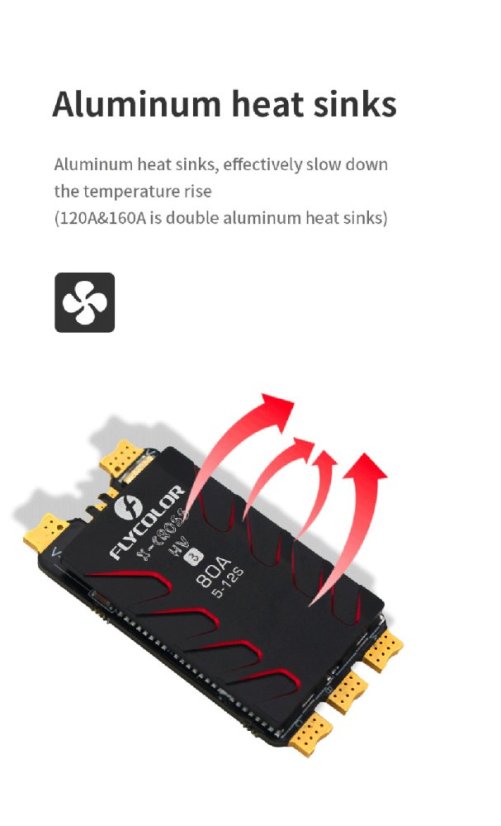

• Aluminum alloy heat sink for effective heat dissipation (double layer for 120A/160A).

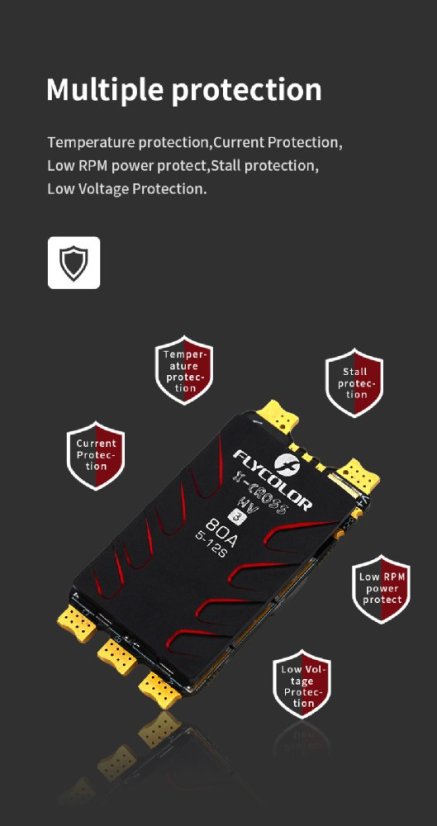

• Multi-layer safety protection: temperature, undervoltage, lock, power, and current protection.

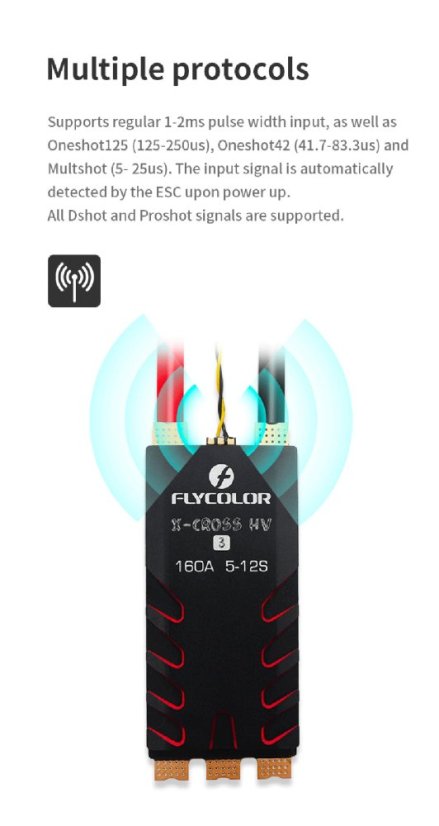

• Supports various signals: PWM (1-2 ms), Oneshot125, Oneshot42, Multshot, and all digital signals Dshot and Proshot.

Technical Specifications:

• Input Voltage: 5-12S LiPo
• Continuous Current: 5.0V / 6V / 7.4V (adjustable via jumper)
• Output Current: 60A/80A/120A/160A
• Instantaneous Current (10s): 80A/100A/150A/180A
• BEC: none
• Weight: 25.5g (60A/80A), 132g (120A/160A)
• Dimensions: 55x28x10mm (60A/80A), 82x34x21.1mm (120A/160A)

Package Contents:

1x Flycolor X-Cross HV3 ESC

Manufacturer's Page: Flycolor Official Page
