GPS Expansion Board for Omega2

GPS Expansion Board for Onion Omega2/+

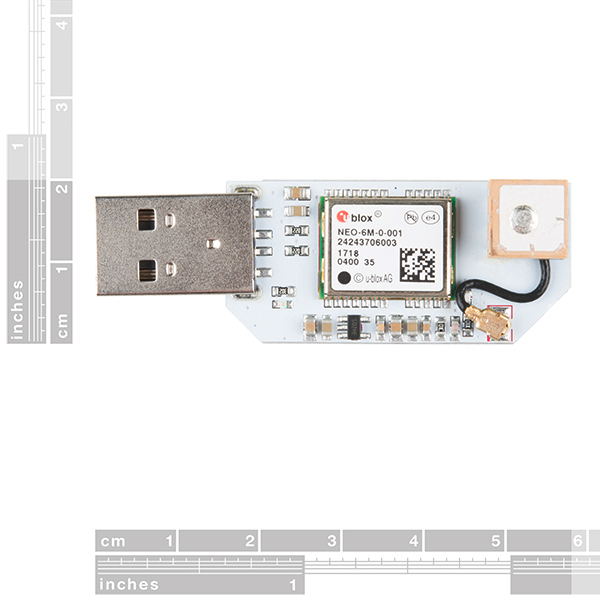

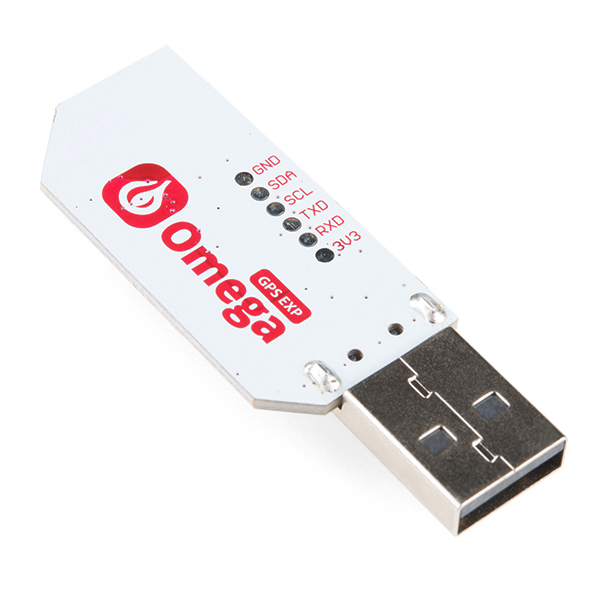

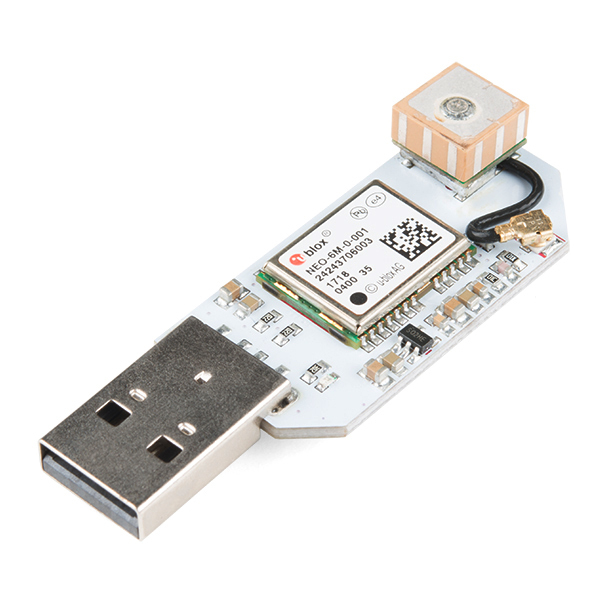

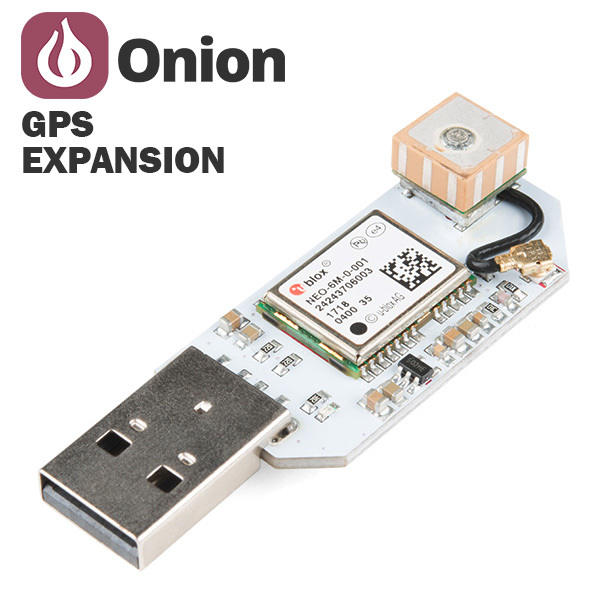

The GPS expansion board for Onion Omega is a USB-based expansion module that allows your Omega to determine its location using GPS as well as China's Beidou satellite navigation system. It features an integrated GPS antenna and a built-in u.FL connector for connecting your own antenna. It provides accuracy of up to 1.8 m, 66 acquisition channels, 22 tracking channels, and a sensitivity of -165 dBM. Update frequency is up to 10 Hz.

For the data sheet of the GPS unit, please find it here.

The GPS expansion board for Onion Omega is a USB-based extension that allows your Omega to determine its location using GPS and China's Beidou satellite navigation system. It includes an integrated GPS antenna and a built-in u.FL connector for connecting your own antenna.

Technical Details

• Accuracy: 1.8 m
• Acquisition Channels: 66
• Tracking Channels: 22
• Sensitivity: -165 dBM
• Update Frequency: 10 Hz

Links

• Overview of GPS Expansion Hardware
• Using the GPS Expansion
• Data Sheet of the GPS Unit
