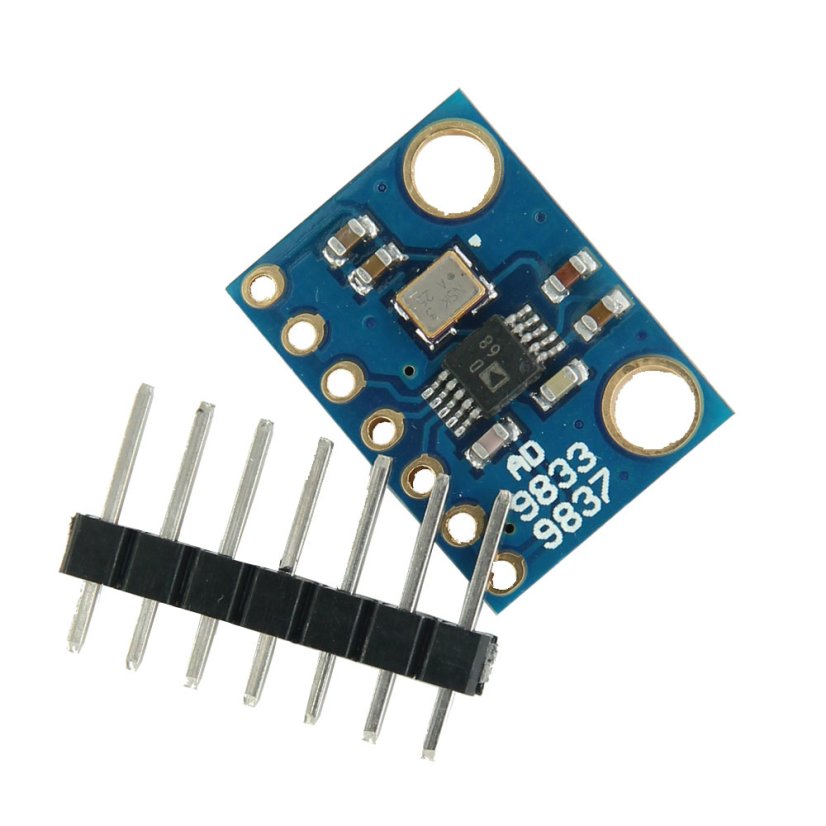

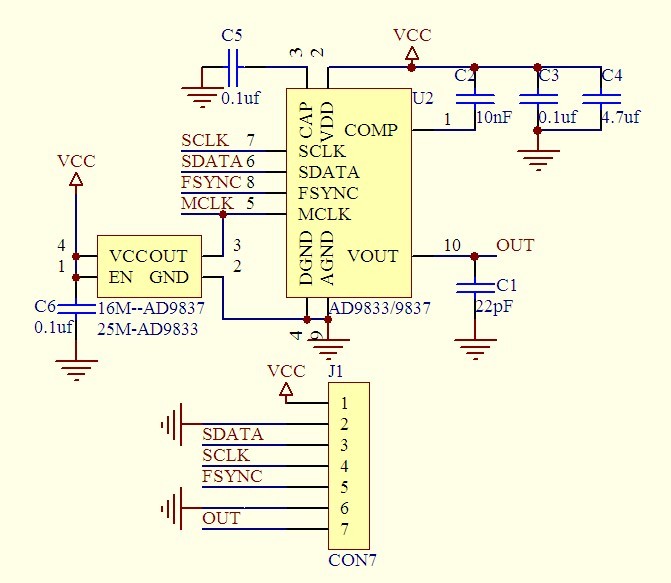

GY-9833 Signal Generator DDS Module

AD9833 Triangle Wave / Sine Wave / Square Wave Generator, DDS Signal Module

Module Features:

1. Operating voltage: 5V.
2. Operating temperature range: -40 to + 105 °C.
3. Built-in 25MHz (accuracy 50ppm) active crystal oscillator.
4. Integrated 100M high-speed amplifier with a low-pass filter function.
5. Two output signal channels, one original signal output VOUT, one five-fold amplified signal output PGA, output impedance of 50 Ohms.
6. Very small dimensions: 32mm x 32mm.
7. Amplitude modulation, frequency modulation, and waveform switching can be controlled by one chip microcontroller.

Description:

The AD9833 is a programmable waveform generator capable of generating sine, triangle, and square wave signals at frequencies from 0 to 12.5MHz. The waveform generator is widely used in various measurements, excitations, and determining time domain fields. Output frequency and phase can be set via software, which is easy to operate. When the main clock frequency is 25MHz, the accuracy is 0.1Hz, and when the main clock frequency is 1MHz, the accuracy can reach 0.004Hz. Data can be written via 3 serial interfaces.

Uses:

• Frequency excitation / waveform generation. Measurement of fluid and air flow.
• Sensitive usage - access, motion, fault detection.
• Linear loss, linear attenuation.
• Testing equipment and other devices.
• Scanning, clock generator.

Specifications:

• Model: GY-9833
• Digitally adjustable frequency and phase.
• 12.65 mW power consumption at 3 V.
• Output frequency range from 0 MHz to 12.5 MHz.
• 28-bit resolution: 0.1 Hz at 25 MHz reference clock.
• Sine, triangle, and square wave outputs.
• Voltage supply range: 2.3 V to 5.5 V.
• Does not require any external components.
• 3-wire SPI interface.
• Extended temperature range: from -40°C to +105°C.
• Shutdown capability.
• Packaged in 10 MSOP.

Suitable for use in the automotive industry.
