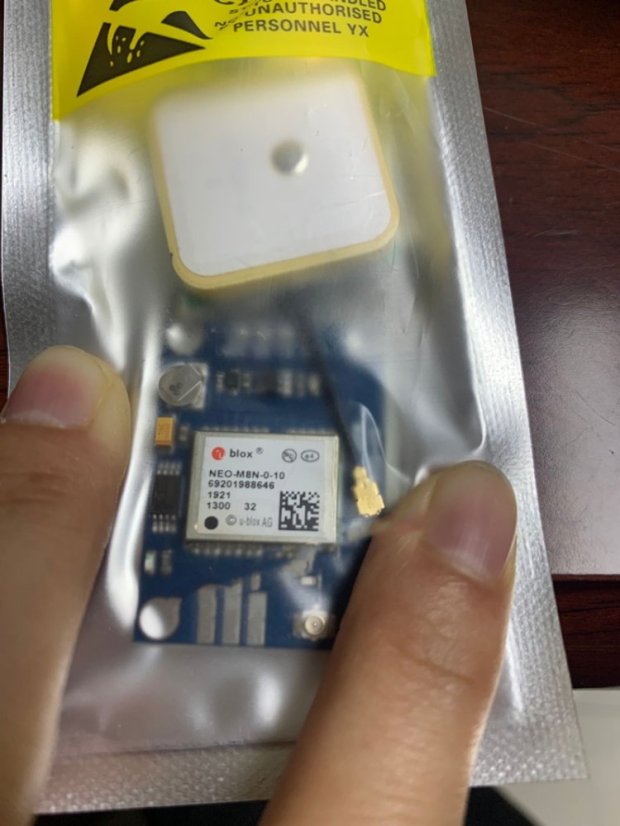

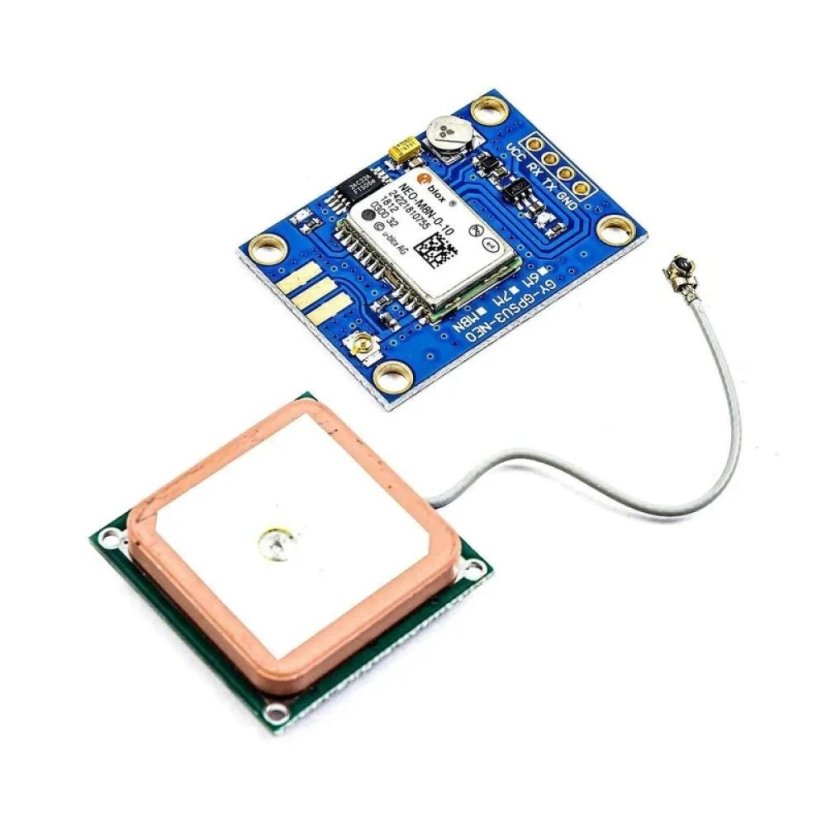

GY-GPSV3-NEO-M8N GPS Module with U-Blox Chip and Active Antenna

GY-GPSV3-NEO-M8N GPS Module with U-Blox Chip and Active Antenna

The GY-GPSV3-NEO-M8N is a high-performance GPS module based on the u-blox NEO-M8N chip. It offers fast satellite acquisition, accurate positioning, and supports multiple GNSS systems (GPS, GLONASS, Galileo, QZSS). Supplied with an active antenna for enhanced reception, it’s ideal for navigation, robotics, UAV, and IoT applications. Compatible with Arduino and other microcontrollers via UART or I2C.

Specifications:

• Chipset: u-blox NEO-M8N

• Interface: UART (default), I2C

• Supported GNSS: GPS, GLONASS, Galileo, QZSS

• Supply Voltage: 3.3V–5V

• Baud Rate: 9600 bps (default)

• Position Accuracy: ~2.5m CEP

• Update Rate: 1–10 Hz

• Antenna: Active external antenna included

• Backup Battery: Yes (RTC retention)

• Dimensions: ~25 × 35 mm (module)

How To: https://docs.cirkitdesigner.com/component/1832f018-95a5-4f85-97e0-8a4fdcc21aea/ublox-neo-m8n-gps-module
