Ham It Up Nano - Small HF Converter with Black Enclosure, TCXO, and Support for Powering by Bias Tee

The Ham It Up Nano is a well-portable RF converter (LF/MF/HF) designed for software-defined radio devices (e.g., from our NESDR series (RTL-SDR) or HackRF). It offers a wide frequency capacity from 100 kHz to 65 MHz, with a precision of 1 PPM and the option to power by bias tee!

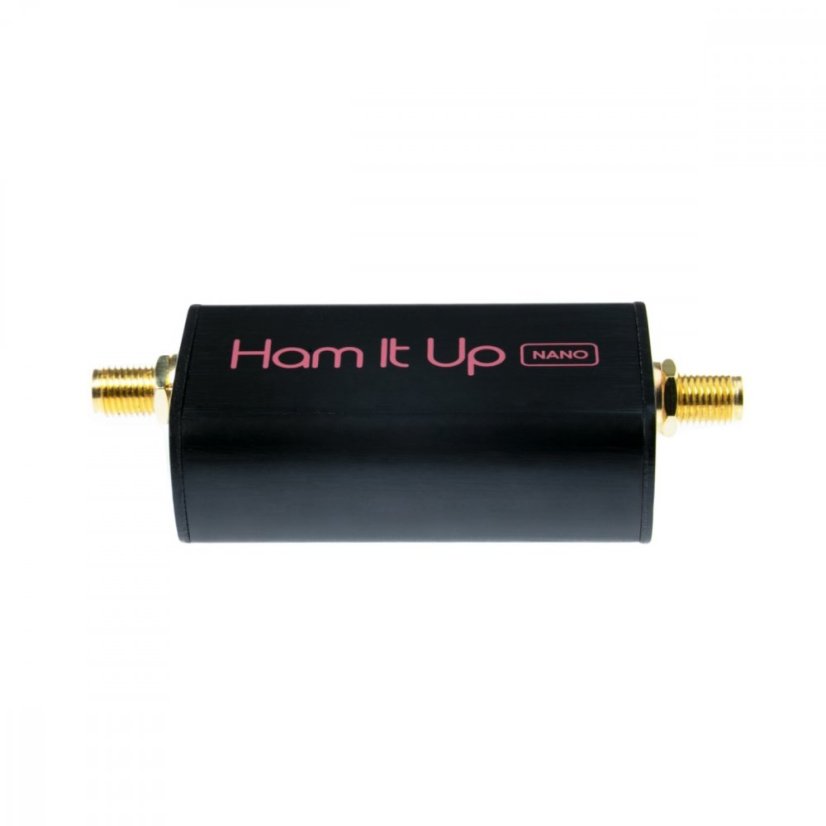

Ham It Up Nano is housed in a robust black aluminum casing and includes a "male SMA to male SMA" connector and a micro USB to DC connector adapter.

The Ham It Up Nano will also work as a panadapter for most radios and can be used for both receiving and transmitting.

The Ham It Up Nano is a high-frequency converter that allows you to extend the range of your favorite SDR or radios to a frequency of at least 100 kHz. It is compatible with any radio capable of operating on frequencies of 125-190 MHz (utilizing a frequency range of 100 kHz-65 MHz). It is installed in a durable black aluminum housing and includes a "male SMA to male SMA" connector and a micro USB to DC connector adapter.

It is important to note that for some SDRs, when powered externally via USB, the ESD protection diode of Ham It Up Nano may be activated. Ham It Up can, of course, still work with these SDRs, but you'll need to install a DC block between the converter and SDR. This can be very simple if you prefer a DIY solution, just use a quality low-distortion capacitor with RF path. If you want to use the solution we offer, we sell a high-quality SMA DC block.

Main Features:

• Small, lightweight module - only 2.0" x 1.2" x 0.75" (50 x 30 x 18 mm) and 1.6 oz (45 g)!

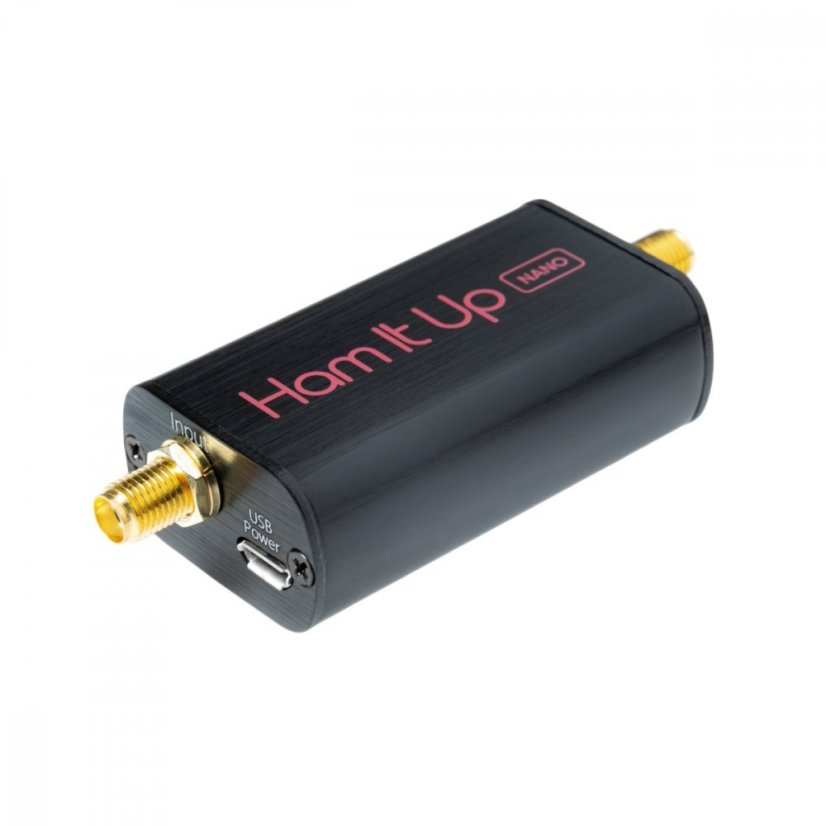

• 3 different power options: bias tee, micro USB, and DC connector
• Includes an internal 125MHz TCXO with low phase noise at 1 PPM accuracy for better sensitivity (unlike high-frequency RF bands, such as FM broadcasting)
• Double shielding against external RF interference (EMI) with an external aluminum enclosure plus internal EMI shielding
• Maximum input level +1dBm
• Includes 3 filters—input, output, and LO filters—delivered with very high-quality components for excellent sensitivity and selectivity
• ESD protection on both RF input and output protects your Ham It Up and SDR from stray static discharge
• Reverse voltage and short circuit protection on the USB power input safeguards your Ham It Up from damage
• Linear power regulator with ultra-low noise with noise voltage less than 10 µVRMS!

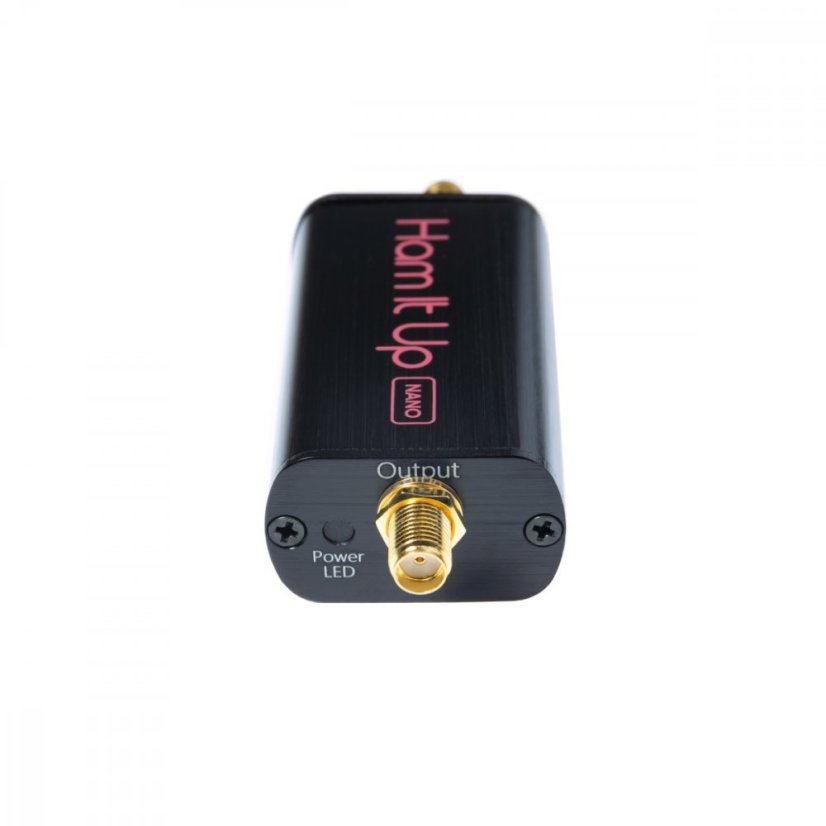

• Side LED power indicator
• Robust, right-angle 50 ohm SMA connectors used for both input and output
• High-quality PCB with ENIG finish
• Complete two-year warranty!

Operation:

• Connect your HF antenna to the RF input
• Connect your SDR or radio to the IF output
• Power the Ham It Up Nano via bias tee, micro USB, or DC connector (positive center, 4-5.5 V DC)
• Run your favorite SDR software. Tune to 125 MHz + your desired frequency (or set the software frequency offset to 125 MHz and tune it directly) and enjoy!

The package includes:

1x Ham It Up Nano

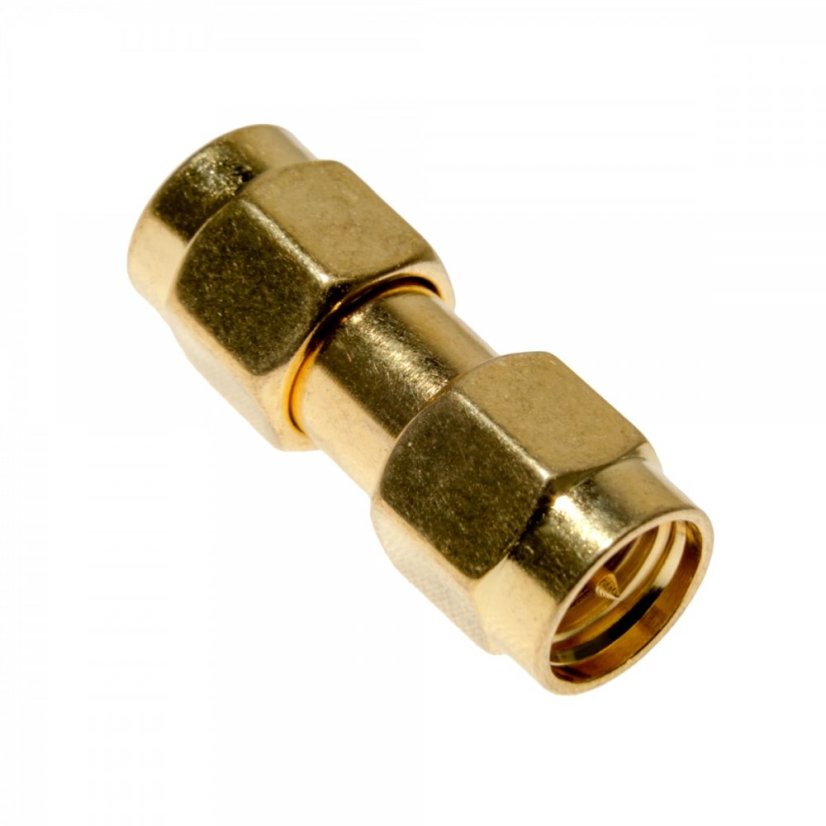

1x SMA connector
