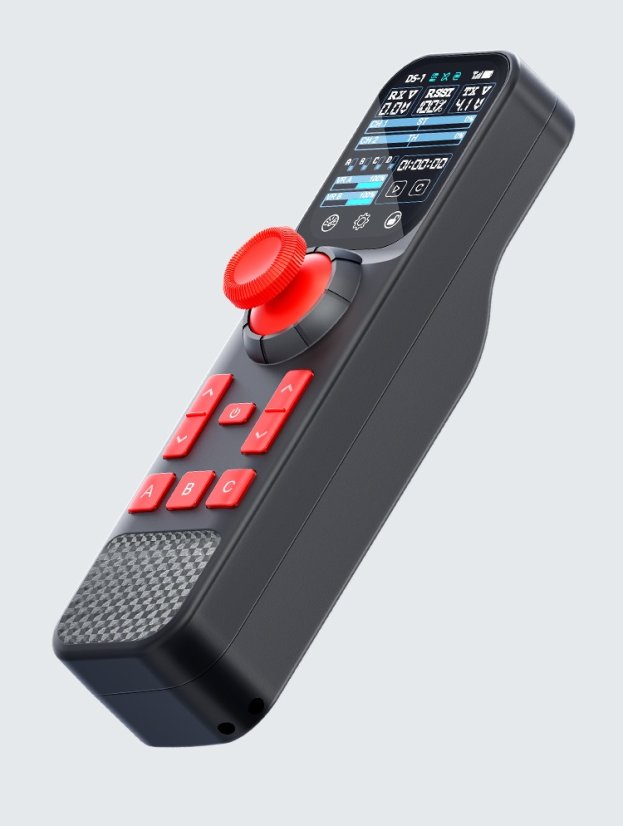

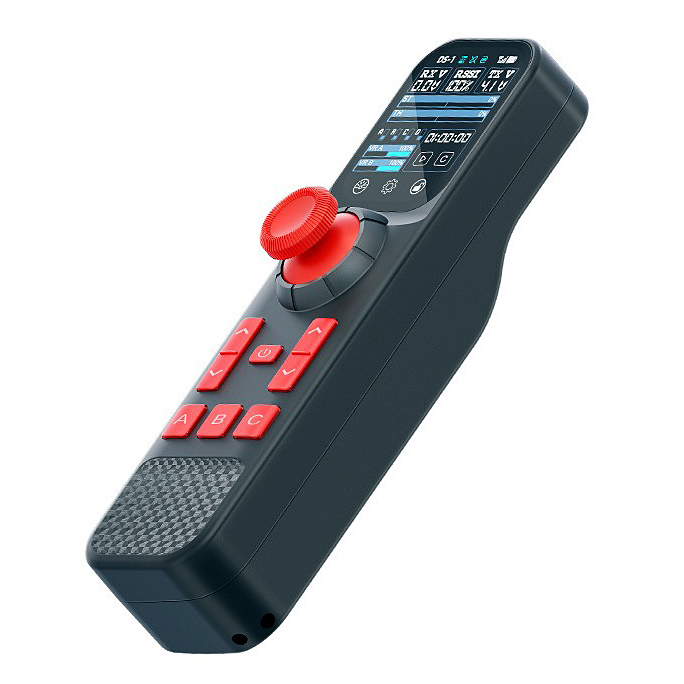

DS800 8CH 2.4GHz RC Transmitter with Touchscreen

DS800 8CH 2.4GHz RC Transmitter with Touchscreen

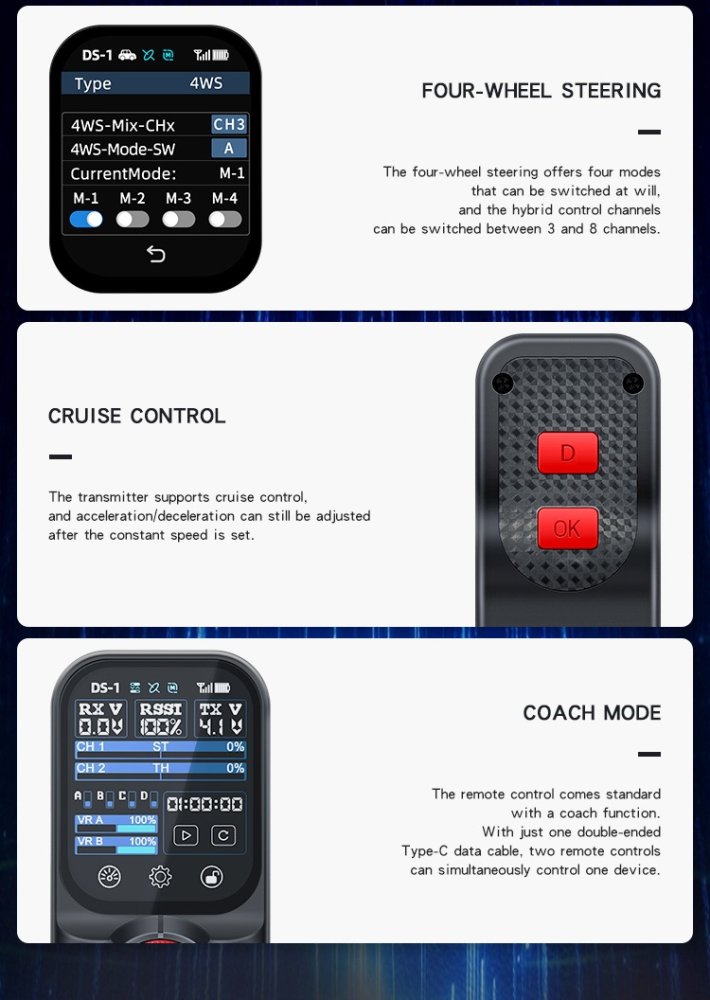

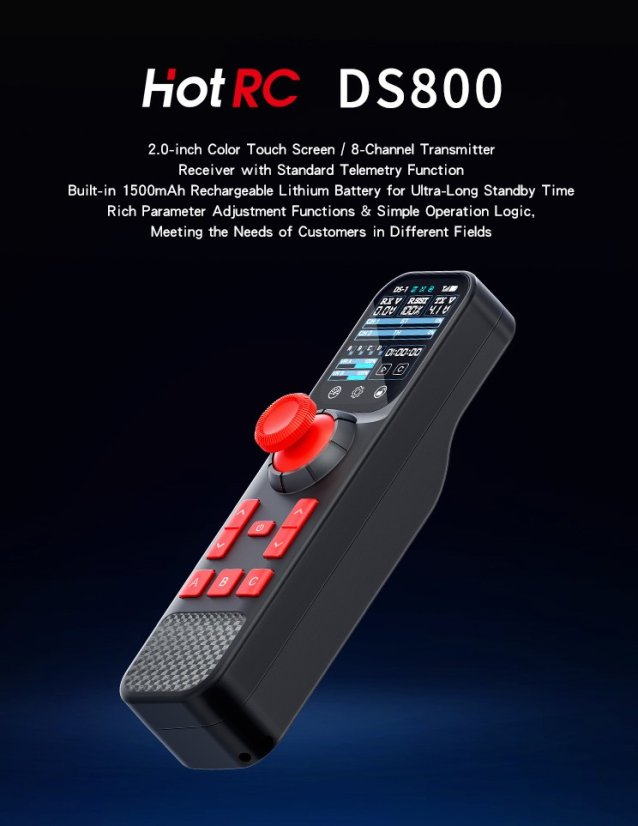

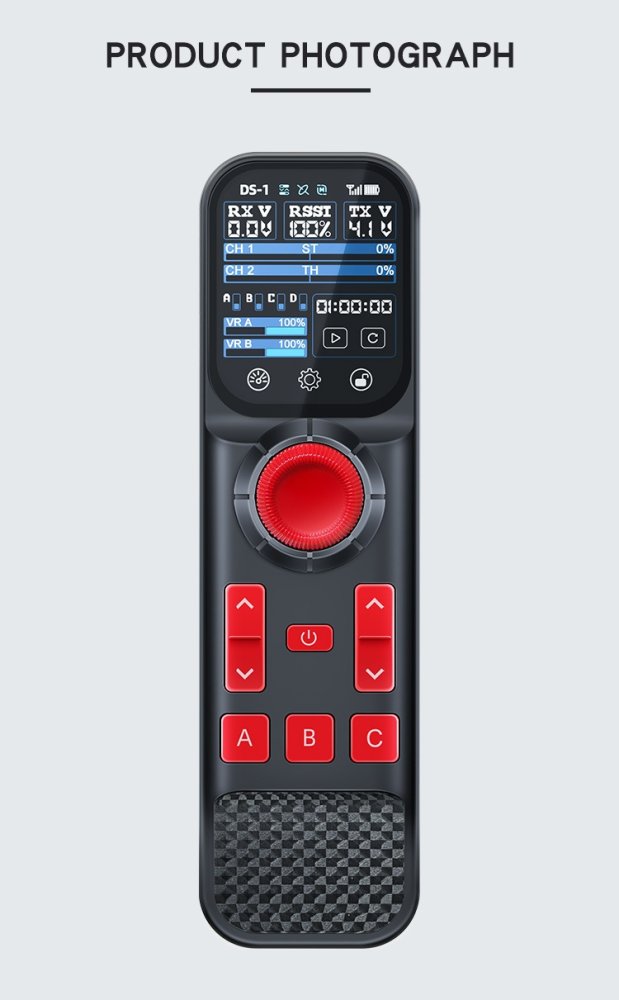

The HOTRC DS800 is a modern 2.4GHz 8-channel RC transmitter bundled with an F-08A 8-channel receiver. It features a 2.0-inch color touchscreen for intuitive configuration, built-in rechargeable 1500mAh LiPo battery, telemetry feedback (transmitter voltage and receiver signal strength), and advanced functions such as mixing control, cruise control, 4-wheel steering, coach/trainer mode, and programmable channel settings. Designed primarily for RC cars, boats (including trawler/fishing boats), and tanks, it offers reliable FHSS spread spectrum technology for stable, interference-resistant control with a range of approximately 300m on ground.

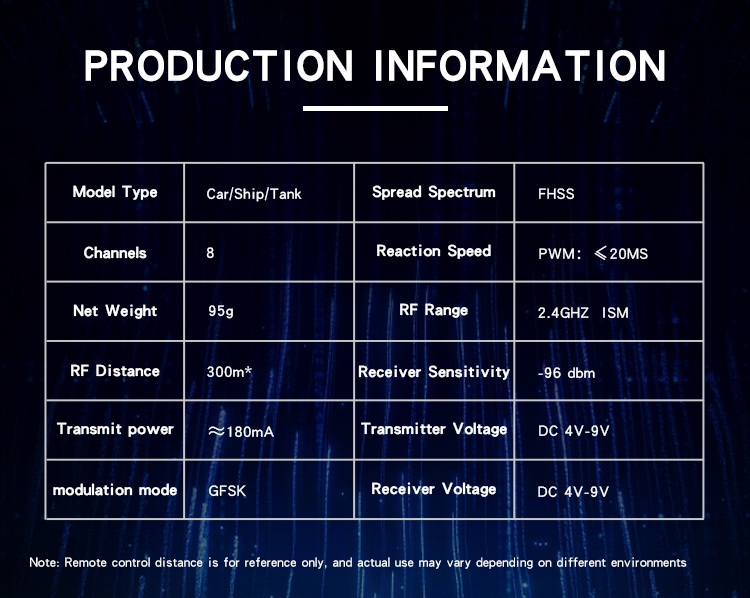

Transmitter Specifications (DS-800)

• Channels: 8
• Frequency: 2.4GHz ISM band (FHSS spread spectrum)
• Modulation: GFSK

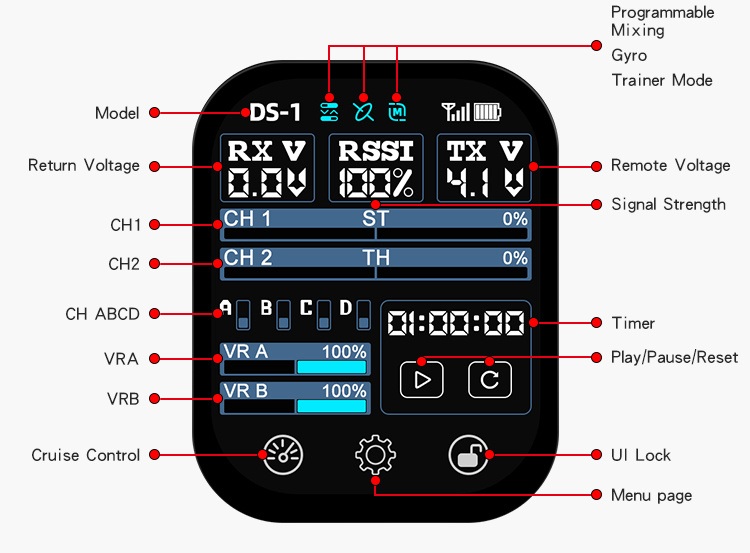

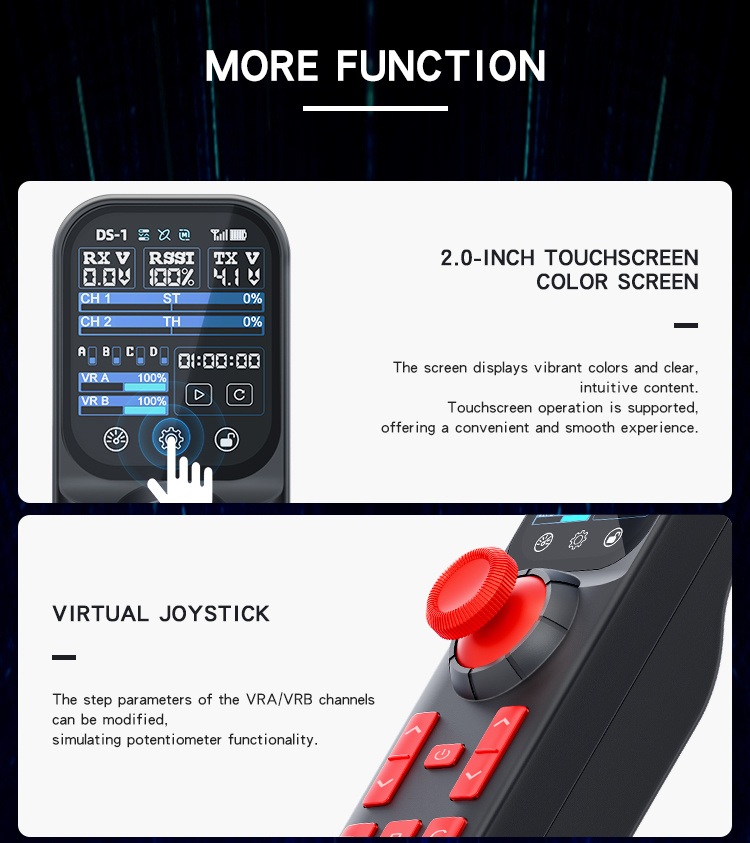

• Screen: 2.0-inch color touchscreen LCD
• RF Power: ~180mW (higher power for improved range)
• Resolution: 4096
• Response Time: PWM <20ms
• Range: ~300m (ground), up to ~800m (air, depending on conditions)
• Voltage: DC 4-9V

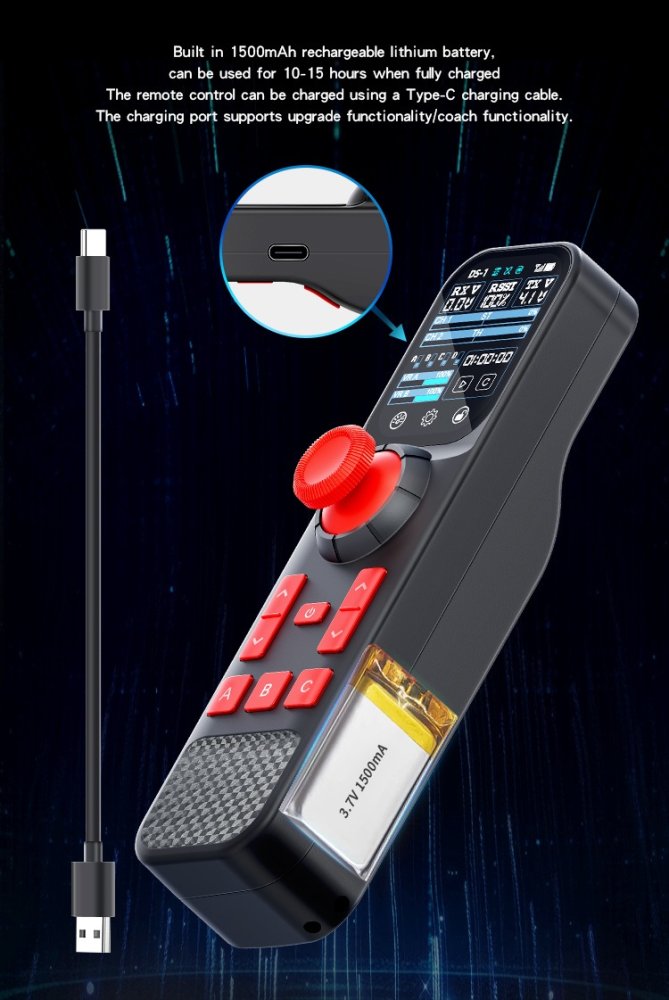

• Battery: Built-in 1500mAh 3.7V 1S LiPo (rechargeable via USB-C)

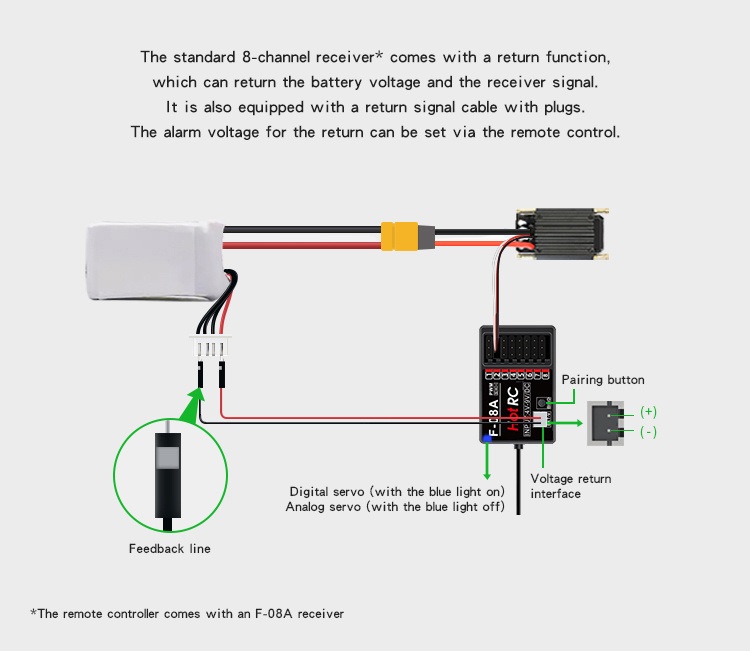

• Telemetry: Transmitter voltage and receiver signal
• Dimensions (approx.): 141.3mm (L) × 39.5mm (W) × 42.5mm (H)
• Weight (approx.): 97g

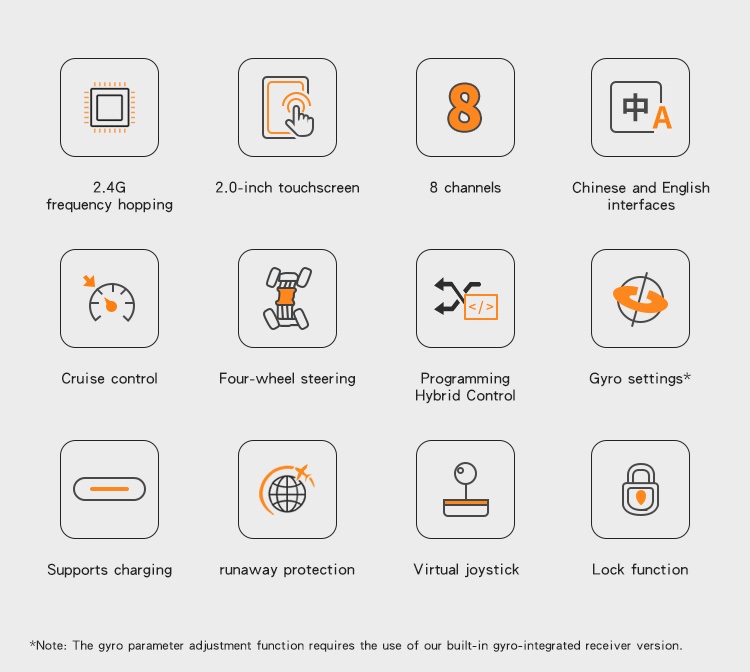

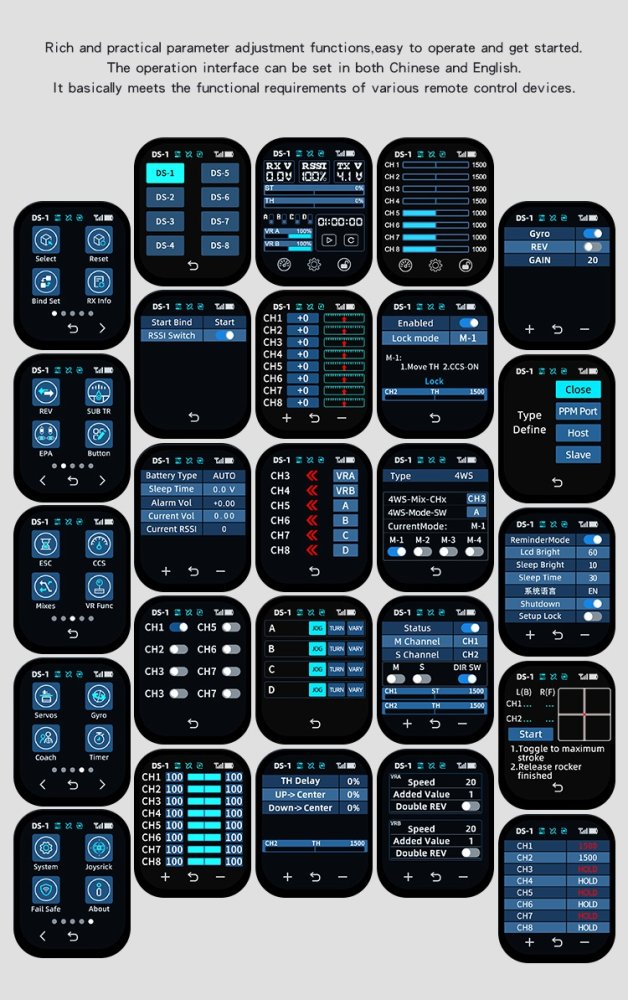

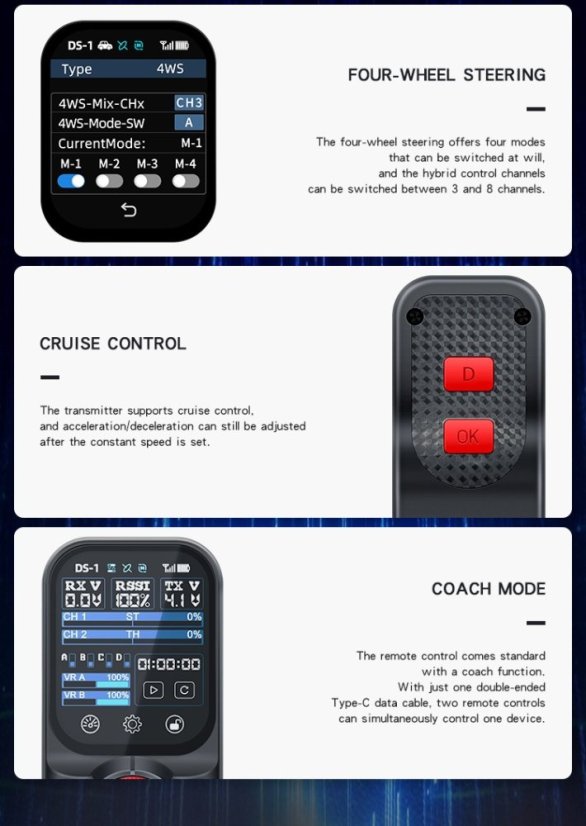

• Key Features: Channel reverse, endpoint adjustment (travel), trim, dual-rate/expo, hybrid/mixing controls (e.g., tank steering), programmable buttons, stopwatch/timer, voltage alarm, coach function, model memory (up to 8 configurations), automatic shutdown, screen lock
• Applications: RC cars, boats, tanks, and similar models

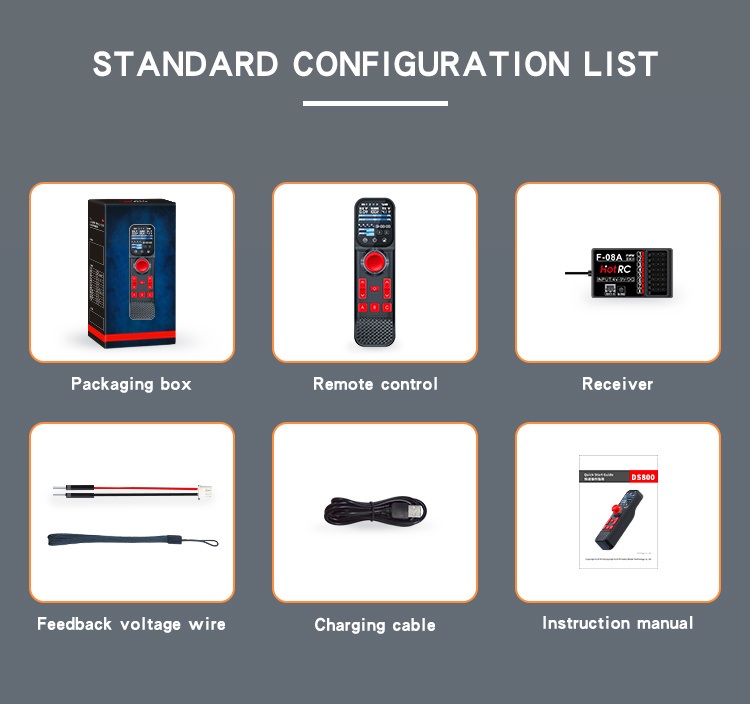

Package contents:
