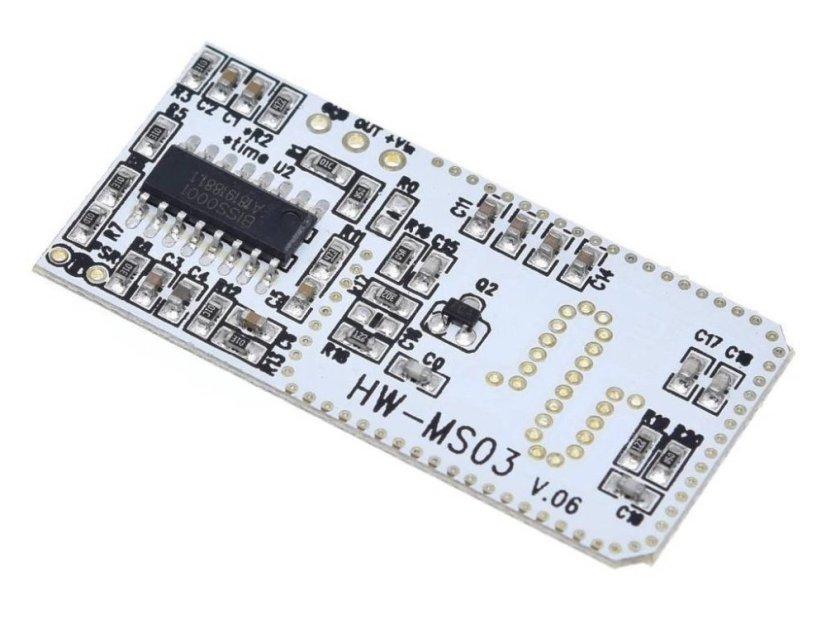

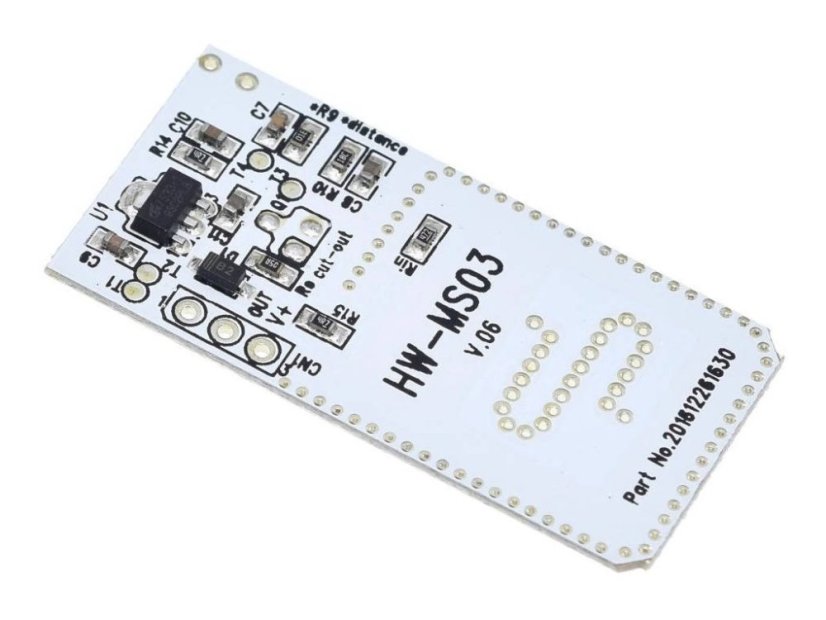

HW-MS03 Motion Detector - Microwave Doppler Radar

HW-MS03 Motion Detector, Microwave Doppler Radar

Utilizes Doppler radar technology to detect movement. Signals can pass through doors, glass, and thin walls. This sensor can control another product.Microwave planar antenna that receives echoes.

Specifications:

• Model: HW-MS03 V.06
• Detection Range: approximately 10m (32.8 feet)
• Detection Angle: 180°
• Power Supply: 3.7-24V DC
• Current Consumption: 5-6mA
• Transmitting Power:
• Output Signal: 3.3V / <0.1A
• Delay Time: approximately 2s (R2 = 10k) - may vary depending on the resistor value of R2
• Dimensions: 40x20x3mm (1.57 x 0.79 x 0.12 in)

How to use (ENG): https://tutorials.probots.co.in/microwave-radar-motion-sensor-hw-ms03/
