HX-3S-01 BMS 3S 12V 10A - Protection Module for Li-Ion Batteries

HX-3S-01 BMS 3-Cell 12V 10A Li-Ion Battery Protection/Charging Module

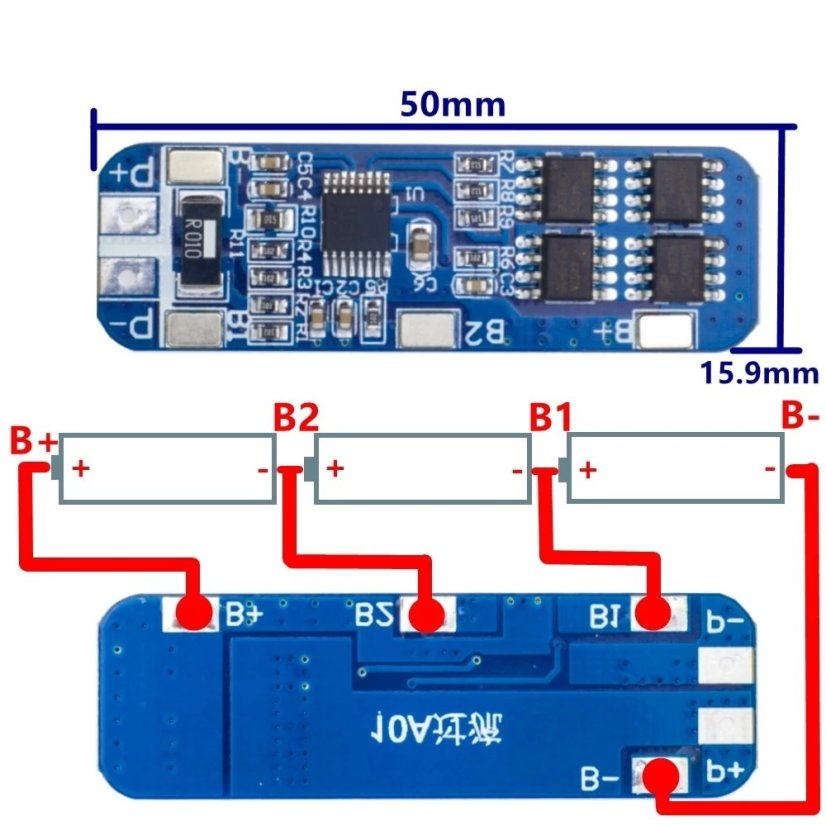

Protection and charging module (BMS) for three Li-Ion cells with individual cell monitoring. Suitable for nominal voltage of lithium batteries: 3.6V, 3.7V (including 18650, 26650).


Technical Specifications:

• Model: HX-3S-01
• Overcharge detection voltage: 4.25-4.35V ± 0.05V
• Over-discharge detection voltage: 2.3-3.0V ± 0.05V
• Maximum operating current: 5-8A
• Maximum instantaneous current: 9-10A
• Quiescent current: < 6uA
• Internal resistance:

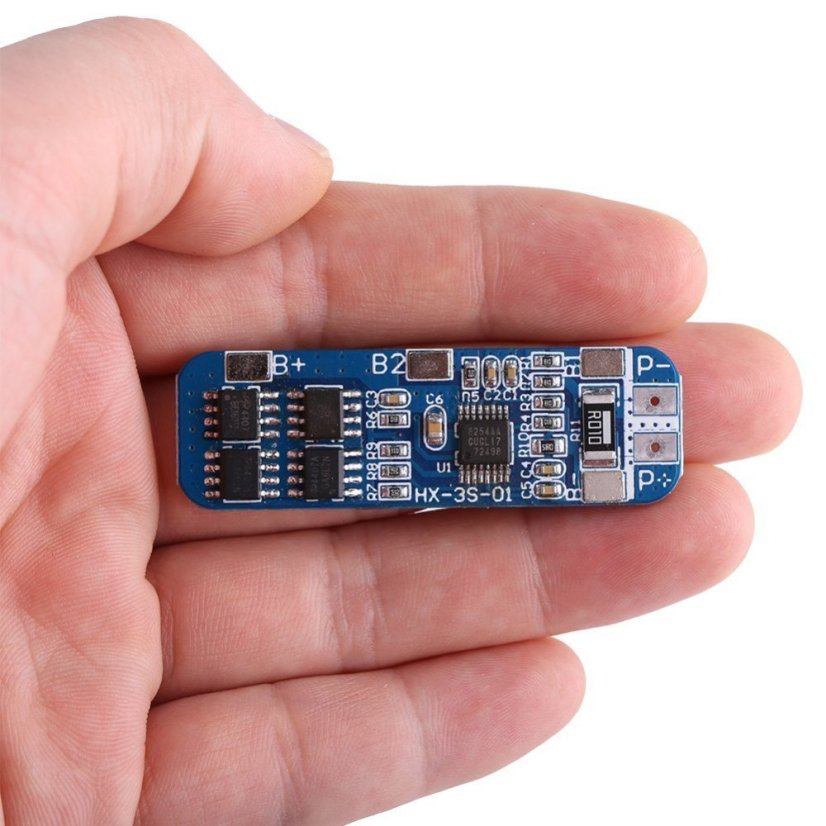

• Dimensions: 50x16x1.0mm
• Weight: 4.3g
• Operating temperature: -40---+50℃
• Storage temperature: -40-- +80°C
• Lifetime: >30,000 hours
• Short-circuit protection: can be protected, with automatic recovery delay.

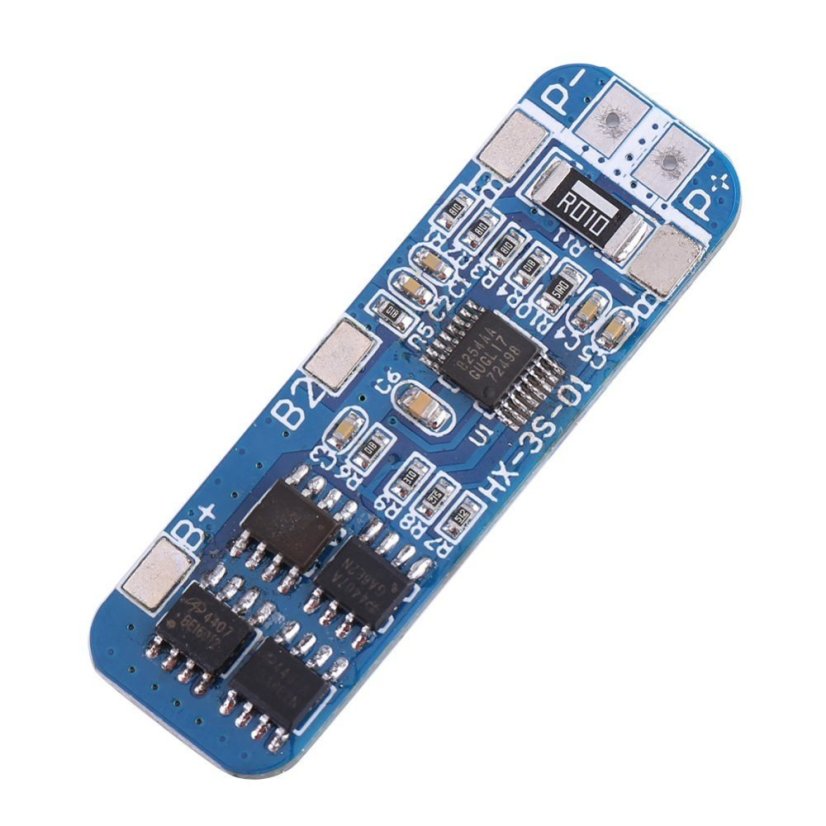

• Components include: Seiko S-8254AA protection chip and original FDS 4435A*4
