HXYP-6S-CW15 6S 24V 14A BMS

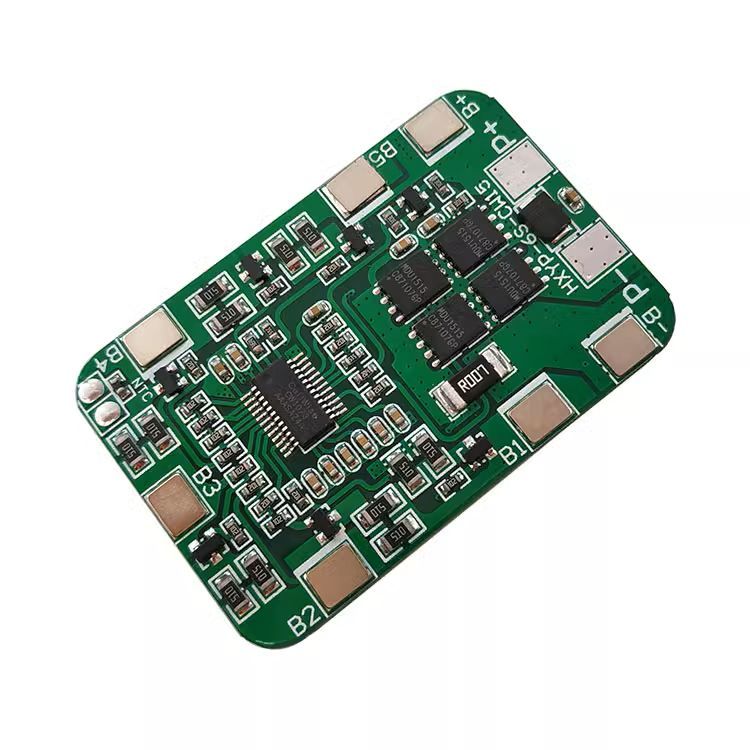

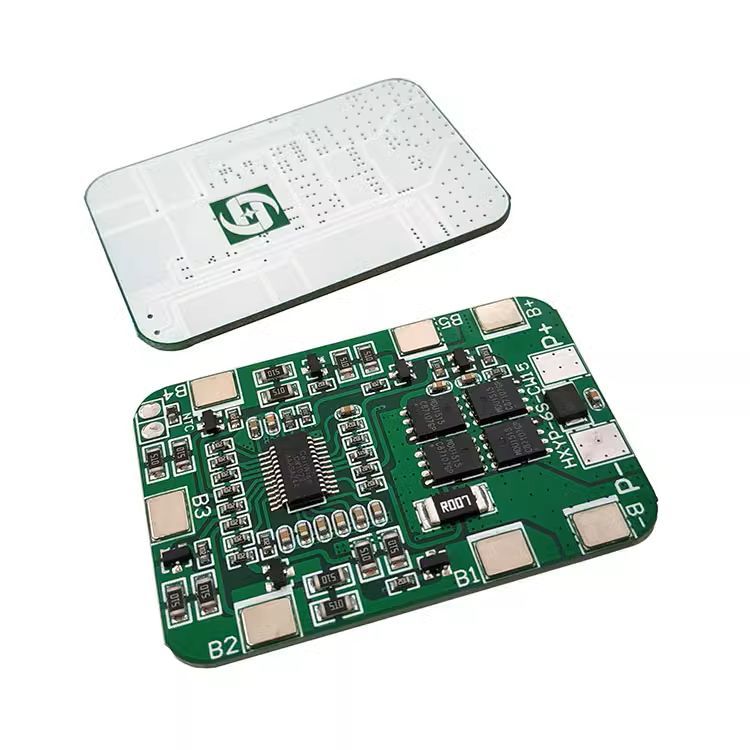

HXYP-6S-CW15 BMS 6-Cell 24V 14A Li-Ion Battery Protection Charging/Discharging Module

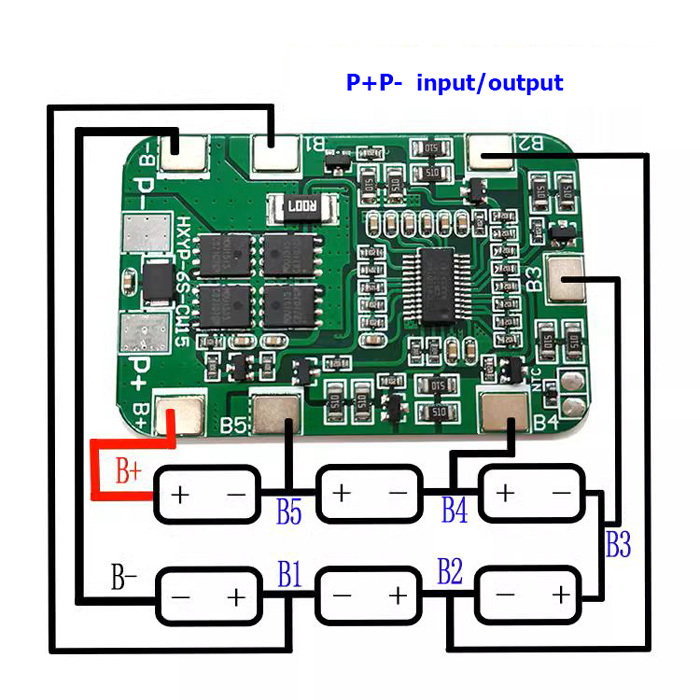

This battery management system (BMS) is designed for 6 Li-Ion cells with individual cell monitoring. Suitable for nominal voltages of lithium batteries 3.6V, 3.7V (including 18650, 26650), this module guarantees safe charging and discharging during operation.


Technical Specifications:

• Model: HXYP-6S-CW15
• Charging Voltage: 25.2V-26V
• Continuous Discharge Current: 14A±1A
• Maximum Discharge Current: 20A±1A
• Overcharge Voltage (per cell): 4.25V±0.05V
• Over-discharge Voltage (per cell): 2.7±0.05V
• Static Current: 30uA
• Balancing Current: 56mA
• Over-temperature Protection: -10℃~+70℃
• Weight: 6 g

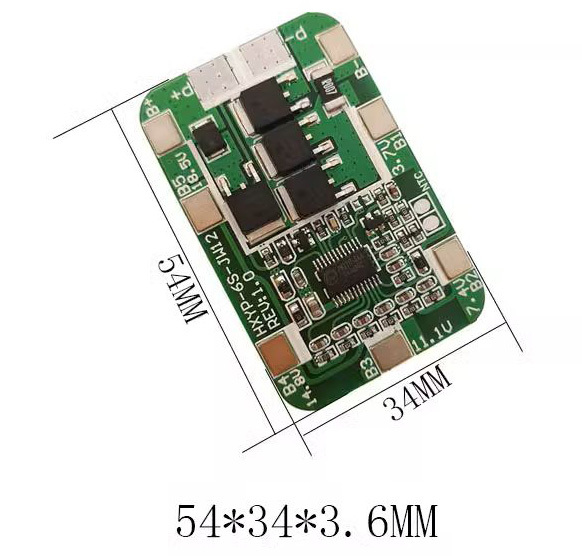

• Dimensions: 34 x 53.5 x 3.0 mm
