HXYP-6S-JW12 BMS 6-cell module for Li-Ion 24V 14A

HXYP-6S-JW12 BMS 6-Cell 24V 14A Li-Ion Battery Protection/Charging Module

A protective and charging module (BMS) for 6 Li-Ion cells, monitoring each cell individually. Suitable for nominal lithium battery voltages of 3.6V, 3.7V (including 18650, 26650).

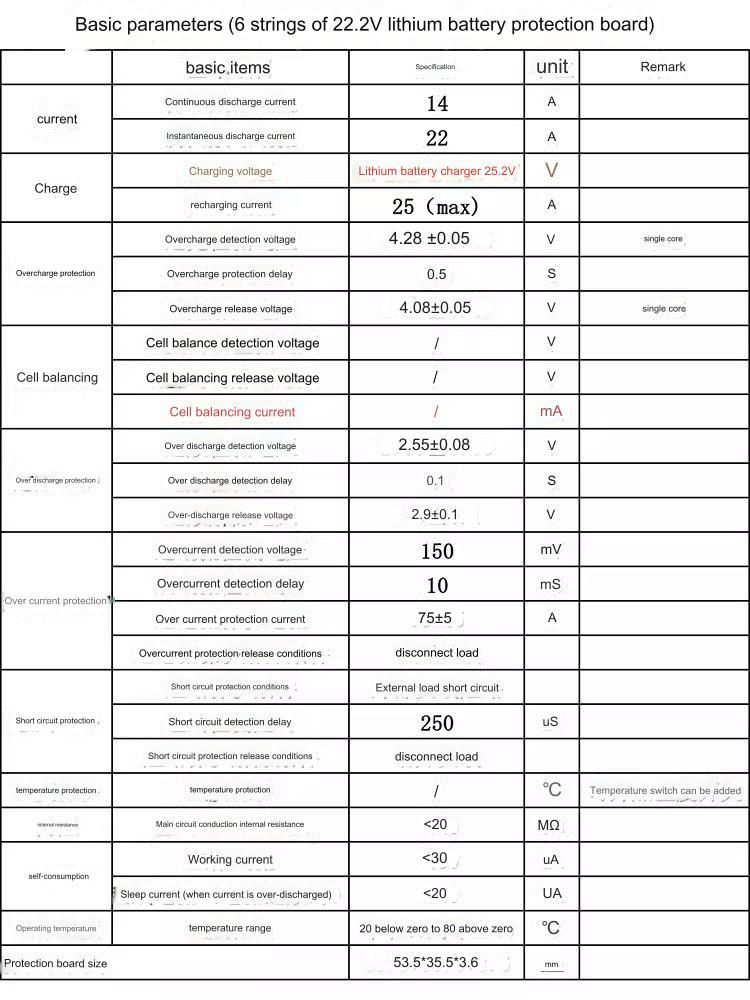

Technical Specifications:

• Model: HXYP-6S-JW12
• Charging Voltage: 25V
• Continuous Discharge Current: 14A
• Maximum Discharge Current: 22A
• Overcharge Voltage (per cell): 4.28V±0.05V
• Overdischarge Voltage (per cell): 2.55±0.08V
• Static Current: 30uA
• Balancing Current: 56mA
• Overheat Protection: -10℃~+70℃
• Weight: 7 g
• Dimensions: 35 x 53.5 x 3.6 mm

Note:

Calculation for the upper limit of operational overcurrent: battery 1C, capacity 2000 equals:
2Ah*1=2A upper limit operational current.
3C battery, capacity 2000 equals
2Ah*3=6A upper limit operational current.
For products with current higher than 3A, the battery discharge rate must exceed 3C.
If the battery heats up during use, it signifies that the battery rate is not suitable for the application. In this case,
it should not be used for extended periods, otherwise the battery may be damaged quickly.
