iBox-3046 - Industrial Barebone Computer with Intel Core i5-8260U and 4 LAN Ports

iBox-3046, Intel Core i5-8260U, 4 LAN, Barebone, Fanless, Industrial Computer

The iBox-3046 features an Intel Core i5-8260U CPU with 6MB Cache, operating at 3.9 GHz. This compact, fanless PC is housed in an aluminum chassis, making it ideal for small computing systems such as routers, POS terminals, displays, controllers, and data collection devices.

• Durable and Robust Design: The iBox-3046 sports an aluminum alloy chassis, ensuring a sturdy and long-lasting build suitable for industrial environments.
  High Computing Performance: This fanless industrial computer is available with various processor options, including Intel Core i5-8265U and i7-8565U, delivering exceptional computing power and efficiency.
• Multiple Connectivity Interfaces: With 4x Intel I211-AT 1000M LAN ports, 4x USB 3.0 ports, and support for VGA and HDMI displays, this computer offers extensive connectivity options for diverse applications.
  Flexible Storage Options: The iBox-3046 includes 1x M.2 2280 slot and 1x 2.5" HDD bay, supporting RAID 0/1, allowing users to customize their storage configuration according to specific needs.
• Wide Input Voltage Range: The DC-in power supply supports a broad voltage range from 9V to 36V, enabling use in various industrial settings with differing power requirements.

Specifications:

• Model: iBox-3046
• Intel Core i5-8260U (6MB Cache, 3.9 GHz) AES Instructions
• Memory: 1x DDR4 2133/2400 SODIMM RAM (up to 32GB), not included
• BIOS: AMI EFI BIOS (legacy mode, CSM)
• Hard Drive: 1*M.2 2280 slot for SATA SSD disc (does not support NVMe), 1*2.5inches HDD/SSD, supports RAID 0/1 (not included)
• Integrated VGA Intel® UHD Graphics
• 4 x GbE RJ45 Intel i210-AT/i211-AT 1000 LAN
• 4x USB 3.0 ports
• Wireless Connectivity: No, 1x mSATA slot for WiFi card.
• Bluetooth: No
• 1x SIM Card Slot
• Speaker
• 1x HDMI
• 2 x DB9 COM
• OS: No OS, supports Windows 8/10/11, Linux, Pfsense
• Additional Features: Auto power on, Timing boot, Wake on LAN, PXEboot, Watchdog (0–255 level)
• Power supply 12V/3A via external adapter, power consumption 15W
• Operating Temperature: -20° to 85°C in dry (non-condensing) environment, otherwise 0° to 60°C

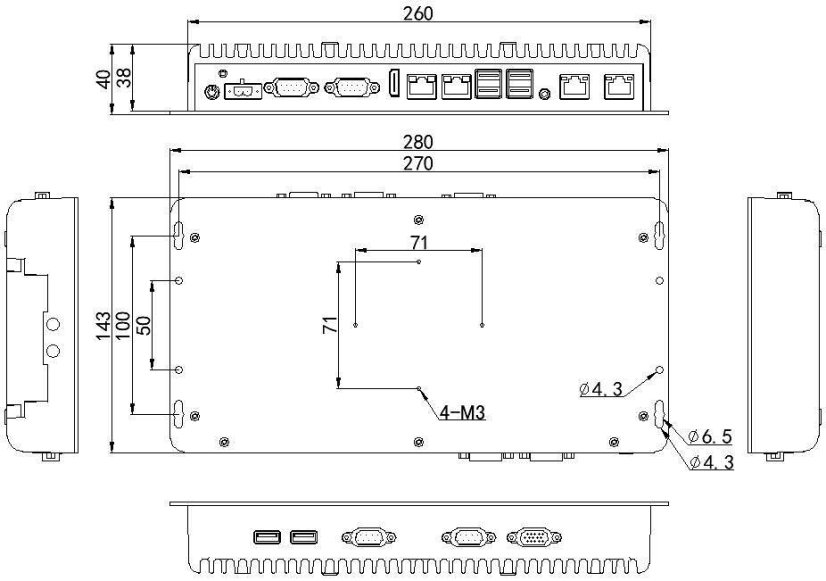

• Dimensions: 280 x 143 x 40 mm (11 x 5.6 x 1.6 inches)
• Weight: 1.8 kg (3.97 lbs)

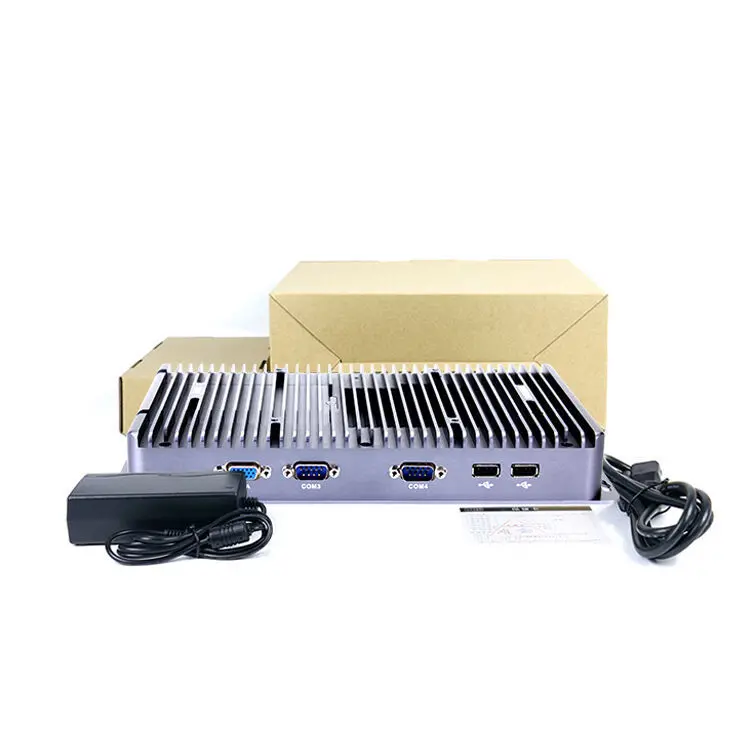

Packaging Includes:

• 1x Computer
• 1x 12V/2A Power Supply
