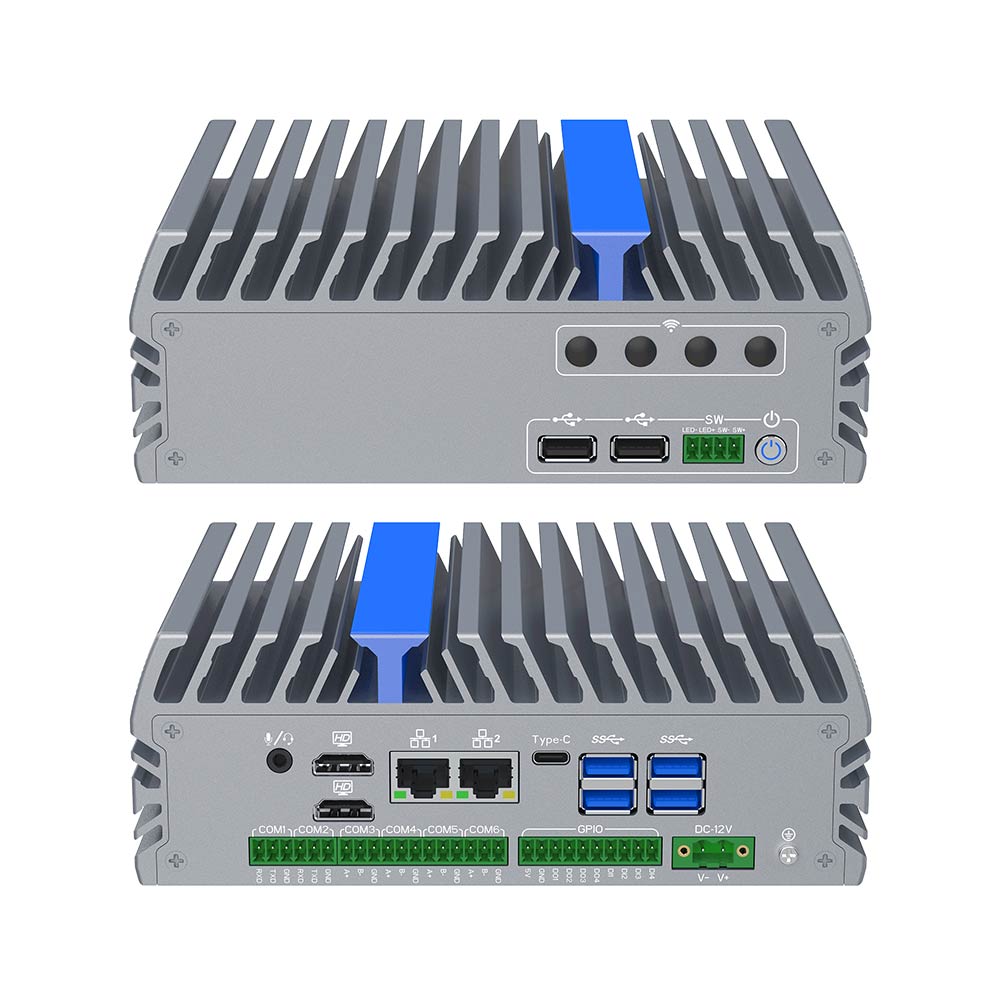

IEXP-322 Industrial PC, Intel N100, DDR5, 2× 2.5G LAN, 6× COM

IEXP-322 Industrial PC, Intel N100, DDR5, 2× 2.5G LAN, 6× COM, Dual 4K Display

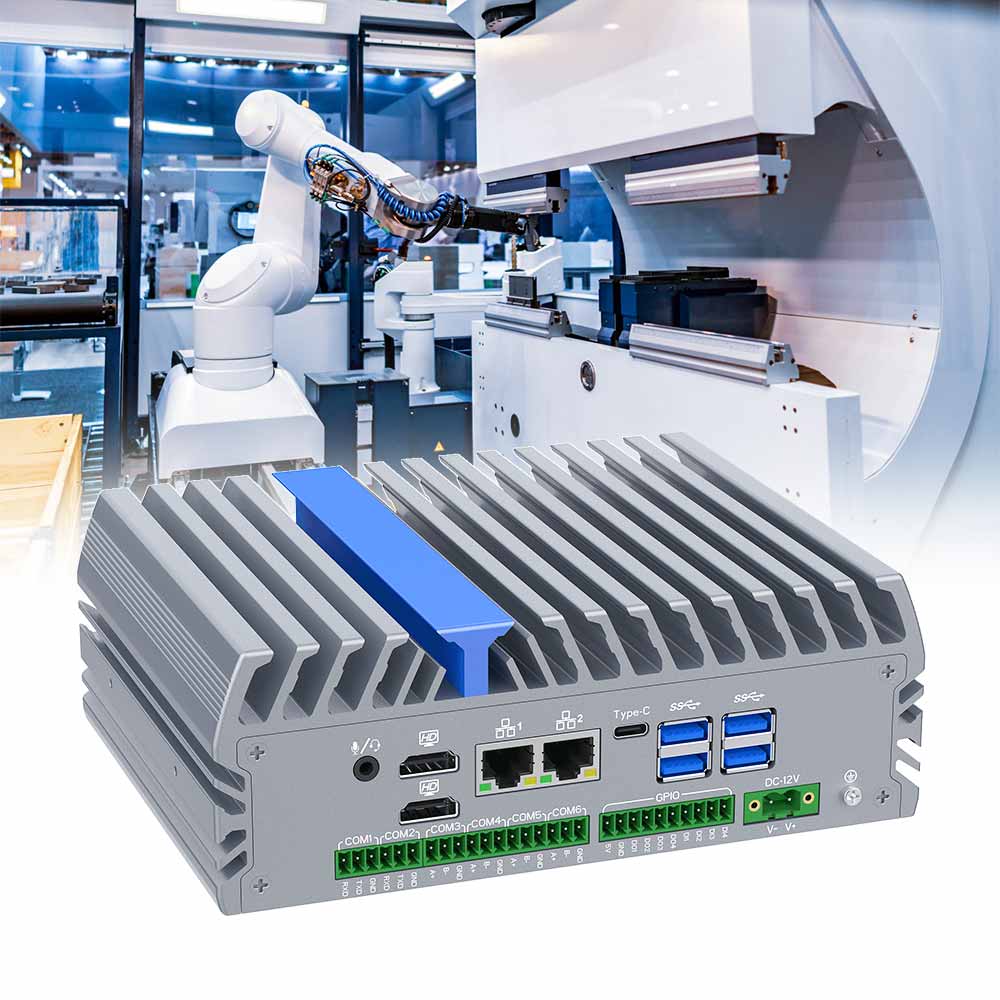

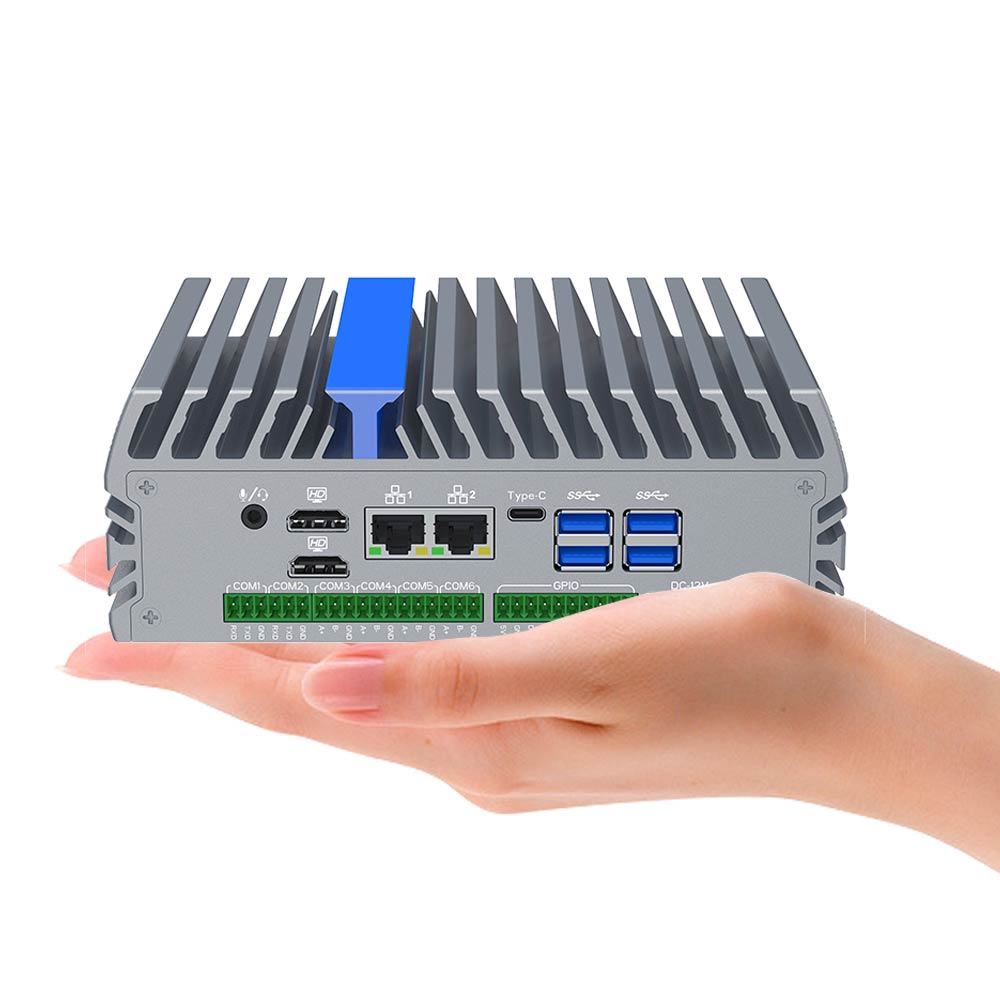

The Industrial PC IEXP-322 N100 is a powerful and compact fanless computer designed for demanding industrial environments. Equipped with the Intel® N100 quad-core processor (up to 3.4 GHz Turbo) and DDR5 memory support up to 16 GB, it delivers high performance for automation, logistics, medical, and educational applications.

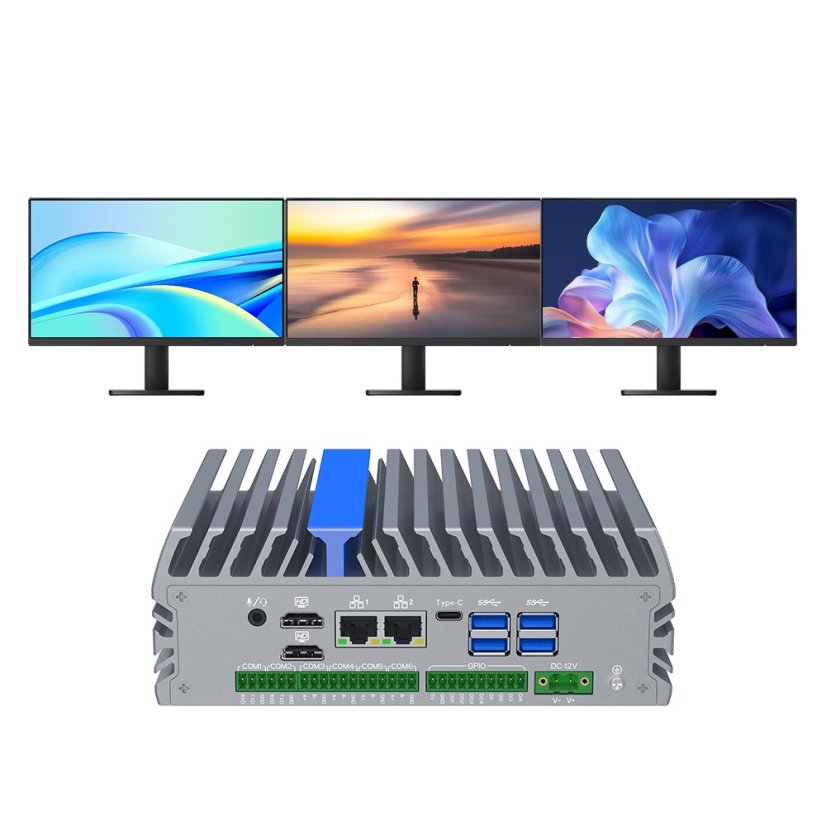

It features dual HDMI and Type-C video outputs supporting 4K @ 60Hz, multiple expansion slots including M.2 and Mini PCIe, and six COM ports for RS232 and RS485 connections.
With a rugged design, wide temperature tolerance (-20°C to +60°C), and 12V DC power input, the IEXP-322 ensures reliable operation in harsh environments. Flexible mounting options such as VESA, wall, or DIN-rail make it versatile for various industrial installations.

Specifications:

• Model: IEXP-322

• Processor: Intel® N100, 4 cores / 4 threads, Turbo up to 3.4 GHz (Alder Lake-N)

• Chipset: Alder Lake-N

• Memory: 1 × DDR5 4800MHz SODIMM, max. 16 GB

• Storage:

  • 1 × M.2 2280 M-key (SATA SSD support)

  • 1 × 2.5" SATA HDD

• Graphics: Intel UHD Graphics

  • 2 × HDMI (3840 × 2160 @ 60Hz)

  • 1 × Type-C (3840 × 2160 @ 60Hz)

• Expansion Slots:

  • 1 × M.2 2230 E-key (WiFi/Bluetooth)

  • 1 × Mini PCIe full-length (PCIE & USB 2.0, optional 4G/WiFi/Bluetooth)

  • Internal Nano-SIM card slot

• Networking: 2 × Intel I226-V 2.5G Ethernet

• I/O Ports:

  • 4 × USB 3.0

  • 2 × USB 2.0

  • 6 × COM ports (COM1 & COM2 RS232, COM3–COM6 RS485)

  • 1 × Audio Line-out/Mic-in

• Mounting: VESA, Wall mount, optional DIN-rail

• Operating Temperature: -20°C to +60°C (with surface airflow)

• Humidity: 5% – 95% non-condensing

• Power Supply: DC 12V, 2-pin Phoenix terminal

• Dimensions: 205 × 146 × 50 mm

• Weight: TBD

• Additional Features: Power-on schedule, Wake-on-LAN, PXE boot, Watchdog timer, TPM 2.0 security

Applications:

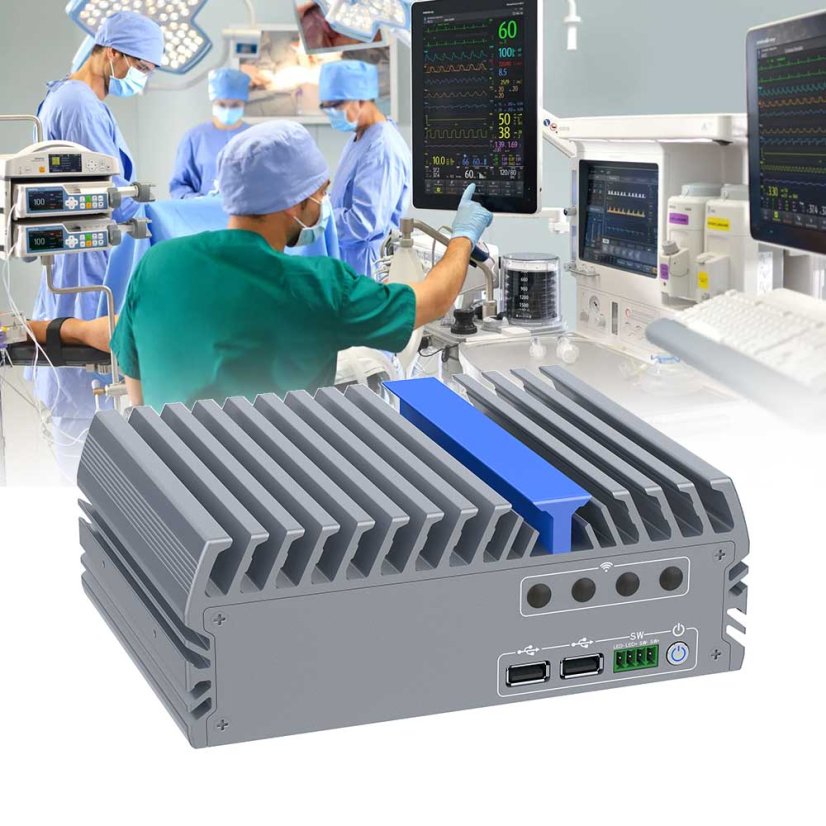

Industrial automation, medical systems, logistics and transportation, warehousing, and e-learning platforms.
