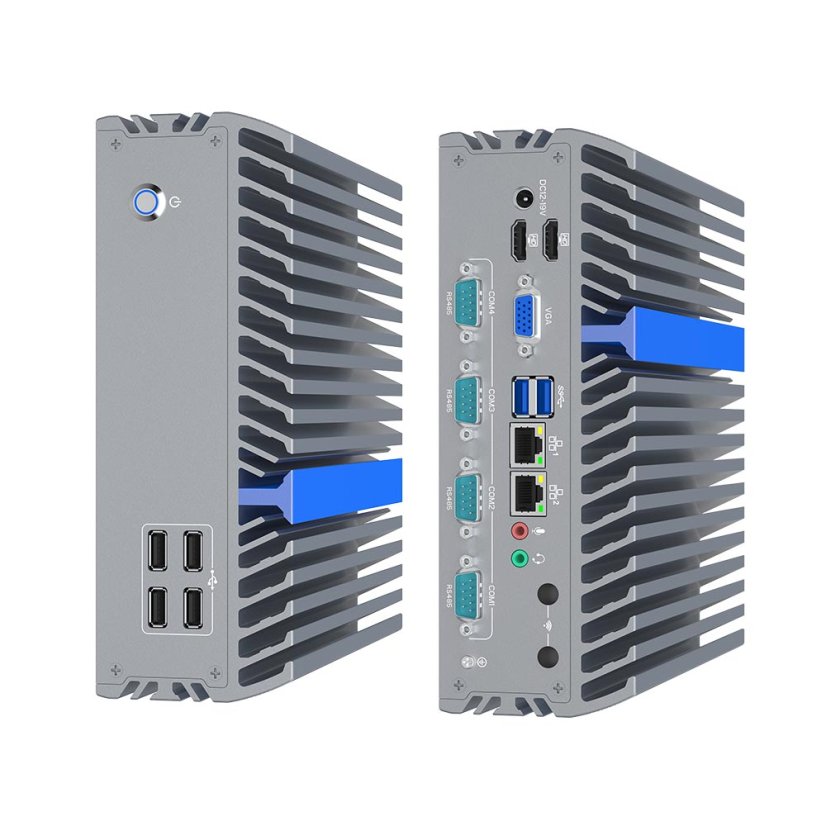

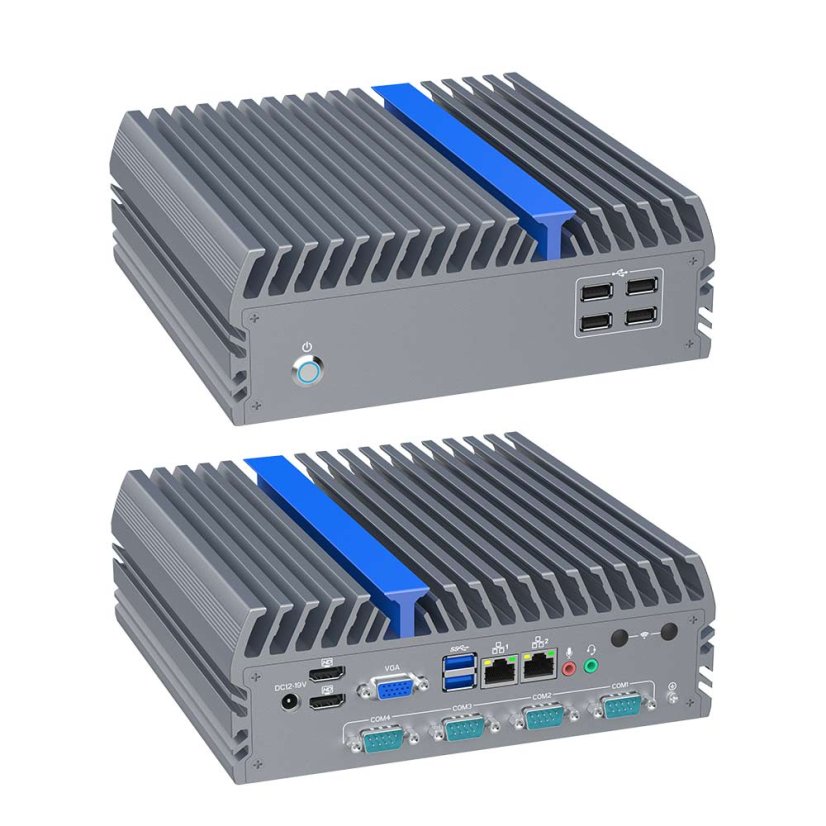

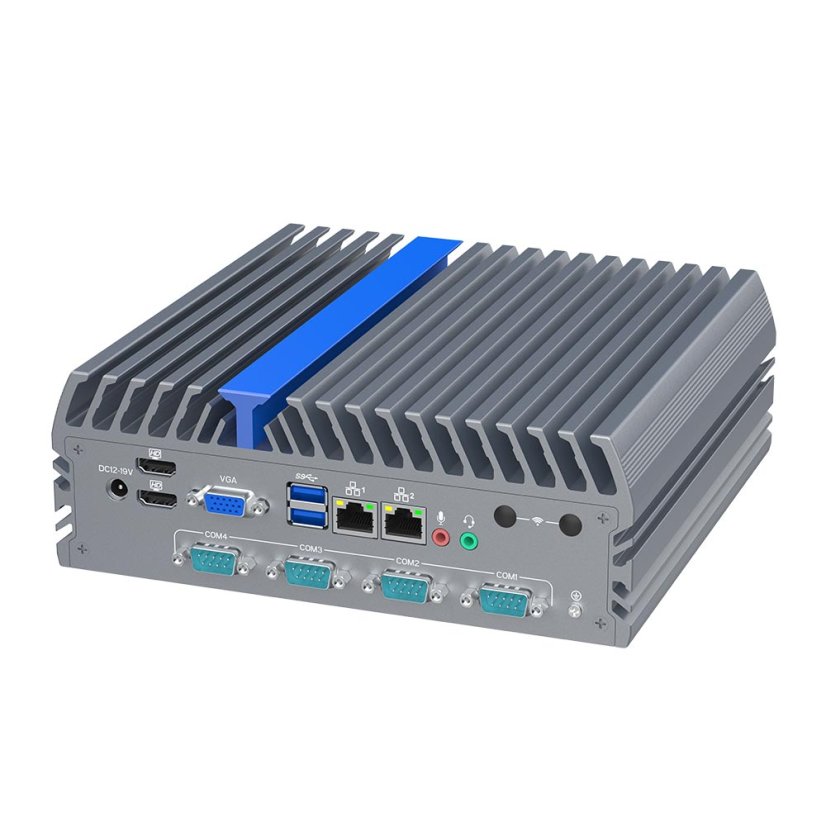

IEXP-732 Mini Industrial PC, Triple Display, Dual LAN

IEXP-732 Mini Industrial PC, Triple Display, Dual LAN

The IEXP-732 Mini Industrial PC is a compact, high-performance and reliable fanless system designed for industrial automation, logistics, transportation, medical, and educational applications.
Powered by 12th Generation Intel® Core™ i3 / i5 / i7 processors (the CPU is not included in the price), it provides outstanding computing performance, energy efficiency, and long-term stability for continuous 24/7 operation.

Equipped with dual DDR4 3200MHz SODIMM slots (up to 64 GB), M.2 NVMe SSD, and 2.5” SATA drive support, the IEXP-732 ensures high-speed data access and flexible storage configuration.

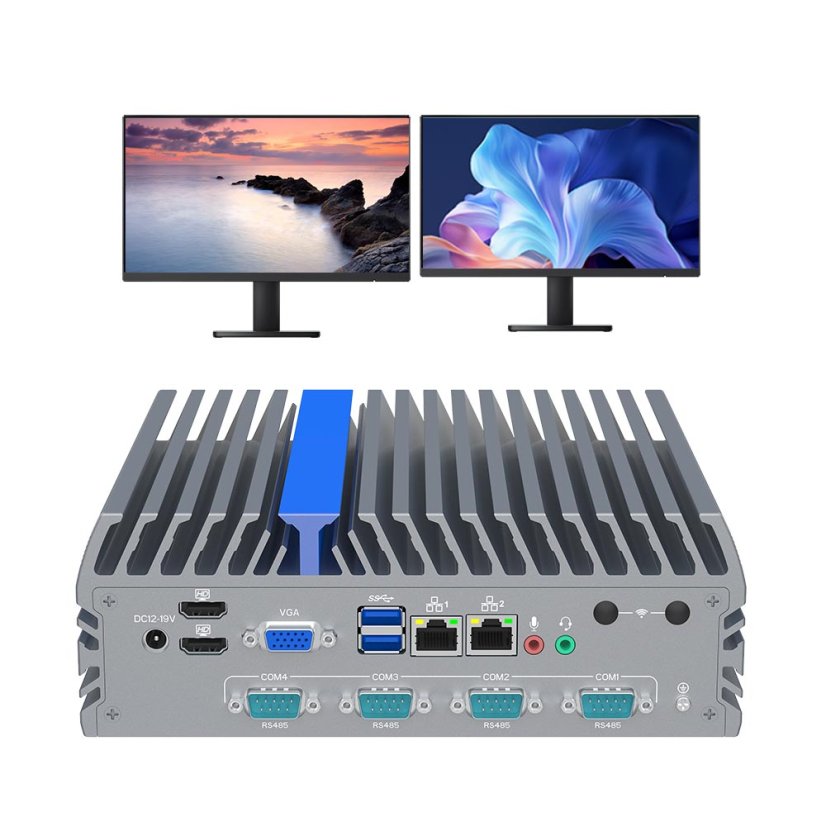

Integrated Intel® UHD Graphics 730 / 770 supports triple display output (2× HDMI + 1× VGA) with resolutions up to 4K, making it ideal for monitoring, visualization, and control systems.

The unit offers 2× Gigabit LAN, 6× USB ports, 4× RS485 COM ports, and a Mini PCIe slot for expansion (Wi-Fi / Bluetooth / 4G), including an internal Nano-SIM card slot.
Additional features include TPM 2.0 security, auto power-on, timed boot, Wake-on-LAN, PXE boot, and watchdog timer for reliable operation in harsh industrial environments.

With its –20 °C to +60 °C temperature range and 12–19V DC wide voltage input, the IEXP-732 delivers exceptional stability and performance for modern embedded and industrial applications.

Specifications

• Model: IEXP-732 Mini Industrial PC

• Processor Options (the CPU is not included in the price):

  • Intel® Core™ i3-12300T (4C / 8T, up to 4.2 GHz)

  • Intel® Core™ i5-12500T (6C / 12T, up to 4.4 GHz)

  • Intel® Core™ i7-12700T (12C / 20T, up to 4.7 GHz)

• Chipset: Intel® H610

• Memory: 2× DDR4 3200MHz SODIMM, max. 64 GB

• Storage:

  • 1× M.2 2280 M-Key (PCIe 3.0 x4 NVMe)

  • 1× 2.5" SATA HDD / SSD

• Graphics: Intel® UHD Graphics 730 / 770 (Triple Display)

• Display Outputs:

  • 2× HDMI (3840 × 2160 @ 60Hz)

  • 1× VGA (1920 × 1080 @ 60Hz)

• Networking: 2× Realtek RTL8111H Gigabit LAN

• Expansion:

  • 1× Full-length Mini PCIe slot (PCIe & USB2.0, optional 4G / Wi-Fi / BT)

  • Internal Nano-SIM slot

• I/O Interfaces:

  • 2× USB 3.0, 4× USB 2.0

  • 4× COM (RS485)

  • 1× Line-out, 1× Mic-in

• Power Supply: DC 12–19V (5.5×2.5mm connector)

• Functions: Power-on, Timed boot, Wake-on-LAN, PXE boot, Watchdog (0–255), TPM 2.0

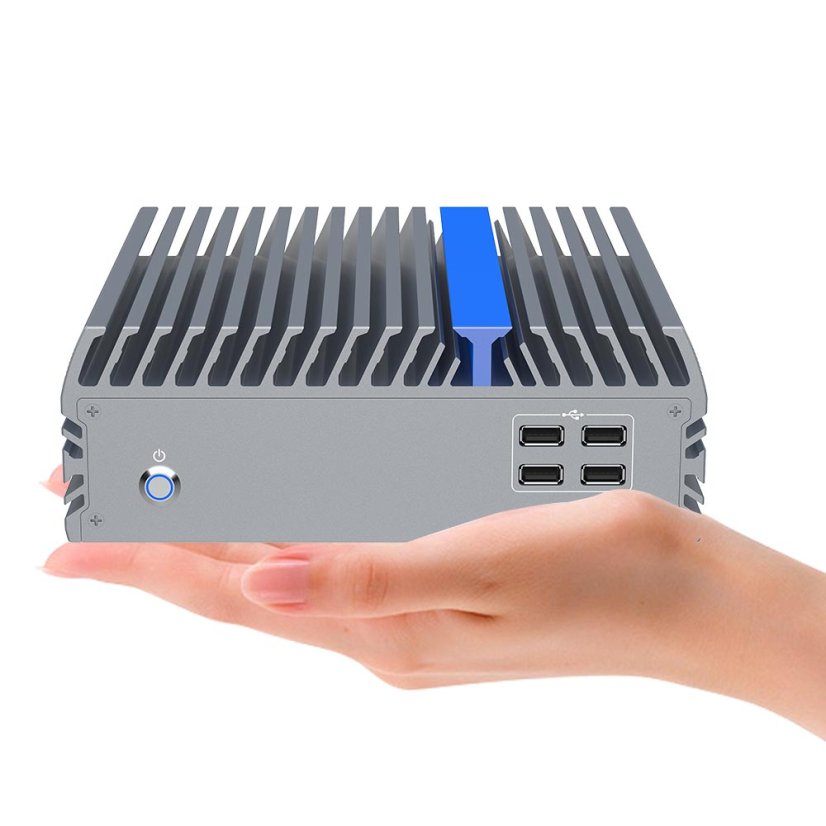

• Dimensions: 215 × 210 × 75 mm

• Weight: 3.27 kg (barebone)

• Installation: Wall-mounted (included), desktop (default)

• Operating Temperature: –20°C to +60°C

• Humidity: 5%–95%, non-condensing

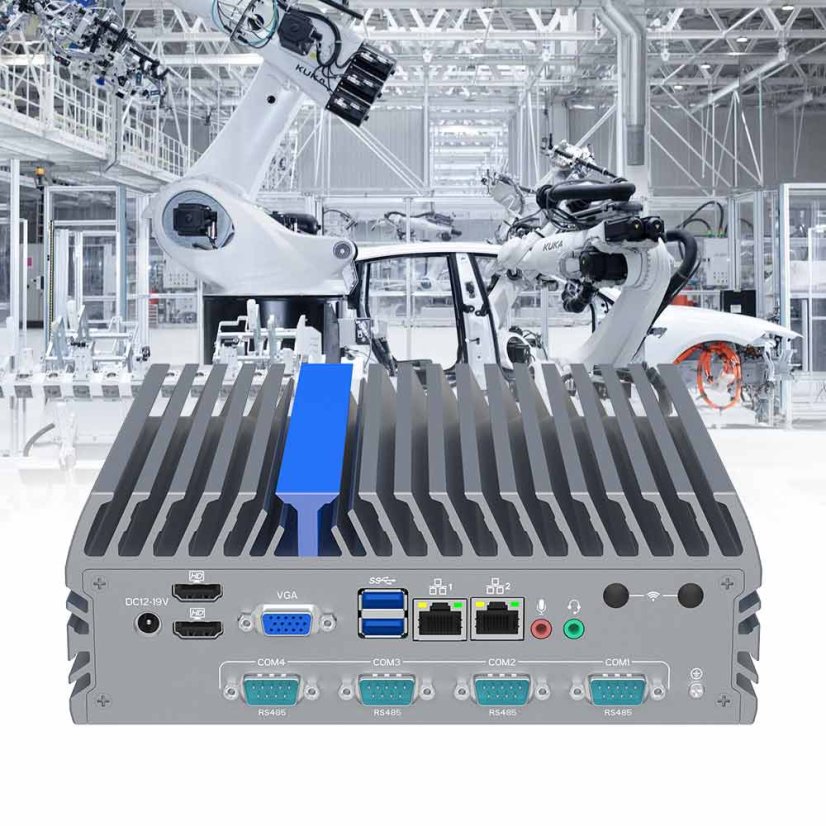

• Applications: Industrial automation, logistics, transportation, warehousing, medical, e-learning
