Indala RFID Card Reader - IP68 Waterproof

Indala RFID Card Reader with Wall Mount - IP68

Add to favourites Add to compare list

Indala RFID Card Reader with Wall Mount - IP68

Indala RFID card reader that replaces the original Indala F0500A/L+/10022 FLEXPASS reader. More
Manufacturer: NEVEN Product code: 13694 Shipping and payment
168,20 EUR incl. VAT
in stock (1 ks)
Indala RFID card reader that replaces the original Indala F0500A/L+/10022 FLEXPASS reader. More
Manufacturer: NEVEN Product code: 13694 Shipping and payment

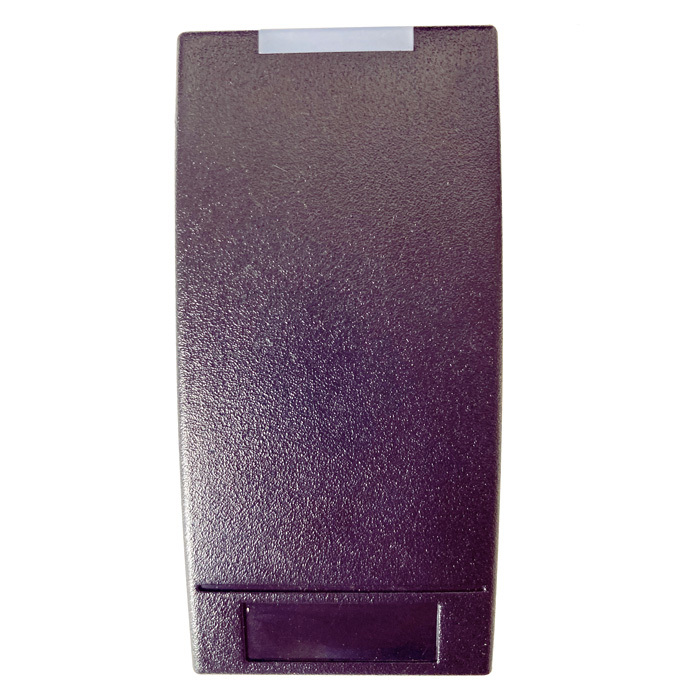

Indala RFID Card Reader, Wall Mount, IP68

This card reader serves as a 1:1 replacement for the original Indala F0500A/L+/10022 FLEXPASS reader.

Specifications:

  • Model: IND002-WG26 (compatible with F0500A/L+/10022 FLEXPASS)
  • Operating Frequency: 125kHz
  • Supported Chips: all 26-bit Wiegand chips Indala
  • Output Format: WG26
  • Cable Length: approximately 15 cm, 7 wires
  • Power Supply: 12V
  • Water Resistance Level: IP68
  • Dimensions: 100x50x20mm

Note: If the card is not Indala, the reader will not respond.

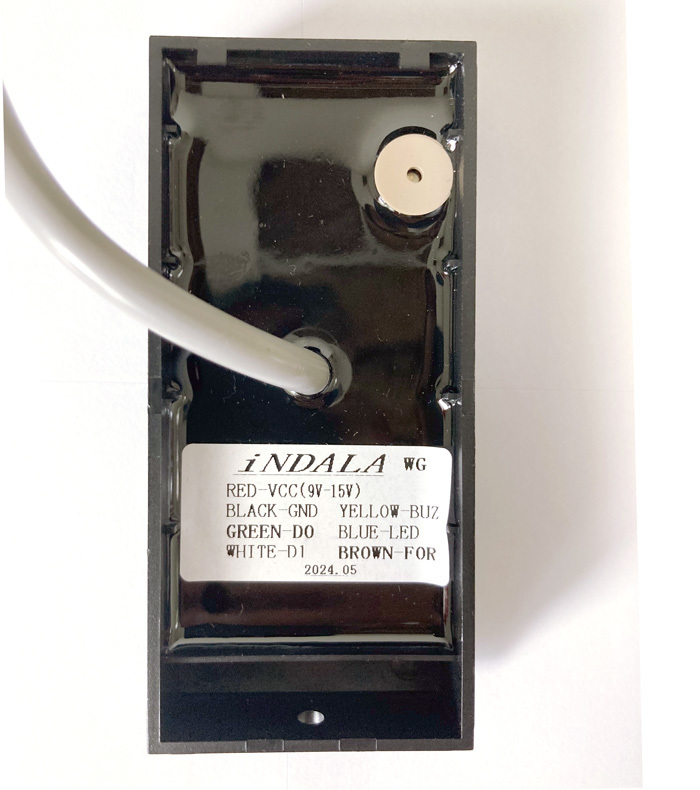

Wire Color Codes:

Red – Power Vcc +

Black – Power GND -

Green - Data D0

White - Data D1

Yellow - Buzzer Control

Blue – LED Control

Brown: Not used

Note: WG signal requires GND

Indala RFID Card Reader, Wall Mount, IP68Indala RFID Card Reader, Wall Mount, IP68
