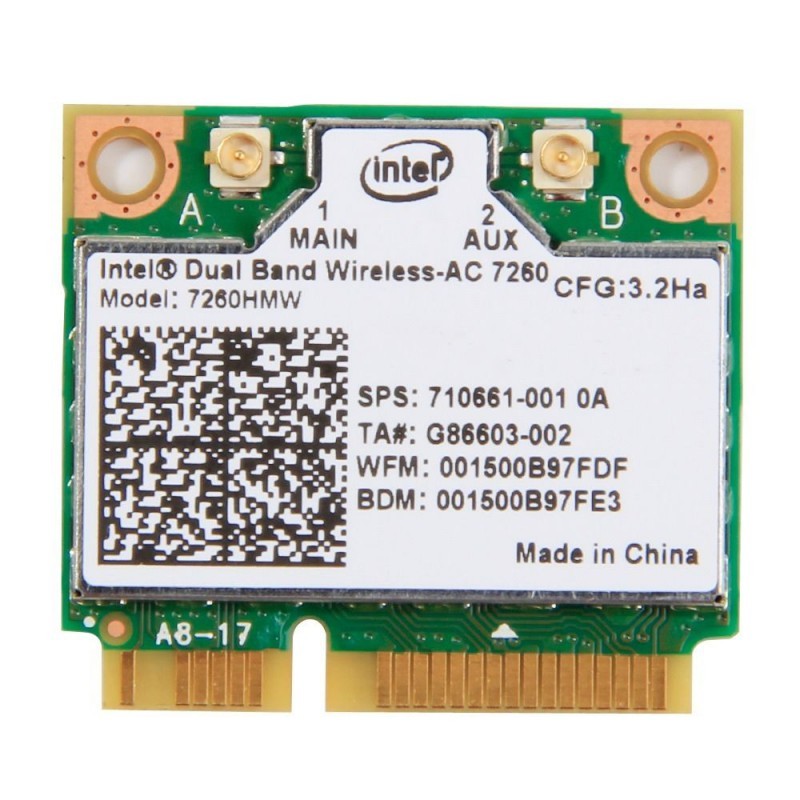

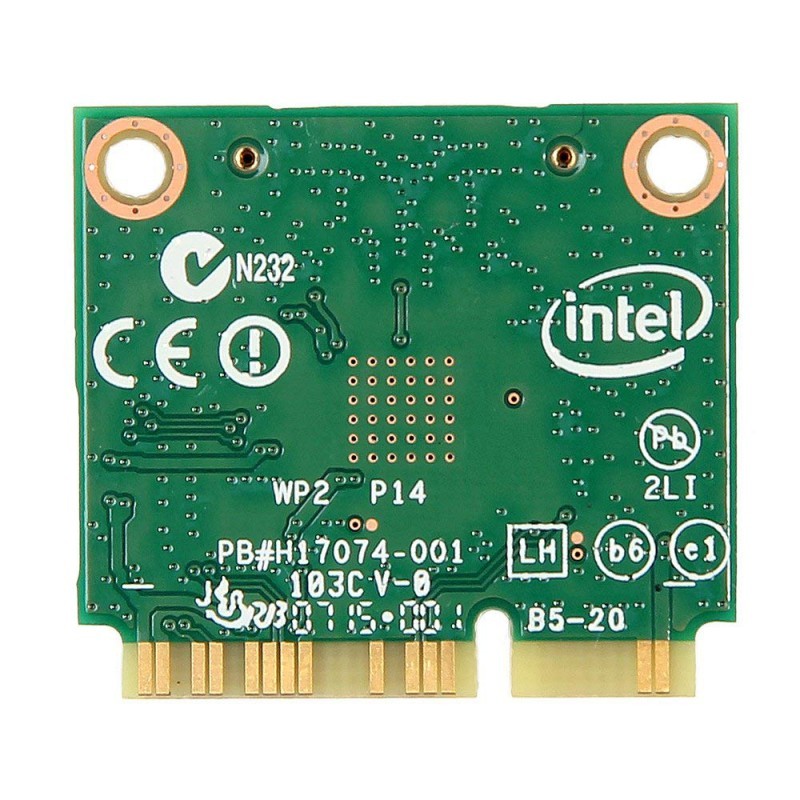

Intel Dual Band Wireless-AC 7260 miniPCIe Card

Network card, internal for laptops, dual band 2.4GHz and 5GHz, 802.11ac, Bluetooth 4.0, miniPCIe, 2x u.FL connector

Compact dual-band Wi-Fi/Bluetooth adapter that supports the 802.11ac standard. This means it is perfect not only for multimedia transmissions. With its compact dimensions, it is suitable for very small computers. The device maintains a network connection with an emphasis on consuming as little energy as possible. It thus updates email folders and social accounts with consideration for maximizing the battery life of portable devices.

The Intel® Dual Band Wireless-AC 7260 802.11 module also utilizes Bluetooth interface in its latest fourth version (BLE). It supports other versions as well: Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, and 4.0 (BLE).

In addition to Wi-Fi 802.11ac, the compact device also supports other variants for maximum compatibility with older electronics, specifically Wi-Fi 802.11an. The security techniques known by the module include 64-bit and 128-bit WEP, AES-CCMP, and TKIP. It can utilize WPA and WPA2 technology for authentication, as well as 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, or EAP-AKA. The unit offers very precise localization functions over the Wi-Fi interface—visitors to university campuses can easily find where they are and locate, for example, a specific conference room or restaurant.

Specifications:

• Manufacturer: Intel
• Model: 7260HMW AC
• Standards: 802.11ac
• Wireless Data Rates: 300/867 Mbps
• Frequency: dual band 2.4/5GHz
• Bluetooth: 4.0 (BLE)
• Interface: miniPCIe
• Dimensions: 27x30x3mm

Product Brief: Intel Dual Band Wireless-AC 7260

Package Contents:

• 1x WiFi card 7260HMW AC
