Internal WLAN Antenna 2.4/5 GHz, FPC, 50x8 mm

Internal WLAN Antenna 2.4/5 GHz, FPC, 50x8 mm

This directional internal antenna operates at 2.4GHz and 5.8GHz frequencies with a gain of 5dBi, designed for receiving and transmitting WiFi signals. Ideal for devices supporting WLAN technology. Finished with a u.FL (IPEX1) or IPEX4 connector.

Specifications:

• Cable Length: 100 mm
• Frequency Bands: 2.4GHz/5.8GHz
• Impedance: 50 Ohm
• Gain: 5dBi
• Connector: U.FL (m) / MHF4 IPEX (m)
• Maximum Input Power: 10 W max
• Polarization: Linear
• Design: Internal
• Directivity: Directional
• Technology: WiFi / Bluetooth / WiMAX / MIMO System
• VSWR: <3.0:1

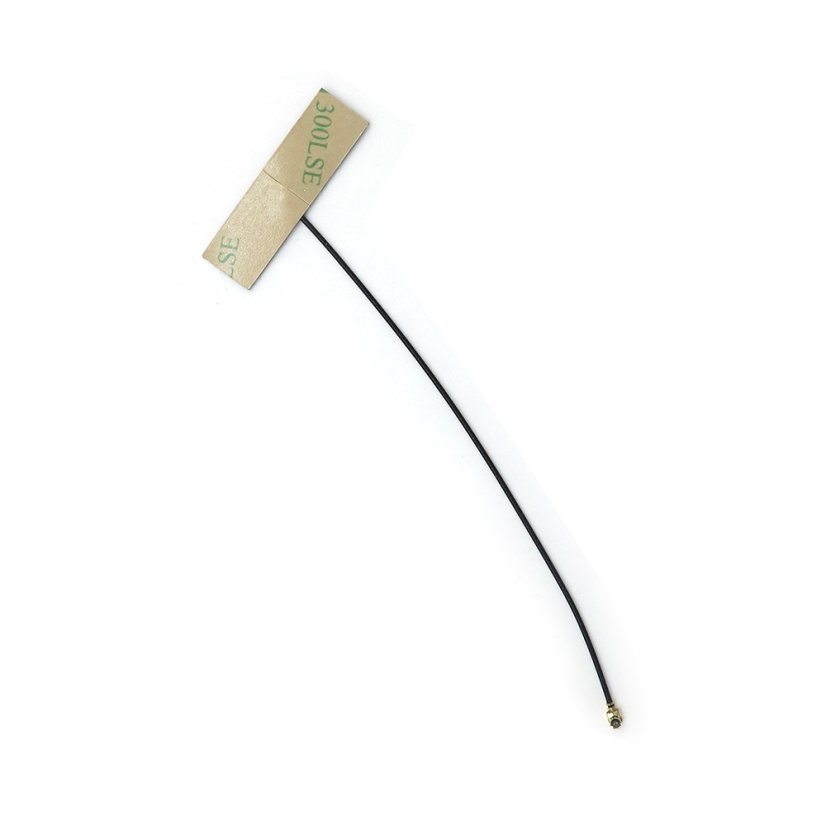

• Mounting Method: Adhesive
• Operating Temperature: -30 °C - +90 °C

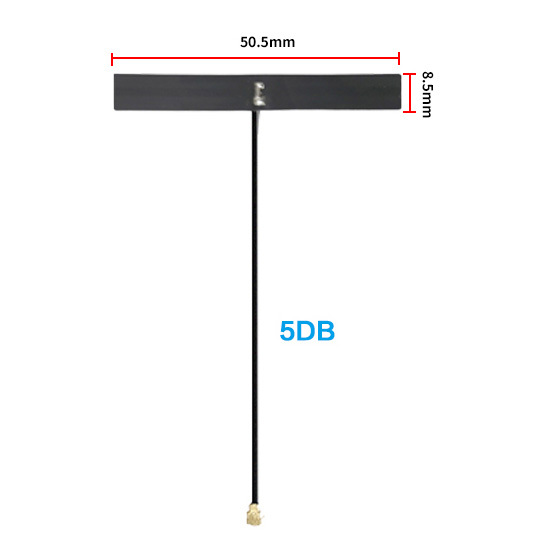

• Dimensions: 50 x 8 x 0.15 mm
• Weight: 0.061 g
