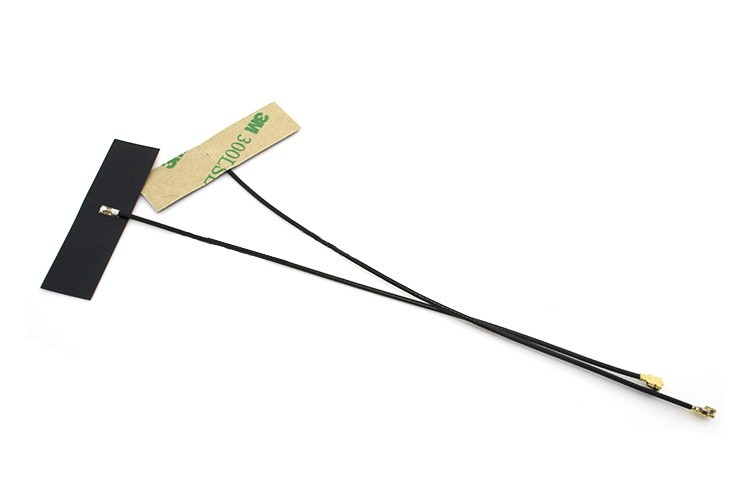

Internal WLAN Antenna IPEX 42x7x0.15, Flexi, 2.4/5 GHz, U.FL088, 100mm

Directional Internal WLAN/Bluetooth Antenna IPEX

The directional internal antenna with a gain of 4.5 dBi operates in the 2.4 GHz band, designed for receiving/transmitting WiFi signals. It is intended for devices that support WLAN technology, ending with a U.FL connector.

Specifications:

• CABLE LENGTH: 100 mm
• FREQUENCY BANDS: 2400 MHz ~ 2500 MHz
• IMPEDANCE: 50 Ohm
• GAIN: 4-4.5 dBi
• CONNECTOR: U.FL(m)
• MAXIMUM INPUT POWER: 10 W max
• POLARIZATION: Linear
• TYPE: Internal
• DIRECTIONALITY: Directional
• TECHNOLOGY: WiFi / Bluetooth / WiMAX / MIMO system
• VSWR: <3.0:1
• mounting method: Adhesive
• OPERATING TEMPERATURE: -30 °C - +90 °C
• DIMENSIONS: 42 x 12 x 0.15 mm
• WEIGHT: 0.061 g
