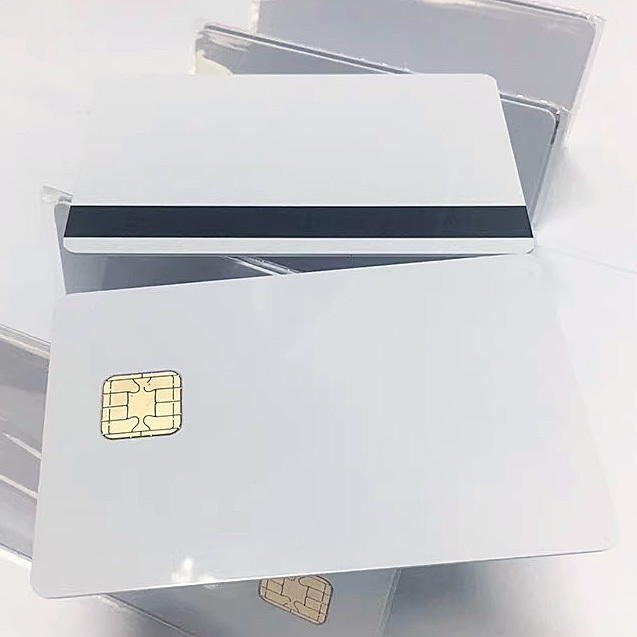

J3R180 Contact Chip PVC Card

J3R180 Contact Chip PVC Card

This JCOP (Java Card Open Platform) card utilizes the J3R180 chip, which is the successor to the discontinued J3H081 chip. The new JCOP 4 series chips from NXP offer advanced capabilities, including a dual interface and a capacity of 180 kB.

Our default JAVA card with the J3R180 chip comes with a factory COS and provides the TK (Transport Key) value. Be sure to understand how to read the TK value and perform initialization when using this card for the first time!

The chip card with the J3R180 chip is standardly offered in white but can be printed in various colors.

Specifications:

• Chip: NXP J3R180
• Type: Dual interface chip card, contact and contactless
• Wireless frequency: 13.56 MHz
• Chip capacity (EEPROM): 180 kB
• JCOP version: NXP JCOP 4.x
• Java Card 3.0.5 Classic Edition
• GlobalPlatform 2.3
• Standard:
  • Contact (ISO/IEC 7816)
  • Contactless (ISO/IEC 14443 Type A/B)
• Cryptographic Support:
  • RSA up to 4096 bits
  • ECC up to 521 bits
  • AES up to 256 bits
  • SHA-1, SHA-2 (including SHA-256, SHA-384, SHA-512)
• Read and write time: 5 ~ 8 ms
• Data transfer rate: 106 kb/s
• Erase and write cycle life: >500,000 times
• Data retention: >10 years
• Operating temperature: -20°C to 80°C
• Working temperature: -20℃～+55℃
• Dimensions: 85.5*54*0.84(±0.04) mm
• Material: PVC, PET, PETG
• Weight: 5.8 g to 6 g

Datasheet: https://www.nxp.com/docs/en/brochure/JCOP4SECIDAPPA4.pdf
