XY-W58CDT9-AV7 Control Board for TFT LCD Displays

XY-W58CDT9-AV7 Control Board for TFT LCD Displays

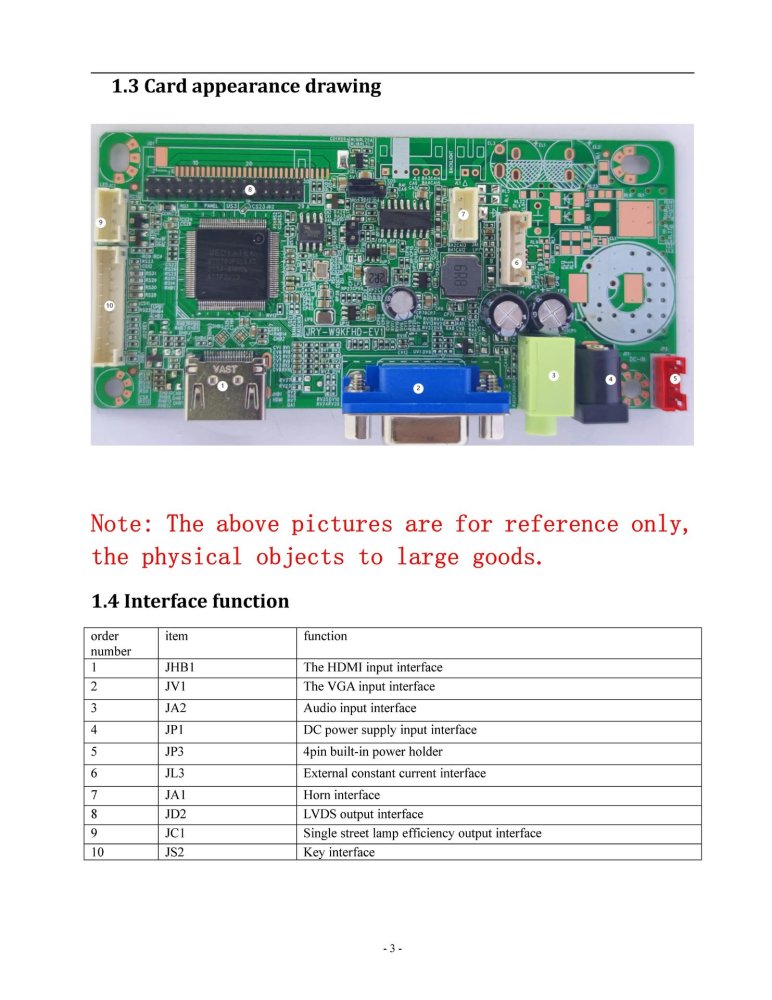

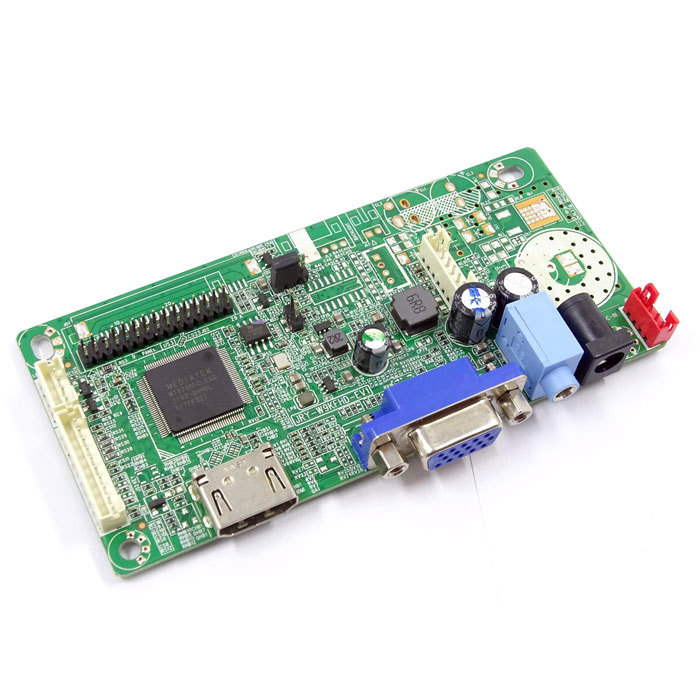

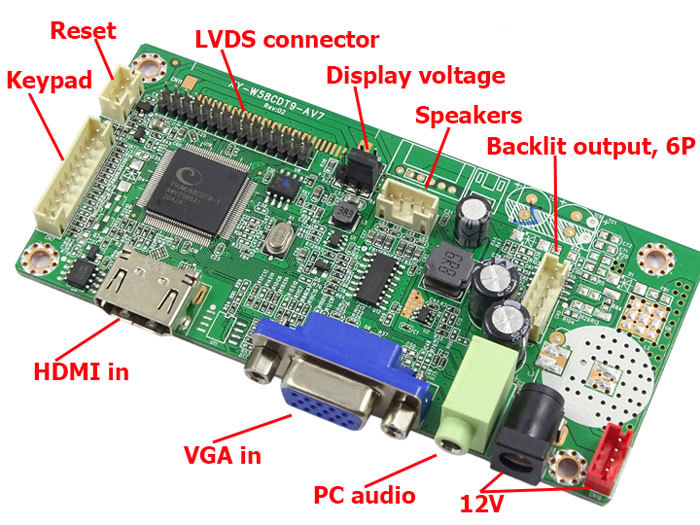

This high-end LCD monitor controller utilizes the Mediatek MT9700 chip, offering excellent video quality and multiple features and interfaces.

The integrated I/O port allows the board to control any additional devices.

It supports fully interlaced 3D, 3D video decoding, and digital noise reduction, with built-in audio processing, volume adjustment, mute function, and control over treble, bass, and balance.

A highly efficient Class D audio amplifier with a maximum power of 2x3W (4Ω).

WARNING: This board does not have the display configuration loaded. Configuration will be uploaded according to the display model and its resolution. Please contact us before ordering.

Defaults to a standard configuration of 800*480 AT070TN92 without prior notification.

Specifications:

• Model: XY-W58CDT9-AV7 (JRYP35B-F5VWA)
• Chip: MStar TSUMU58CDT9-1 (TSUMO58CDT9-1)
• Amplifier: 2x3W
• Screen Voltage: 5V/12V
• Button Functions: Power/Menu/Source/Up/Down/Left/Right
• Inputs
  • 1x HDMI
  • 1x VGA
• Outputs:
  • 30pin, 8-bit LVDS output
  • 3.5mm audio
• OSD Languages: English, German, French, Italian, Spanish, Russian, Arabic
• Operating Voltage: 11.25~13.25V
• Resolution: 1920x1080
• Backup Current: 10-40mA
• Storage Temperature: -40~85°C
• Dimensions: 112x53mm

Package Contents:

1x XY-W58CDT9-AV7 Control Board
