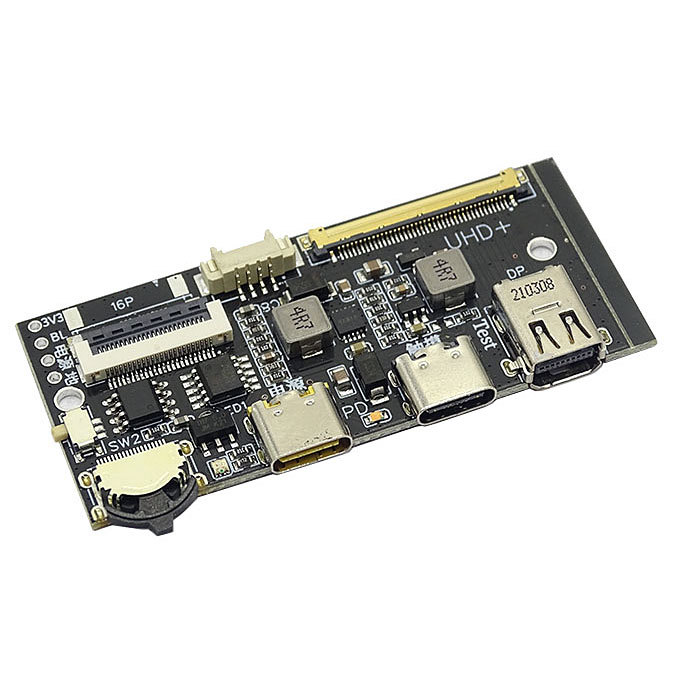

JXG-DP UHD (PD) 120HZ DP to EDP Control Board

JXG-DP 4K 120HZ DP to EDP Control Board DIY Portable Display 1080P(B)

This board supports displays from the B156HTN03 series and other 40-pin eDP displays (LVDS displays are not supported). Video can be displayed from a computer through a USB-C port (requires a computer graphics card). The maximum supported resolution is 3840x2160 at 144Hz (UHD).

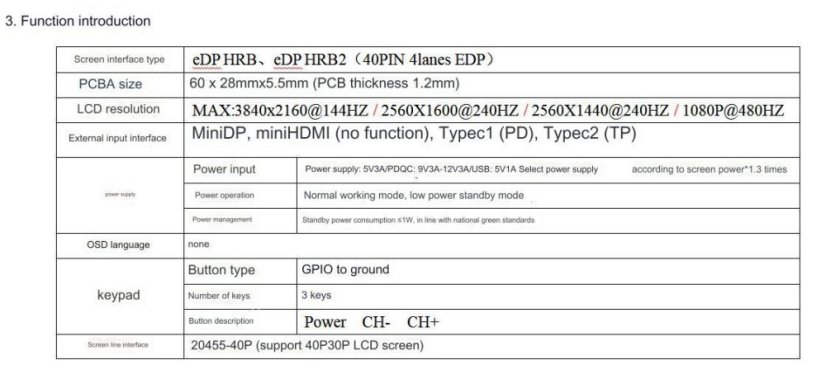

Specifications

• Model: JXG-DP UHD (PD) (A3)
• Display interface/output: 40pin eDPHRB, eDP HRB2
• Resolution: 3840x2160@144HZ, 2560X1600@240HZ, 2560X1440@240HZ, 1080P@480HZ
• Inputs: mini DP
• Audio input: no
• Power: USB-C 5V3A/PDQC: 9V3A-12V3A/USB
• Dimensions: 60x28mm (2.36 x 1.10 inches)

Tested screen card, x represents any number:

b173han05.1, N156KME-GNA (2K165hz). B173HAN04.9 (144hz) N173HHE-G32 TV101QUM B133ZANxx.x B156ZANxx.x NE156QUMxxx

LQ156M1JWxx, B156HANxx.x, NV156QUM-N72, LTN156FLxx MNG007DA1-1

B173ZANxx.x, LQ173D1JWxx, B156HAN08.2/0, integrated graphics LQ156D1JW02, NV156FHM-N4N/K, iPad pro 11, iPad, and various tablets

1. Product Overview

JXG-DP Test V2.0 is an LCD monitor control board supporting up to UHD+ (4K144hz 4lanes EDP).

This product supports FHD+, QHD+, UHD+, and other resolutions of TFT LCD screens from brands like BOE, AUO, Sharp, CSOT, LG, Samsung, and more EDP signal type laptop LCD screens.

2. Features

2.1 Mini DP interface supports high-bandwidth DP1.4 protocol and supports up to 4K@144HZ;

2.2 Supports fast charging protocols like PD3.0/2.0, QC, BC1.2;

2.3 Automatic sleep mode and screen off without signal (always on/off signaling);

2.4 Input signal of the board automatically identifies screen parameters and displays images while adjusting to screen parameters;

2.5 3-button KEY control supports infinite gradient dimming function;

2.6 Supports USB protocol touch input;

2.7 Supports self-test mode/aging mode (optional);

2.8 Upgraded power chip, supports a maximum of 30W LCD display (PD-12V3A power input);

2.9 Supports built-in power/battery (input 5-12V)

Package Contents:

1x JXG-DP Control Board
1x 40pin eDP cable 25cm (9.84 inches)
