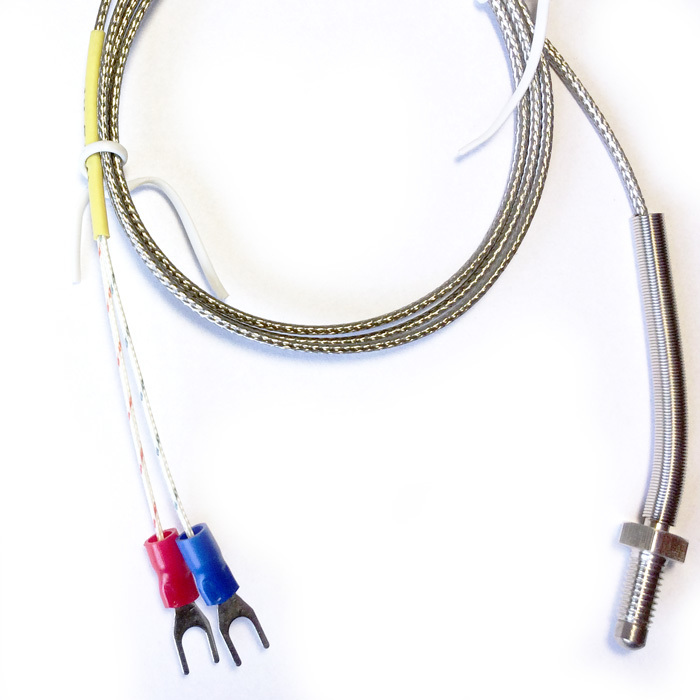

K-Type Thermocouple Temperature Sensor with M6 Thread and Metal Braiding

High-quality K-Type thermocouple temperature sensors with sensors imported from Germany.

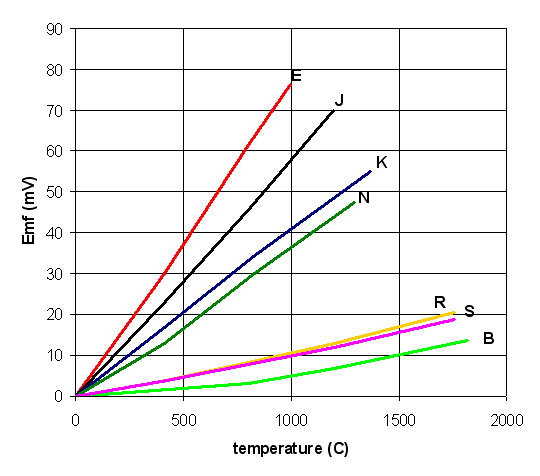

Thermocouples are available in several material variants. Each material pair has different temperature range characteristics and voltage. The voltage generated by the thermocouple is always small, in the millivolt range, and is nonlinear. The table below shows some common thermocouples and their basic parameters.

Type	Materials	Min. Temperature	Max. Temperature	Min. °C	Max. °C
J	Iron Constantan (Cu-Ni)	0 °C	750 °C	0 mV	42.281 mV
T	Copper Constantan (Cu-Ni)	-250 °C	350 °C	-6.18 mV	17.819 mV
K	Chromel (Ni-Cr) Alumel (Ni-Al)	-200 °C	1250 °C	-5.891 mV	50.644 mV
E	Chromel (Ni-Cr) Constantan (Cu-Ni)	-200 °C	900 °C	-8.825 mV	68.787 mV
N	Nicrosil (Ni-Cr-Si) NiSil (Ni-Si-Mg)	-260 °C	1300 °C	-4.336 mV	47.513 mV
S	Platinum-13% Rhodium Platinum	-50 °C	1768 °C	-0.236 mV	18.693 mV
B	Platinum-30% Rhodium Platinum-6% Rhodium	0 °C	1820 °C	0 mV	13.82 mV
C	Tungsten-5% Rhenium Tungsten-26% Rhenium	0 °C	2320 °C	0 mV	37.107 mV

T, K, and E are the most commonly used thermocouples in the industry.

Thermocouples offer several advantages:

Wide temperature range
Cost-effective
Fast response
Easy to use

Technical parameters:

Model: TC-M6K1-01
Type: thermocouple sensor (TC) - K type
Class: A
Temperature range: 0 to +500°C
Housing: M6 thread, Cu-copper
Wire type: glass insulated wire with metal braiding
Wire type: 2 separate wires
Lead length: 1/2/3/5m or according to request

NOTE: Please ensure that your device supports the selected sensors before ordering. After replacement, the thermocouples may require calibration using temperature measurement equipment. The accuracy of thermocouple probes decreases over time and must be regularly calibrated and replaced after prolonged use.

For orders over 100 pieces, sensors can be customized according to customer needs.
