K150 ICSP USB Programmer for MICROCHIP PIC

The K150 is a fast, universal PIC programmer with a USB interface.

Description:

• Power and communication via USB cable.
• Read, Write, and Verify
• 40-pin ZIF socket (8-40 pin chips)
• Upon selecting the device, instructions for correct chip insertion are displayed
• ICSP output on cable
• Support for Windows 98, 2000, XP, Vista, 7 (32 and 64-bit)...
• Simple control software
• 2x LEDs for power and communication indication

Electronic components on PCB:

• PIC 16F628
• 47CK6HK
• PL-2330

WARNING: This is a DIY programmer intended for advanced users who know how to use it. It only requires Profilic/FTDI Virtual COM drivers (for USB to serial chip) to function. It is provided WITHOUT programming software. It is the user's responsibility to find, install, and configure the programming software. The software must be connected to the virtual COM programmer to operate. There are several free programming applications compatible with this programmer. Below are links to some of them. The links are provided in good faith, WITHOUT warranty and support.

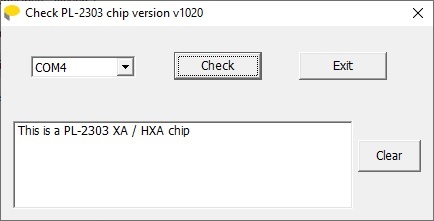

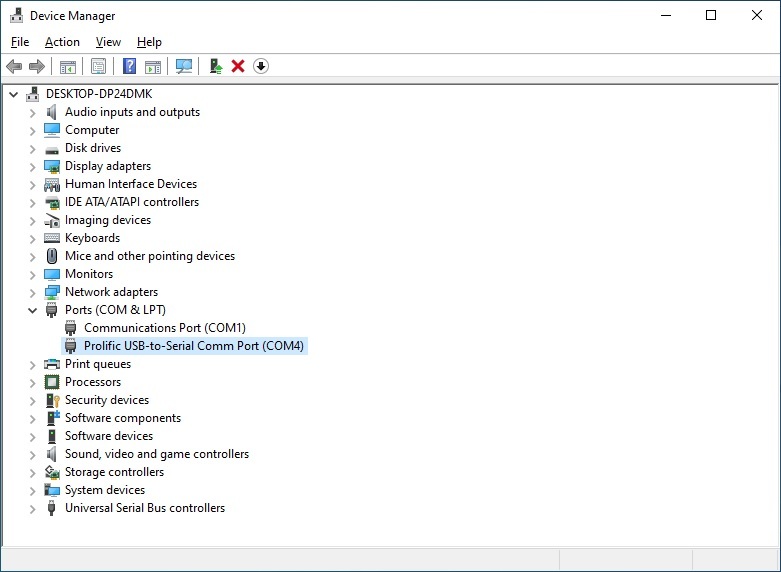

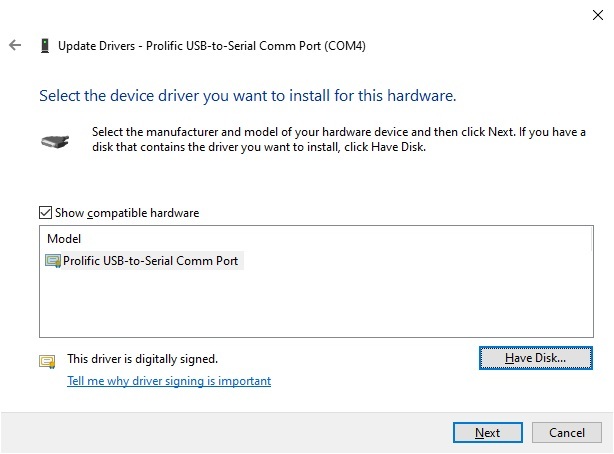

Drivers for PL2303 HXA here: see below

Latest DIY pack for PIC programmers K128, K149, K150, K182

http://www.kitsrus.com/pic.html

https://www.ozitronics.com/download.html

Manual:

http://uloz.to/xo8FvYQp/pic-k150-programmer-manual-pdf

Video tutorial:

“Reset failed. Please check…” this video demonstrates that this error is false:

https://youtu.be/4F8n1tQf4hw?t=179

FixIt PIC K150 Programmer TS8900-K150

https://www.instructables.com/FixIt-PIC-K150-Programmer-TS8900-K150/

Supported processors/chips:

WARNING: This list of supported chips is provided by the manufacturer. Please do not contact us with questions about chips not listed, as we do not know and cannot guarantee whether they are supported.

10 Series:

PIC10F200 PIC10F202 PIC10F204 PIC10F206
PIC10F220 PIC10F222

12C Series:

PIC12C508 PIC12C508A PIC12C509 PIC12C509A
PIC12C671 PIC12C672 PIC12CE518 PIC12CE519
PIC12CE673 PIC12CE674

12F Series:

PIC12F509 PIC12F629 12F635 12F508
PIC12F675 PIC12F683

16C Series:

PIC16C505 PIC16C554 PIC16C558 PIC16C61
PIC16C62 PIC16C62A PIC16C62B PIC16C63
PIC16C63A PIC 16C64 PIC16C64A PIC16C65
PIC16C65A PIC16C65B PIC16C66 PIC16C67
PIC16C620 PIC16C620A PIC16C621 PIC16C621A
PIC16C622 PIC16C622A PIC16C71 PIC16C71A
PIC16C72 PIC16C72A PIC16C73 PIC16C73A
PIC16C73B PIC16C74 PIC16C74A PIC16C74B
PIC16C76 PIC16C77 PIC16C710 PIC16C711
PIC16C712 PIC16C716 PIC16C745 PIC16C765
PIC16C773 PIC16C774 PIC16C84

PIC16C66A PIC16C83

16F Series:

PIC16F505 PIC16F506 PIC16F54 PIC16F57
PIC16F59 PIC16F627 PIC16F627A PIC16F628
PIC16F628A PIC16F630 PIC16F631 PIC16F648A
PIC16F676 PIC16F677 PIC16F684 PIC16F685
PIC16F687 PIC16F688 PIC16F689 PIC16F690
PIC16F716 PIC16F72 PIC16F73 PIC16F74
PIC16F76 PIC16F77 PIC16F737 PIC16F747
PIC16F767 PIC16F777 PIC16F83 PIC16F84
PIC16F84A PIC16F87 PIC16F88 PIC16F818
PIC16F819 PIC16F870 PIC16F871 PIC16F872
PIC16F873 PIC16F873A PIC16F874 PIC16F874A
PIC16F876 PIC16F876A PIC16F877 PIC16F877A
PIC16F913 PIC16F914 PIC16F916 PIC16F917

PIC16F505 PIC16F506 PIC16F510 PIC16LF627A PIC16LF628A

PIC16F636 PIC16F639 PIC16F716 PIC16LF873A

18 Series:

PIC18F242 PIC18F248 PIC18F252 PIC18F258
PIC18F442 PIC18F448 PIC18F452 PIC18F458
PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2221
PIC18F2320 PIC18F2321 PIC18F2331 PIC18F2410
PIC18F2420 PIC18F2431 PIC18F2450 PIC18F2455
PIC18F2480 PIC18F2510 PIC18F2520 PIC18F2550
PIC18F2580 PIC18F4220 PIC18F4221 PIC18F4320
PIC18F4321 PIC18F4331 PIC18F4410 PIC18F4420
PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4480
PIC18F4510 PIC18F4520 PIC18F4550 PIC18F4580
PIC18F6520 PIC18F6525 PIC18F6621 PIC18F8520
PIC18F8525 PIC18F8621

PIC18F2515 PIC18F2525 PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680

PIC18F4515 PIC18F4525 PIC18F4585 PIC18F4610 PIC18F4620 PIC18F4680

PIC18F6585 PIC18F6620 PIC18F6680 PIC18F6720 PIC18F6680 PIC18F6720

PIC18F8585 PIC18F8620 PIC18F8680 PIC18F8720 PIC16f785
PIC16F882 PIC16F883 PIC16F886 PIC16F887

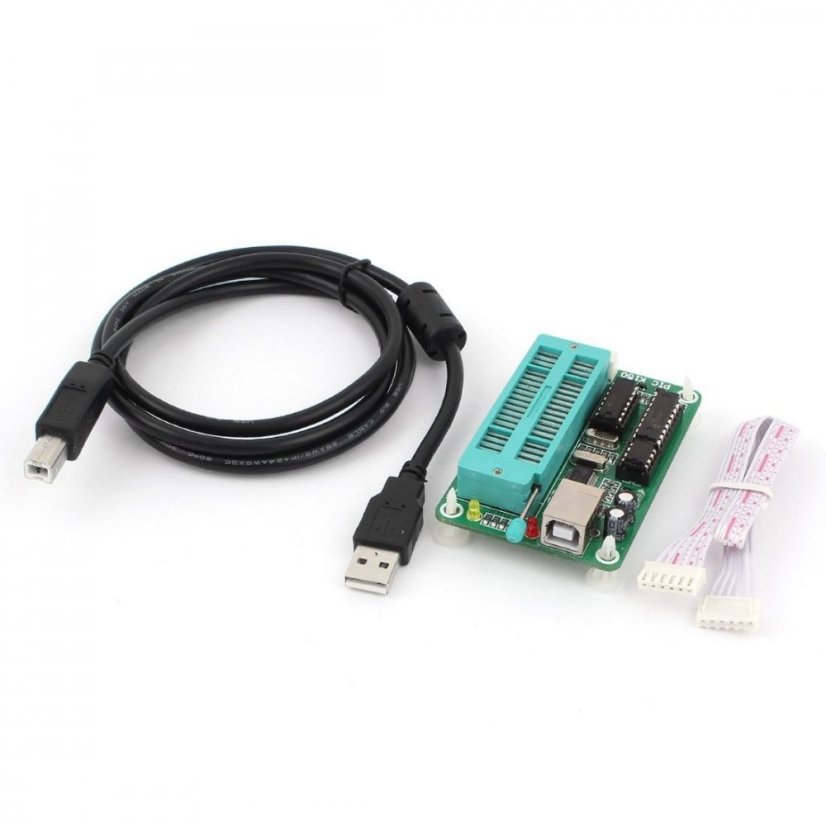

The package includes:

1 x Programmer

1 x ICSP cable
