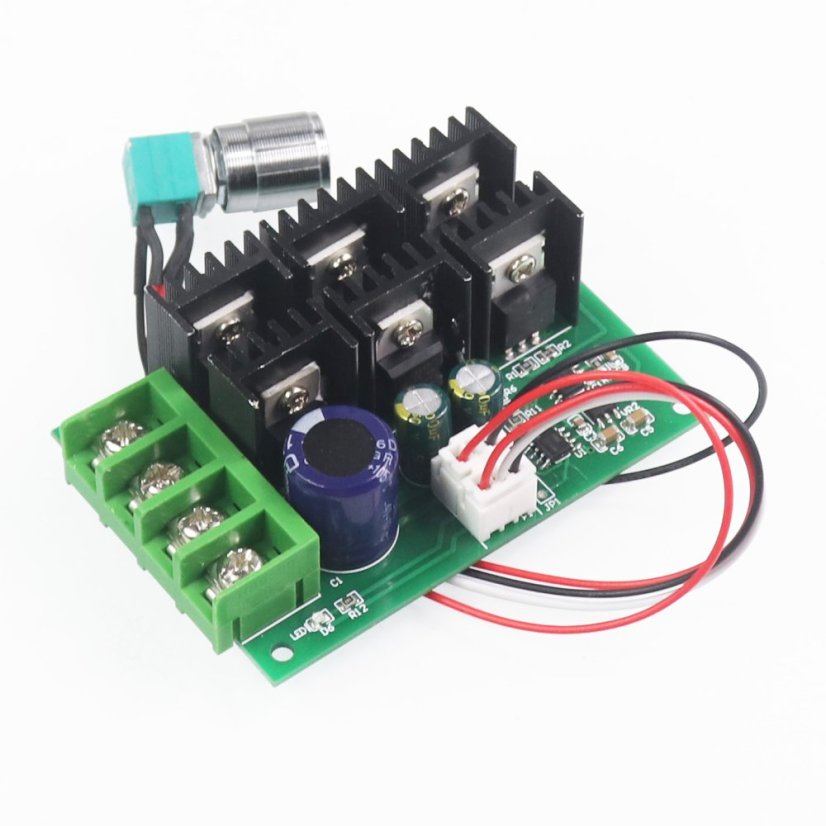

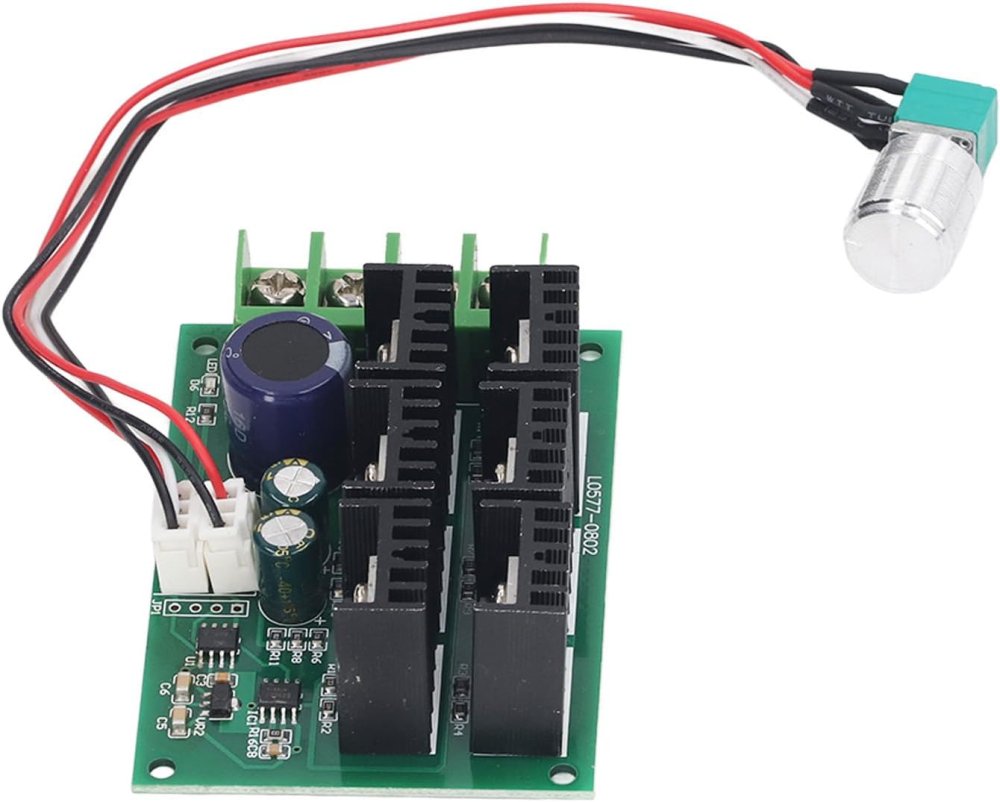

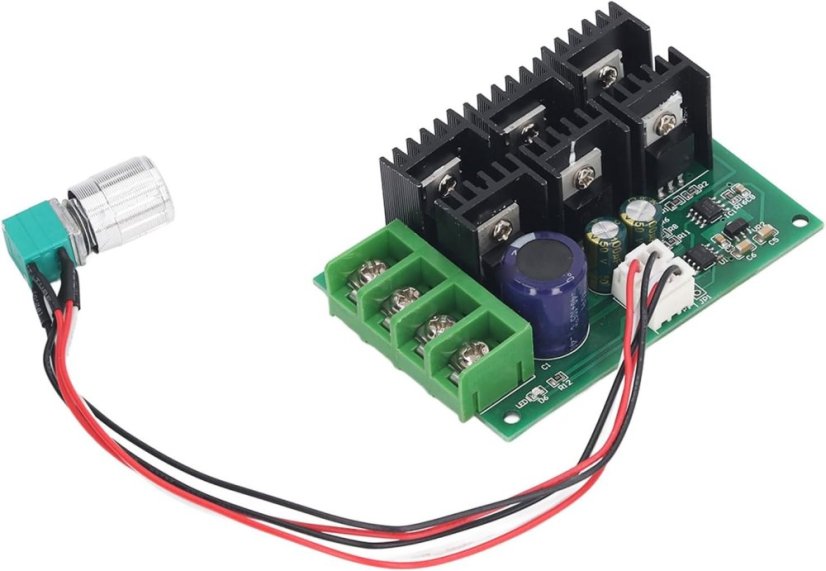

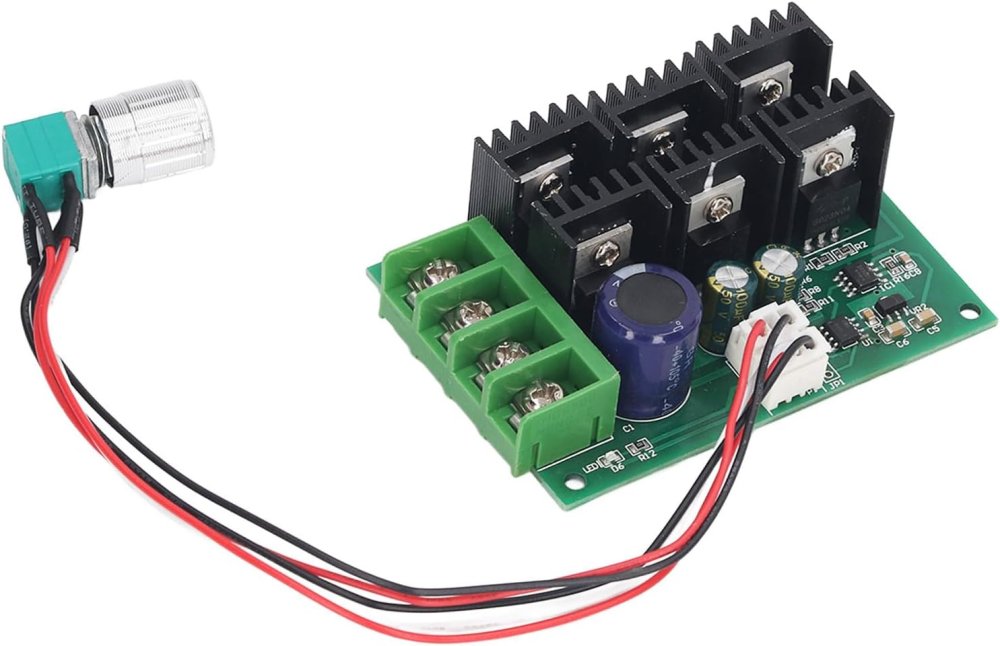

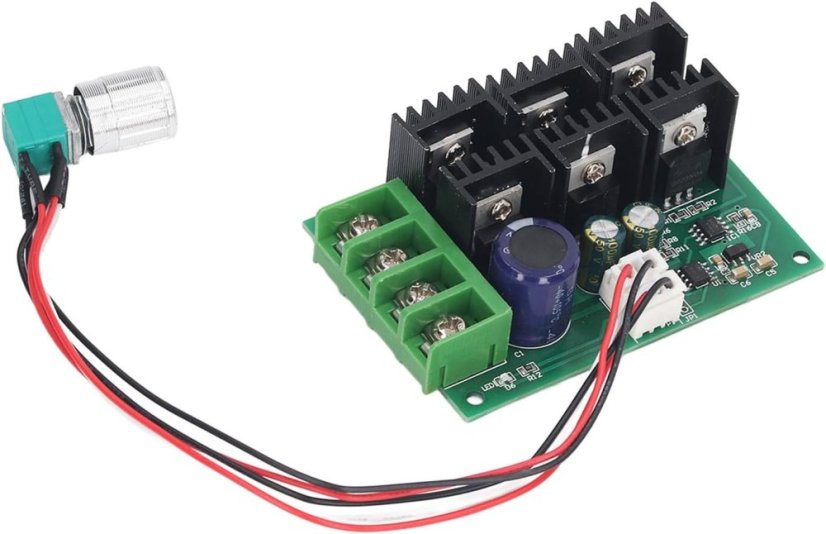

L0577-0802 PWM DC Motor Speed Controller 12-24V 20A

L0577-0802 PWM DC Motor Speed Controller 12-24V 20A

The L0577-0802 is a compact PWM motor speed regulator designed for precise control of DC motors. Operating on a wide 12-24V DC range, this controller can handle up to 250W at 12V and 350W at 24V, making it ideal for various DIY projects, industrial applications, and hobbyist uses like controlling high-power motors, fans, or LED dimming.

Specifications:

• Item Type: PWM Motor Regulator / Speed Controller

• Model: L0577-0802

• Power Supply Voltage: DC 12-24V

• Applicable Power: ≤ 250W (at 12V), ≤ 350W (at 24V)

• Maximum Current: 20A

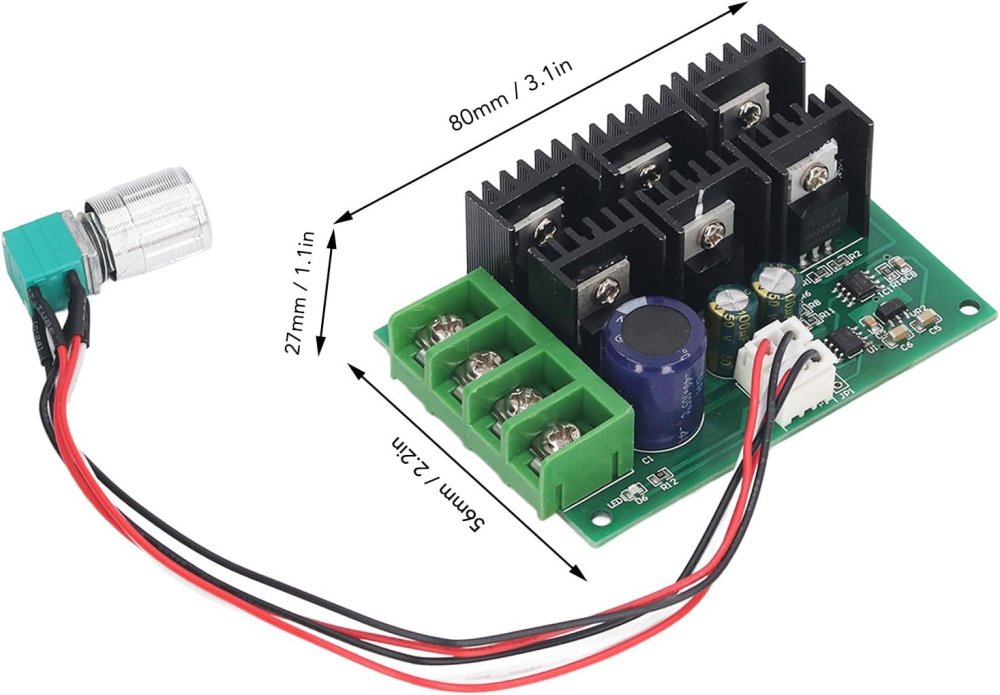

• Dimensions: 80 x 56 x 27 mm
