LED Push Button Switch 12-24V, 3A, 16mm, IP66 - Waterproof
LED Push Button Switch 12-24V, 3A, 16mm, IP66 - Waterproof
High-performance LED push button switch, designed for both indoor and outdoor use, with a waterproof rating of IP66. More
from
2,90 EUR
incl. VAT
High-performance LED push button switch, designed for both indoor and outdoor use, with a waterproof rating of IP66. More
Variants12
| LED push button – Latching | LED push button – Print | LED push button – LED color | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|---|
 |
without latching | without symbols | red | >= 5 pieces in Stock | 3,20 EUR | |||
|
without latching | without symbols | blue | >= 5 pieces in Stock | 3,20 EUR | |||
|
without latching | without symbols | green | Out of Stock Watch availability | 3,20 EUR | Demand | ||
|
without latching | I/0 | red | >= 5 pieces in Stock | 2,90 EUR | |||
|
without latching | I/0 | blue | >= 5 pieces in Stock | 2,90 EUR | |||
|
without latching | I/0 | green | >= 5 pieces in Stock | 2,90 EUR | |||
|
with latching | without symbols | red | >= 5 pieces in Stock | 3,40 EUR | |||
| Next | ||||||||
LED Push Button Switch 12-24V, 3A, 16mm, IP66
Specifications:
- Thread Diameter: 16mm
- Function (switch/button): with lock / without lock
- Contact configuration: NO, NO
- LED Color: red, blue, green, orange, white
- Printing (design): I/0
- LED Voltage: 12-24V AC
- Switching Current: 3A
- Switching Voltage: up to 220V
- Contact Resistance: < 50Ω
- Insulation Resistance: > 1000MΩ
- IP Protection Rating: IP66, IK09
- Mounting Type: Panel mount
- Material: nickel-plated brass
- Operating Temperature Range: -30 ~ +50°C

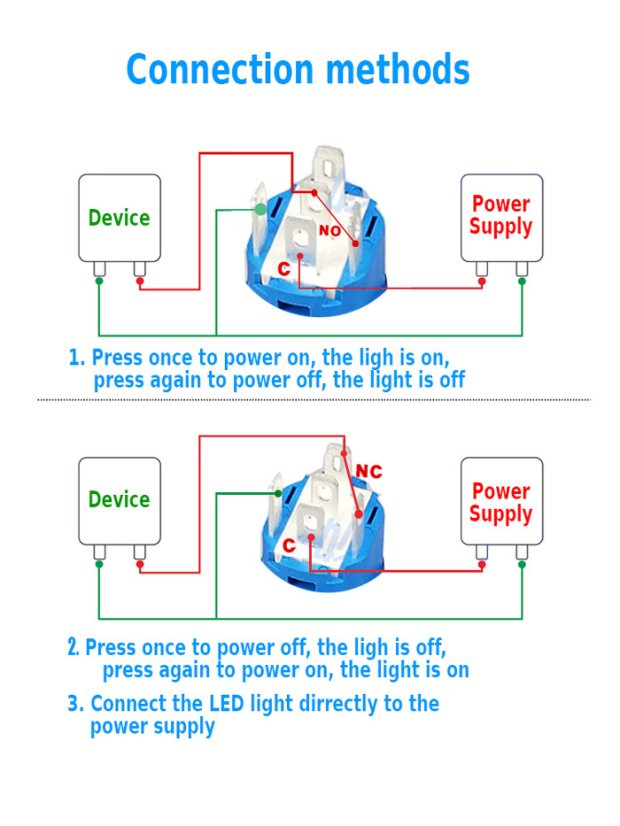

Usage: The switch activates upon pressing, and deactivates upon pressing again.
Package Contents:
1x LED Waterproof Switch 16mm

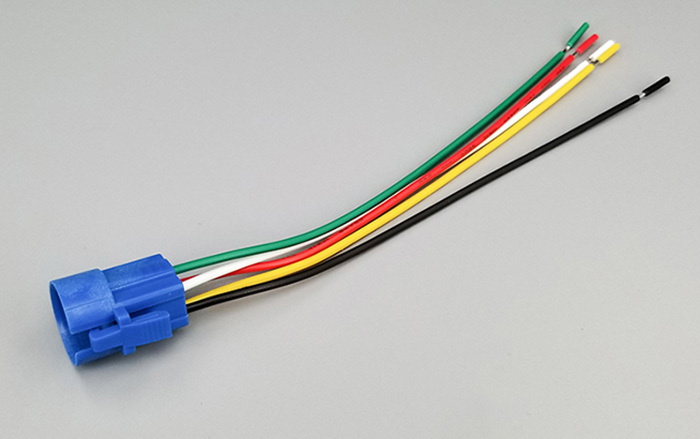

1x Connector with Wires
ON-OFF Variant
