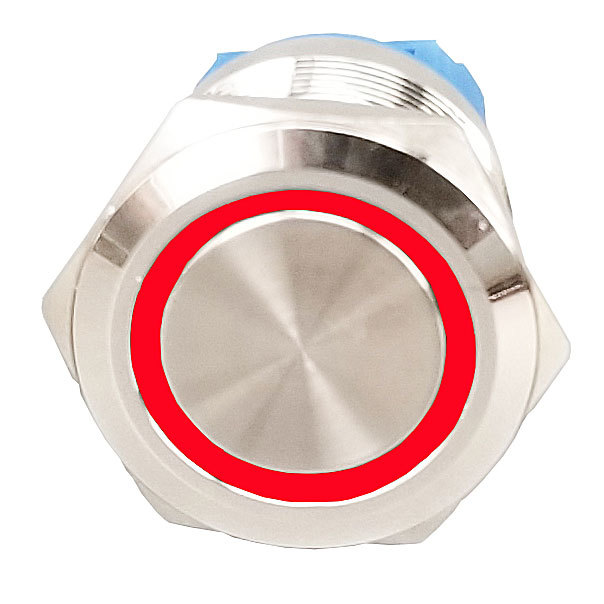

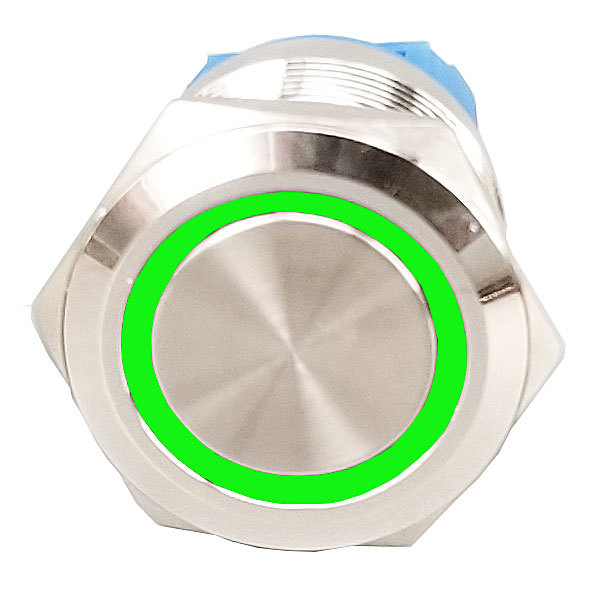

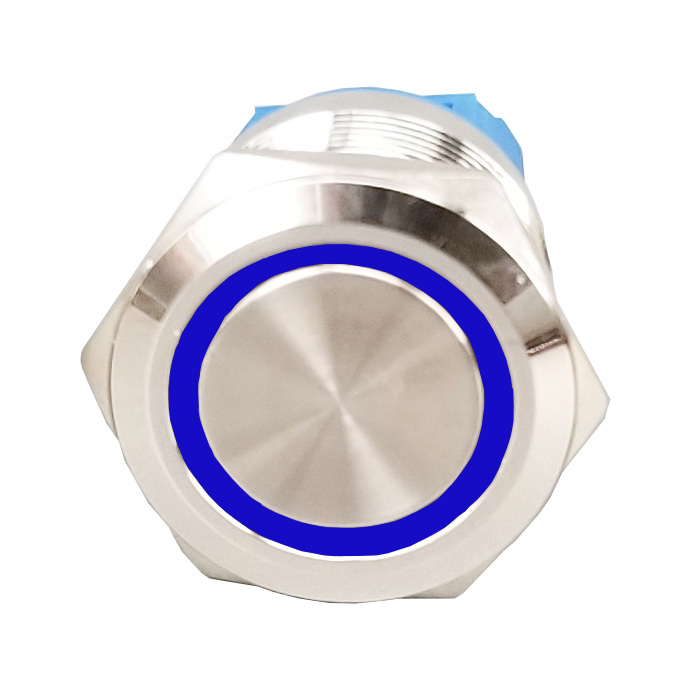

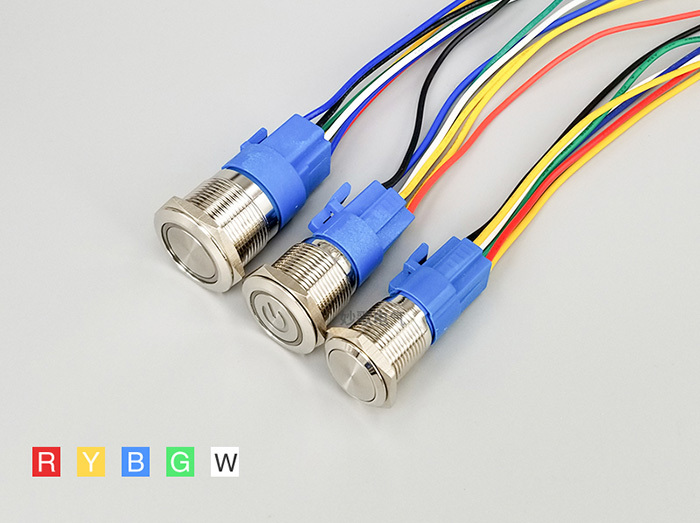

LED Push Button Switch 12-24V, 3A, 19mm, IP66
Variants12
| LED push button – Latching | LED push button – Print | LED push button – LED color | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|---|
 |
without latching | without symbols | red | >= 5 pieces in Stock | 4 EUR | |||
|
without latching | without symbols | blue | >= 5 pieces in Stock | 3,80 EUR | |||
|
without latching | without symbols | green | Out of Stock Watch availability | 3,80 EUR | Demand | ||
|
without latching | I/0 | red | >= 5 pieces in Stock | 3,80 EUR | |||
|
without latching | I/0 | blue | >= 5 pieces in Stock | 3,80 EUR | |||
|
without latching | I/0 | green | >= 5 pieces in Stock | 3,80 EUR | |||
|
with latching | without symbols | red | >= 5 pieces in Stock | 4 EUR | |||
| Next | ||||||||
LED Push Button Switch 12-24V, 3A, 19mm, IP66
Specifications:

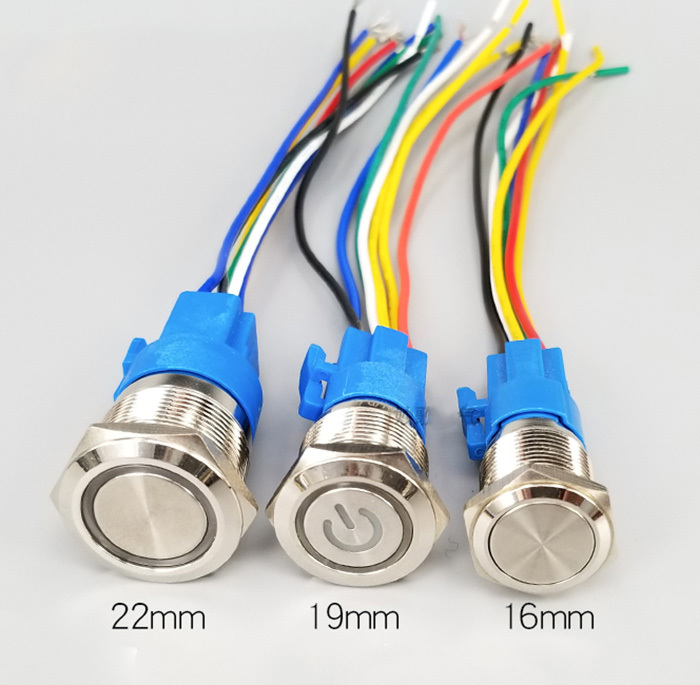

- Thread diameter: 19mm
- Function (switch/button): with locking / without locking
- Contact configuration: NO, NO
- LED color: red, blue, green, orange, white
- Printing (design): I/0
- Switching voltage: 12-24V AC
- Switching current: 3A
- Contact resistance: < 50Ω
- Insulation resistance: > 1000MΩ
- Protection degree IP: IP66, IK09
- Mounting type: Panel mount
- Material: Nickel-plated brass
- Operating temperature range: -30 ~ +50°C

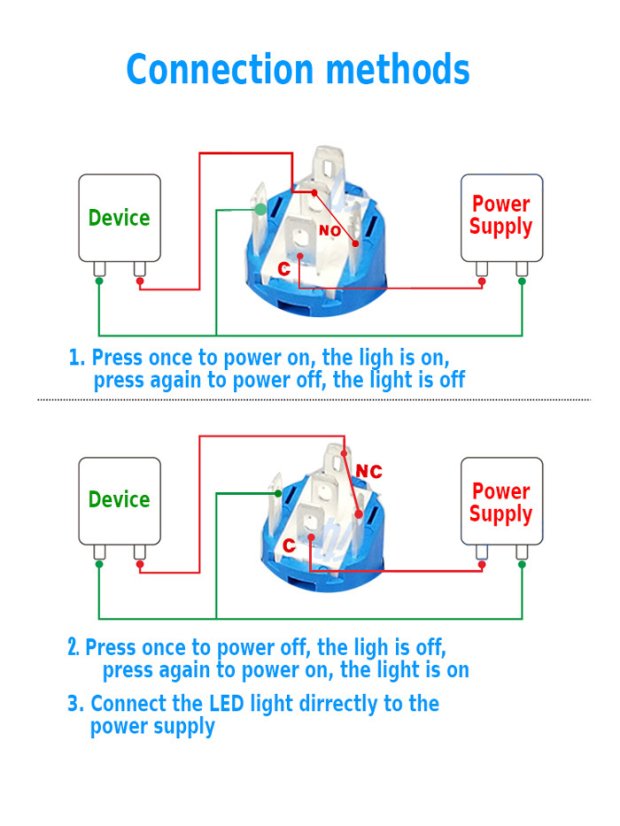

Usage: The switch turns on when pressed, and turns off upon pressing again.
Package content:

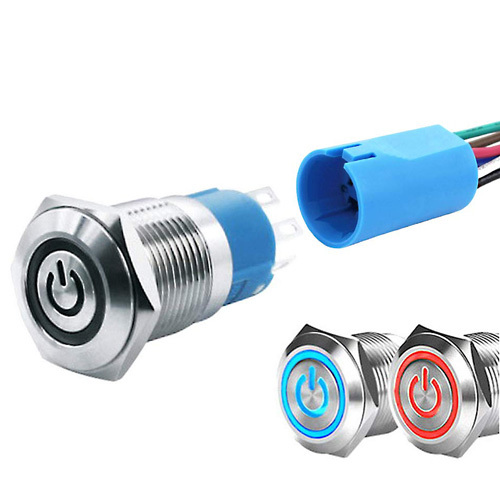

1x LED waterproof switch 19mm

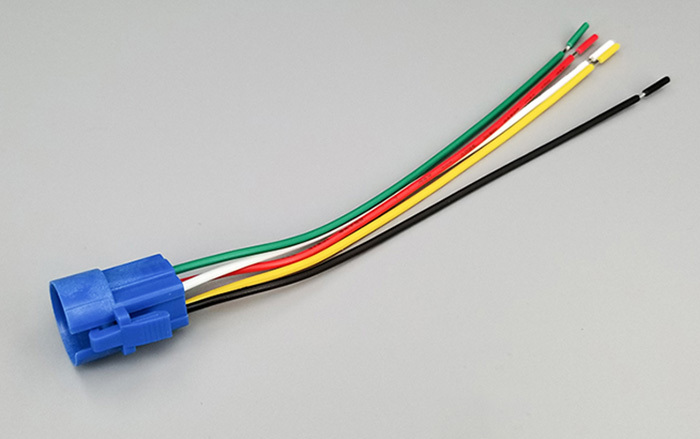

1x connector with wires

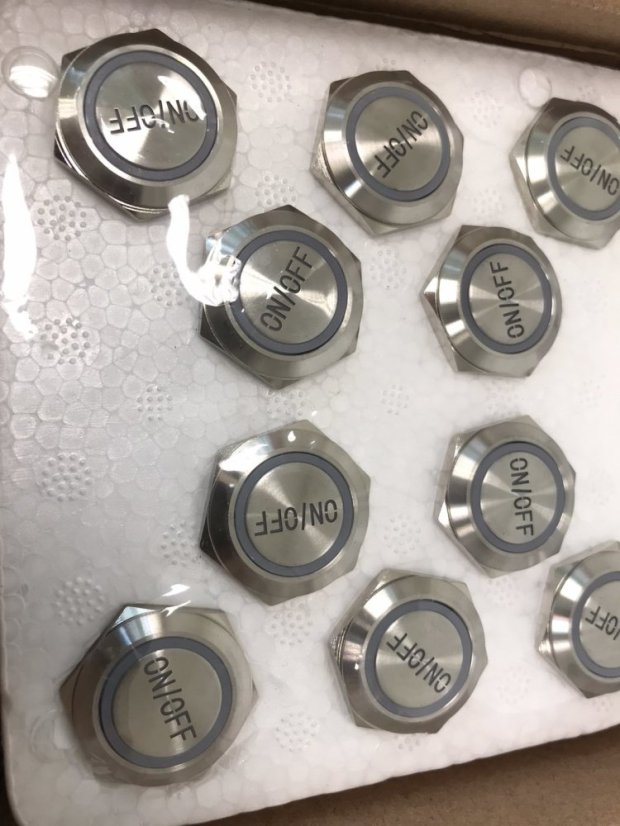

ON-OFF Variant
