LED Push Button Switch 220V with RGB LED - Waterproof IP65

LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65

Add to favourites Add to compare list

LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65

A high-quality LED push button switch with RGB LED, designed for durability and versatility. More
Manufacturer: NEVEN Product code: P12100 Shipping and payment
from 7,40 EUR incl. VAT
Variant does not exist
A high-quality LED push button switch with RGB LED, designed for durability and versatility. More
Manufacturer: NEVEN Product code: P12100 Shipping and payment

Variants10

LED push button – LatchingLED push button – LED color Availability Price incl. VAT Quantity (ks)
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 without latching red in stock 7,40 EUR
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 without latching blue in stock 7,40 EUR
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 without latching green in stock 7,40 EUR
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 without latching white Out of Stock Watch availability 7,40 EUR Demand
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 without latching gold Out of Stock Watch availability 7,40 EUR Demand
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 with latching red in stock 7,80 EUR
LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65 with latching blue Out of Stock Watch availability 7,80 EUR Demand
Next

LED Push Button Switch 220V with RGB LED, 5A, 19mm, 4 Pins, Waterproof IP65

Specifications:

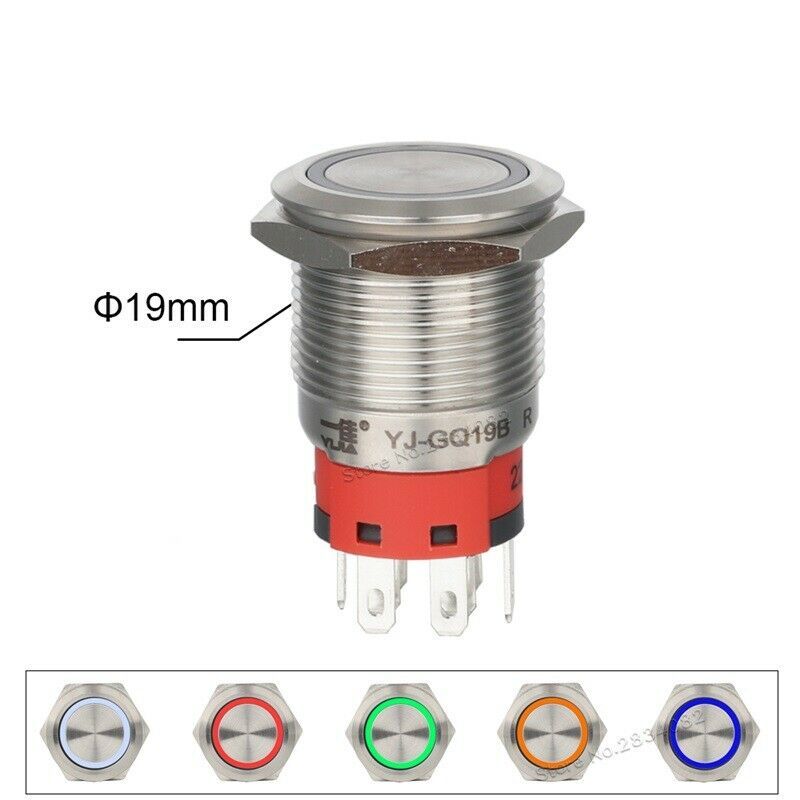

  • Thread Diameter: 19mm
  • Function (switch/button): with locking/without locking (returns)

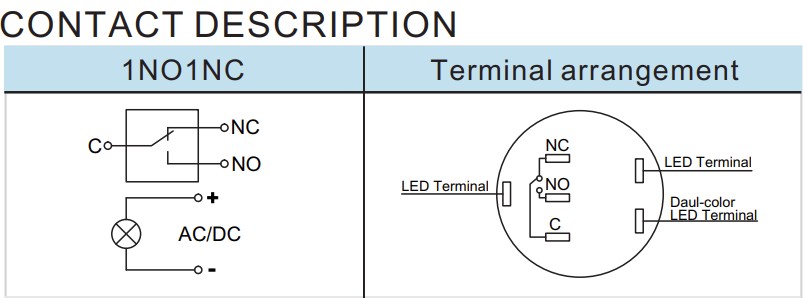

  • Contact Configuration: 2NO, 2NC
  • LED Color: red, blue, green, orange, white
  • Print (design): none
  • Switching Voltage: 3~220V AC
  • Switching Current: 5A
  • Number of Contacts: 4
  • Contact Resistance: < 50Ω
  • Insulation Resistance: > 1000MΩ
  • IP Rating: IP65, IK09
  • Mounting Type: Panel mount
  • Material: stainless steel
  • Operating Temperature Range: -30 ~ +50°C

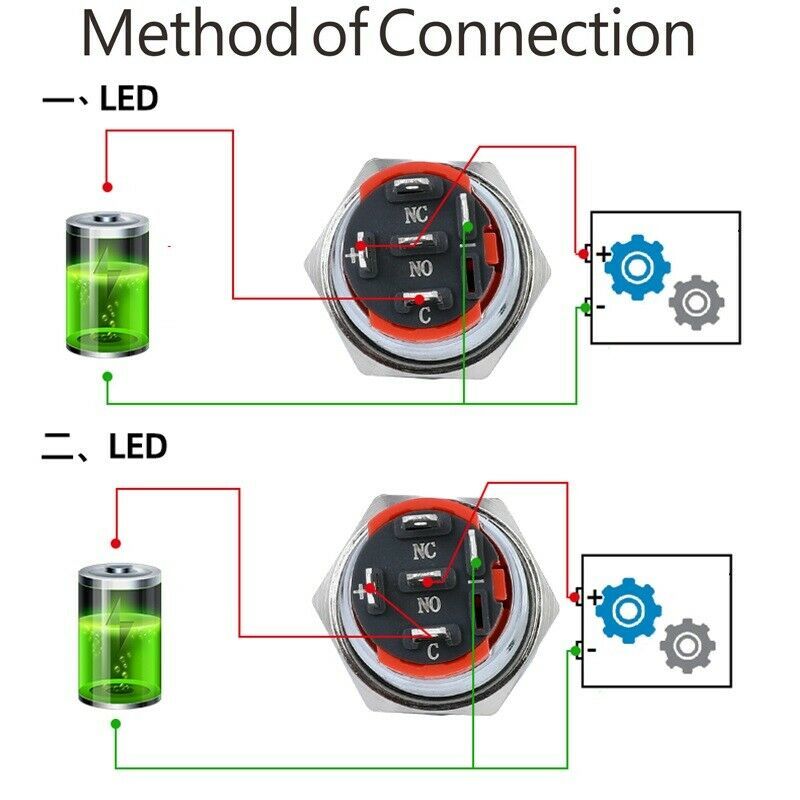

Usage: The switch turns on when pressed and turns off when pressed again.

Datasheet: JIA GQ19B

Package Contents:
1x LED waterproof switch 19mm
1x connector with wires
