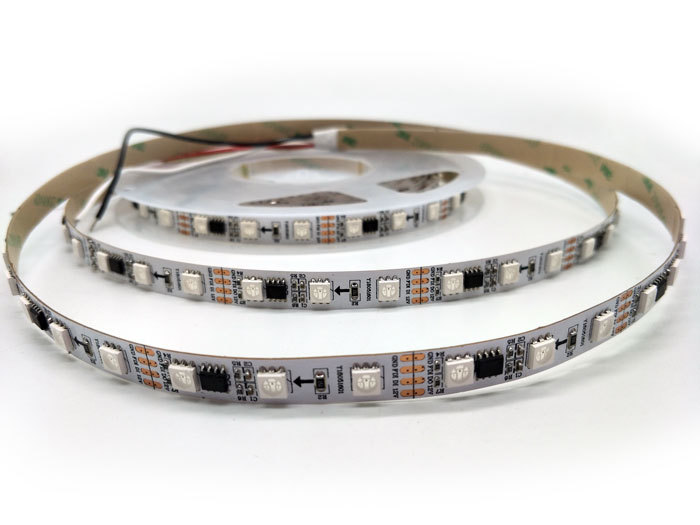

LED Strip TM1914A-12V SMD 5050, 5m, 60pcs/m, 14.4W/m
LED Strip TM1914A-12V SMD 5050, 5m, 60pcs/m, 14.4W/m

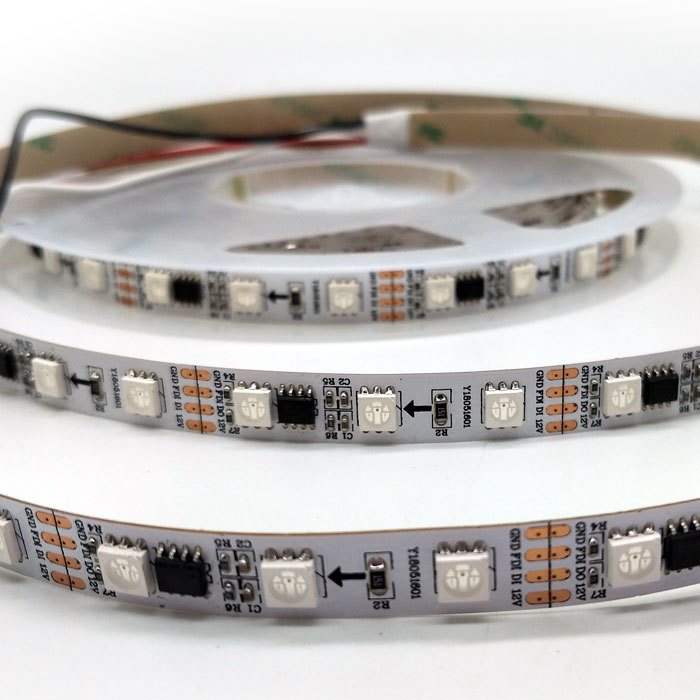

This digital RGB strip operates at 12V and is controlled by the TM1914A chip integrated directly into the LEDs. The power of the strip is 14.4W/m and it is equipped with 60 LEDs/m.
Each LED can be controlled individually: 1 LED = 1 pixel.
Control of these strips is done via special controllers or PC software combined with a control unit. The strip can also be managed by controllers designed for strips with SK6812 or APA104 chips.
Key Features:
- Ability to control each diode individually
- DC 12V power supply
- Power consumption of 14.4W/m and 60 LEDs/m
- Strip can be cut every 3 LEDs (50mm)
- High-quality integrated control chip TM1914A
- Protection rating - IP20/IP65
Specifications:
| Model: | TM1914A-12V | |

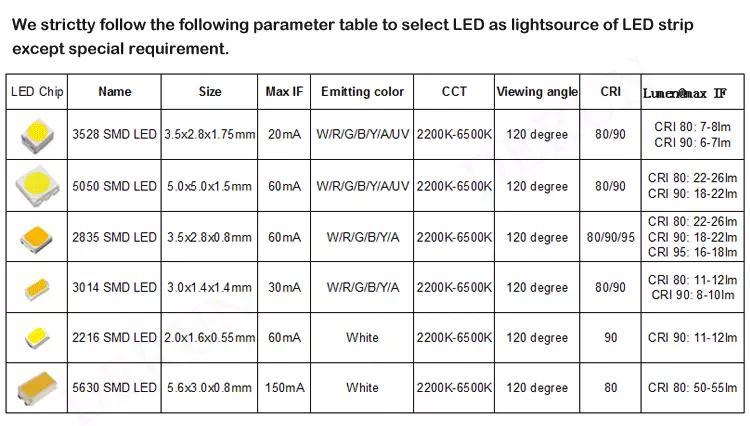

| LED Chip | Epistar SMD 5050 | |
| Control Chip | TM1914A | |
| Color Variant | RGB | |
| Input Voltage | 12V DC | |
| Power Consumption | 14.4W/m | |
| Number of LEDs | 60/m | |
| Beam Angle | 120° | |
| Luminous Flux | 22-24lm/LED | |
| Operating Temperature | -15°C to max. 60°C | |
| Lifetime | up to 50,000h | |
| Strip Width | 10mm | |
| Strip Height | 2.4mm | |
| Length on Reel | 5m | |

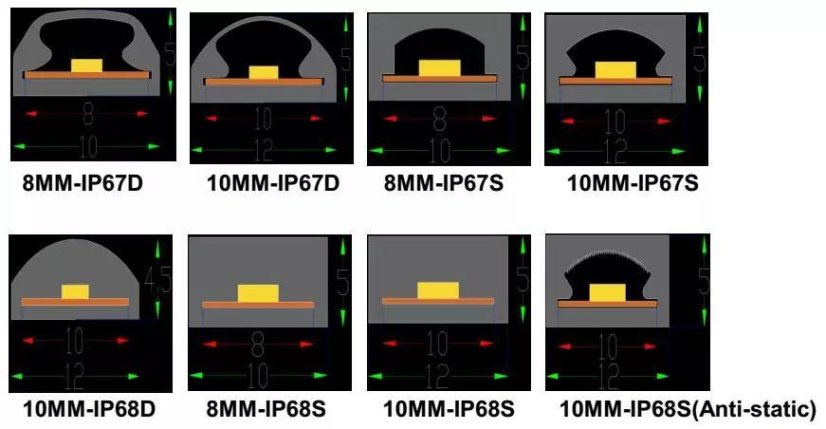

| Protection | none/IP67 | |
| 3M Adhesive Tape | YES | |
| Maximum Connection Length | 5m | |
| Cutting Interval | every 5cm | |
TM1914A-12V without protection (IP20)
