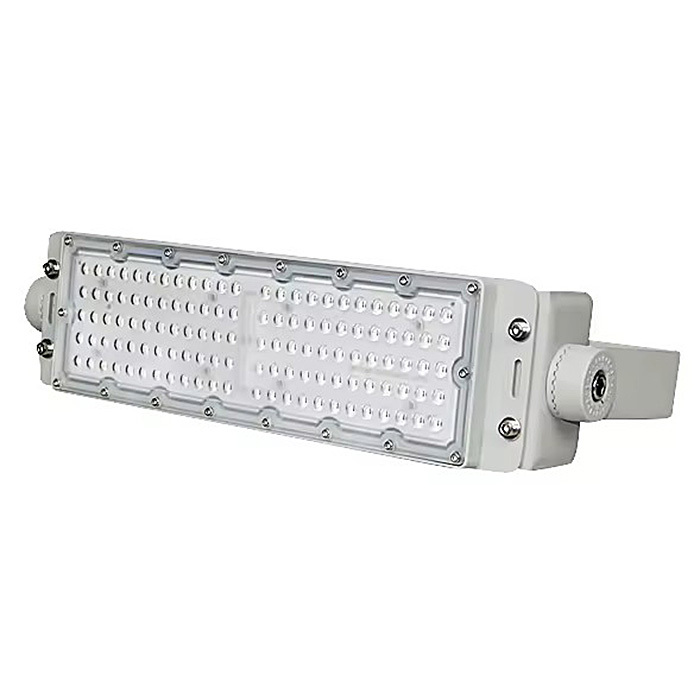

LED UV Lamp for Conveyor Belts IP65 XL-A100 100W

High-Performance UV Lamp for Conveyor Belts 100-600W

This high-performance UV lamp is designed for conveyor belts with a power output ranging from 100 to 600 W. With an IP66 rating, it is suitable for use in demanding conditions, such as in paper mills, for water disinfection, and for outdoor applications. Particularly effective for curing coatings, adhesives, and sealants based on materials sensitive to ultraviolet radiation.

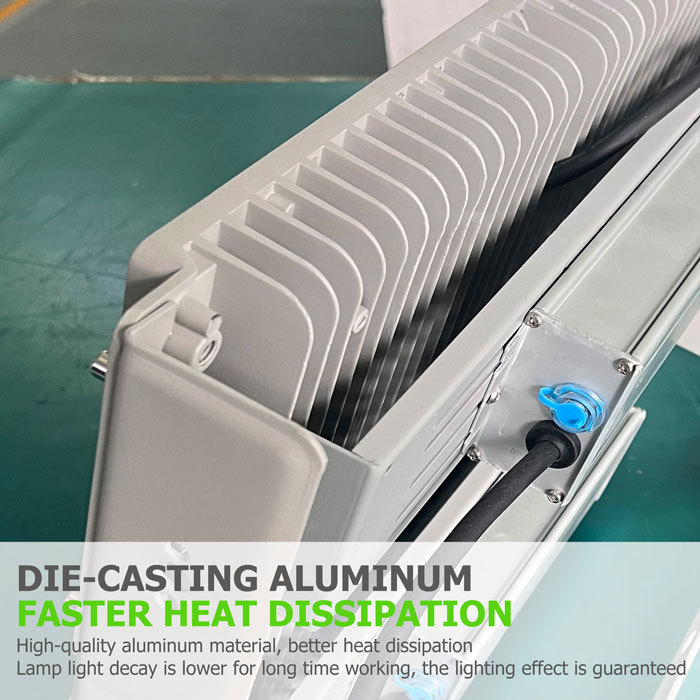

The UV lamp is equipped with UV LEDs, each with an output of 1 W. Thanks to its robust metal housing, it provides excellent heat dissipation and is suitable for continuous operation 24/7 due to its fanless design.

• Power output from 100 to 600W
• Fanless, high heat dissipation

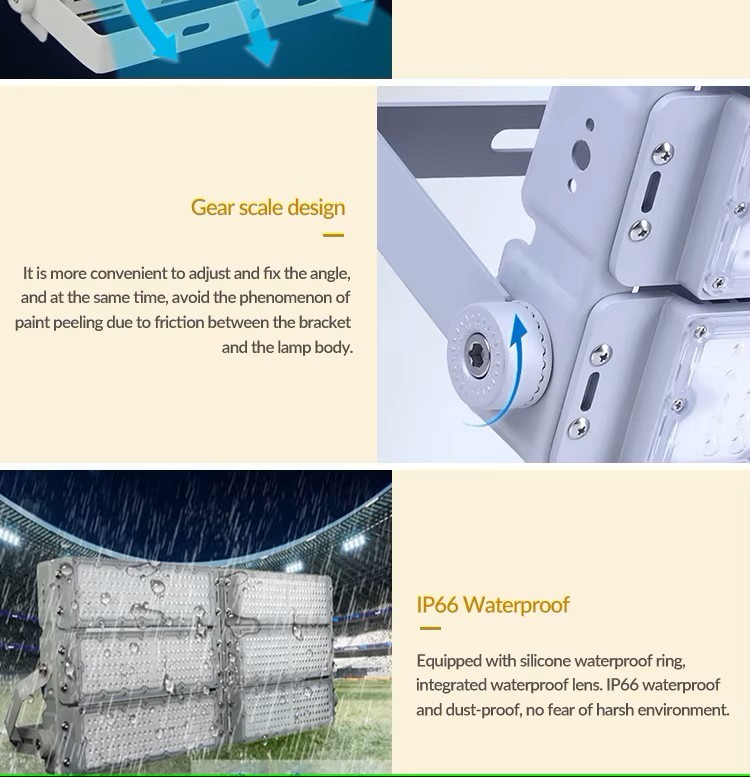

• IP66
• Designed for 24/7 operation

Specifications:

• Model: XL-A100
• Power: 100–600 W
• Wavelength: 395 nm
• LEDs: 120 pcs (5x24)
• Input Voltage: AC100–277 V
• Beam Angle: 30°/60°/90°
• Lifespan: ≥50,000 hours (LM70 @ 35℃)
• IP Protection Rating: IP65 (this is a customized UV model, and its waterproofness is one level lower than that of models with white light)
• Mechanical Protection Degree IK: IK08
• Surface Finish: Sprayed outdoor special powder

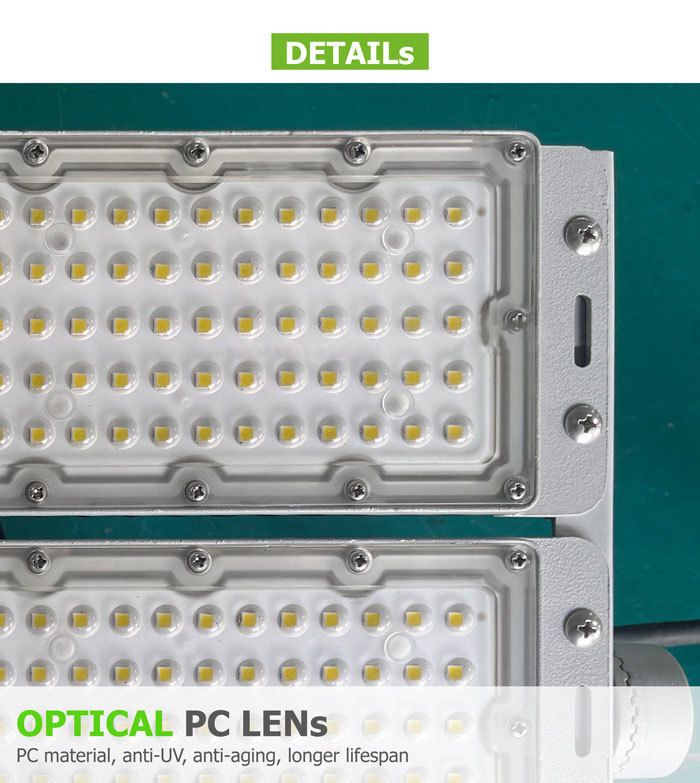

• Body Material: PC lens + aluminum housing
• Power Cable: Rubber cable (3*1 mm²) L=0.5 m
• Electrical Safety Class: Class I
• Operating Temperature: -35 to 55 ℃
• Humidity: 15% to 90% RH, non-condensing

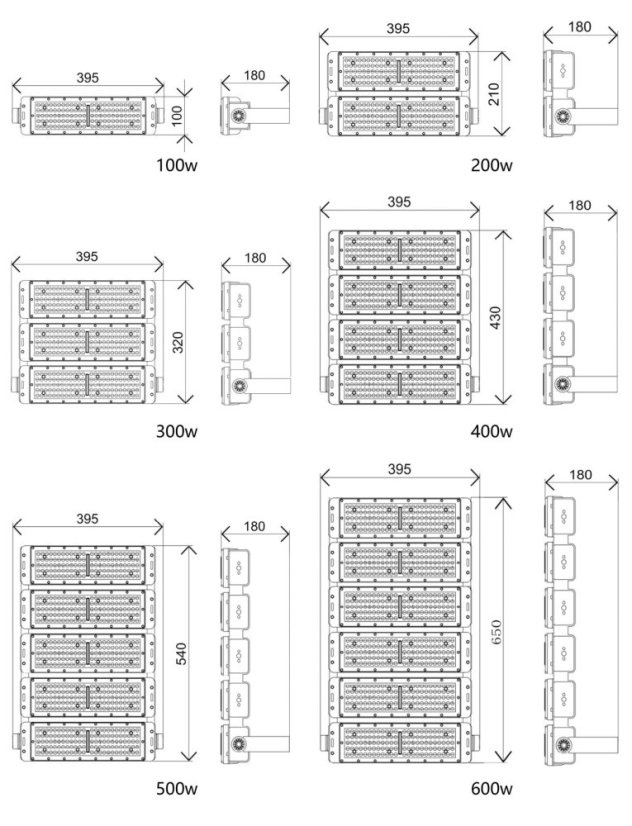

• Dimensions (mm): see drawings below
• Weight: 2.5 kg
