LH-W25B-DV1 Universal eDP TFT Display Control Board with Audio Input

Universal HDMI to eDP board with a maximum resolution of 1920x1080. Easy resolution configuration using jumpers, powered by 12V.

Specifications

  • Model: LH-W25B-DV1 (LHB05B-H5VDWA)
  • Chip: RTD2556
  • Resolution: 1920x1080

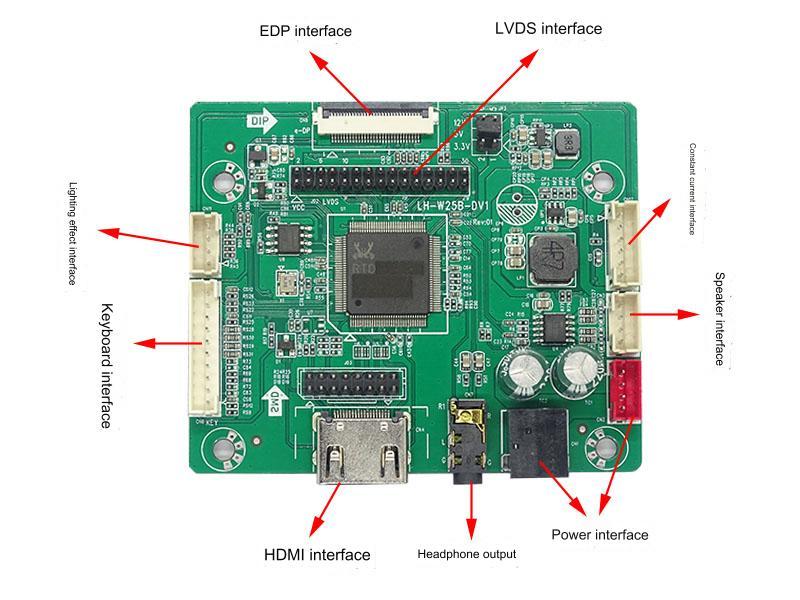

  • Input: HDMI
  • Output: eDP, 30-pin FFC connector + 2x15 pin Dupon
  • Audio Input: Yes
  • Keyboard: Yes
  • Power Supply: 12V

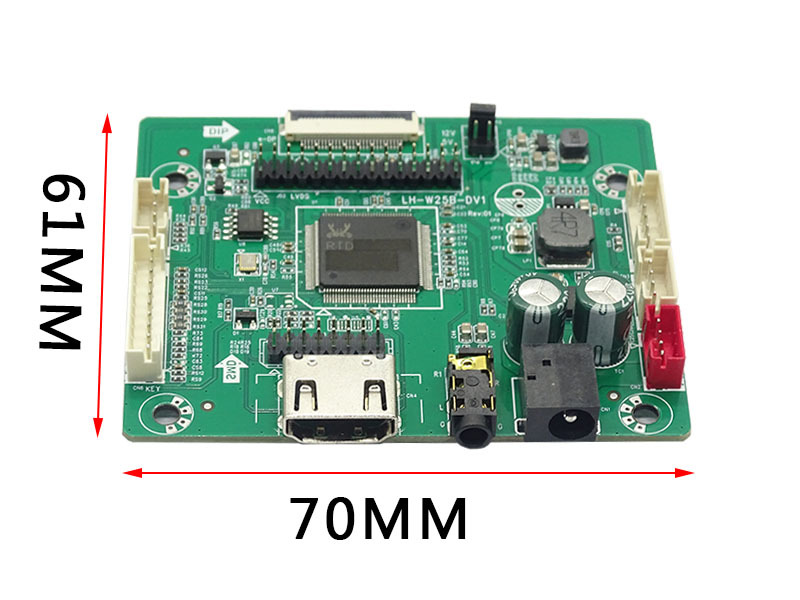

  • Dimensions: 76x63mm (approximately 2.99x2.48 inches)

Package Includes:

1x Control Board
