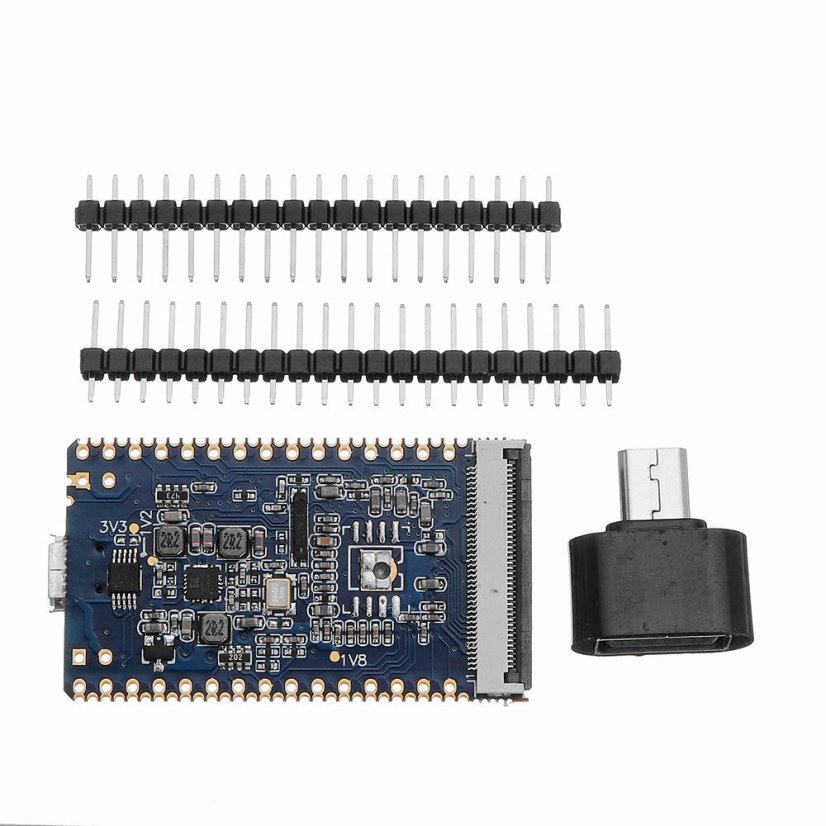

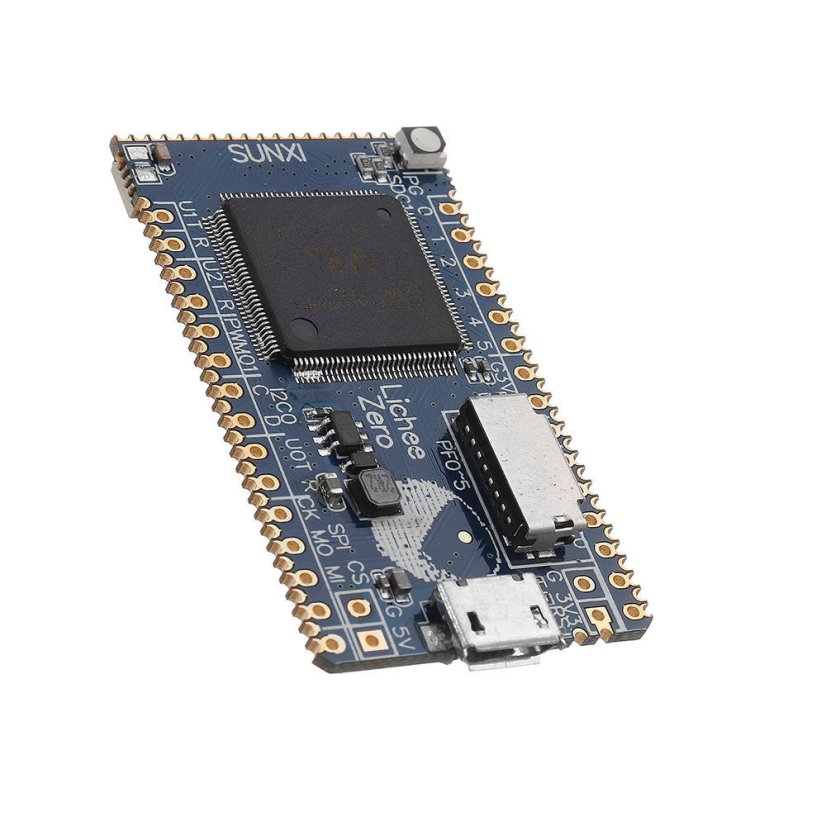

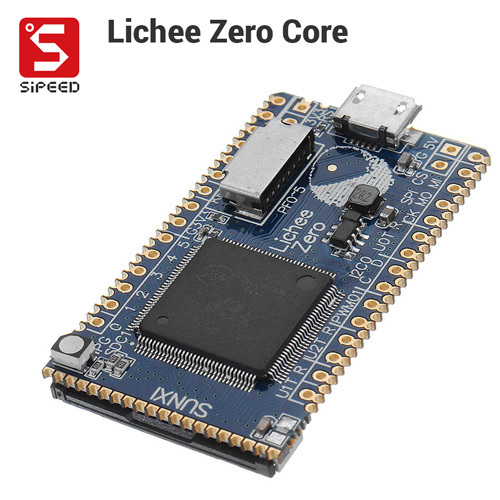

Lichee Pi Zero Cortex-A7 CPU 1.2GHz 512Mbit DDR2 Board

Lichee Pi Zero Cortex-A7 CPU 1.2GHz 512Mbit DDR2 Board

The Lichee Pi Zero is a compact mini Cortex-A7 core board/development board designed for beginners who want to learn to work with Linux or commercial development products.

This board utilizes the Lichee Pi Zero core, based on the Allwinner V3S (ARM Cortex-A7 CPU, up to 1.2GHz, 512Mbit DDR2 integrated), and can boot from SPI Flash or TF card. (the current mainline only supports TF card)

The Zero features various low-speed peripherals, common in most MCUs: GPIO, UART, SPI, I2C, ADC, PWM...

Additionally, it has other useful high-speed interfaces: OTG USB, MIPI CSI, EPHY, RGB LCD...

It also includes an audio codec; you can connect it directly to headphones or a microphone.

Lichee Pi Zero Specifications:

• SoC - Allwinner V3S ARM Cortex A7 processor @ up to 1.2 GHz with ARM Mali-400 GPU, 512Mbit (64MB) DDR2 on-chip
• Storage - micro SD card slot, SPI flash (not 100% clear if it will be filled during design)
• Display - FPC40 RGB connector supporting 800×480 RGB LCD
• Audio - Audio codec
• USB - micro USB OTG port

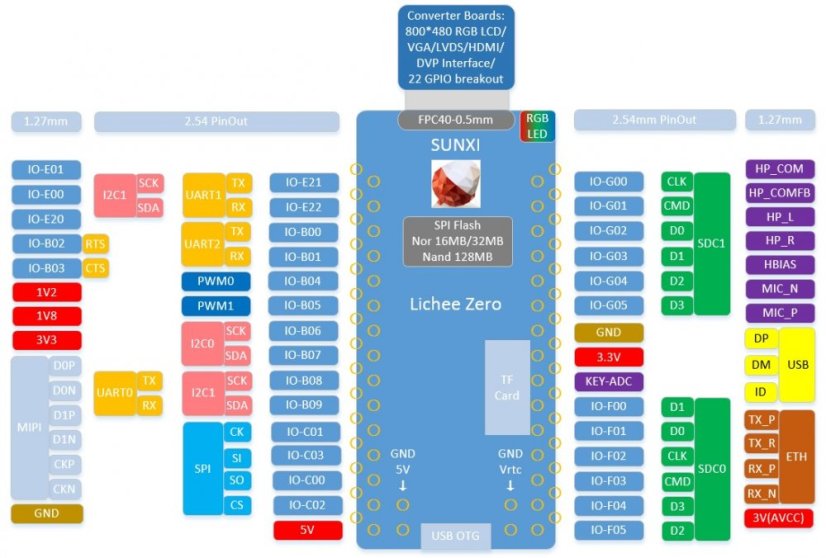

• Expansion
  • 2x 15 header with 2.54mm pitch, breadboard friendly featuring GPIO, 2x UART, 1x SPI, 2x I2C, ADC, 1x PWM
  • 2x 30 through holes with 1.27mm pitch for OTG USB, MIPI CSI, EPHY, RGB LCD, more GPIOs
  • RGB connector may have additional boards for GPIO, LVDS, HDMI, VGA, etc...
• Miscellaneous - RGB LED
• Power - 5V via micro USB port, or 5V/GND header
• Dimensions - 44.6×25.5mm

For more information: https://www.indiegogo.com/projects/licheepi-zero-6-extensible-linux-module-on-finger-wifi-diy#/
