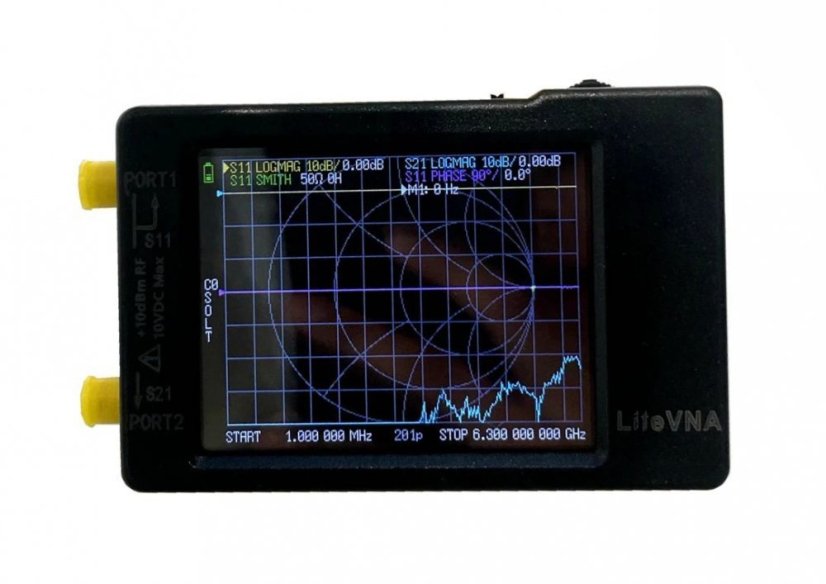

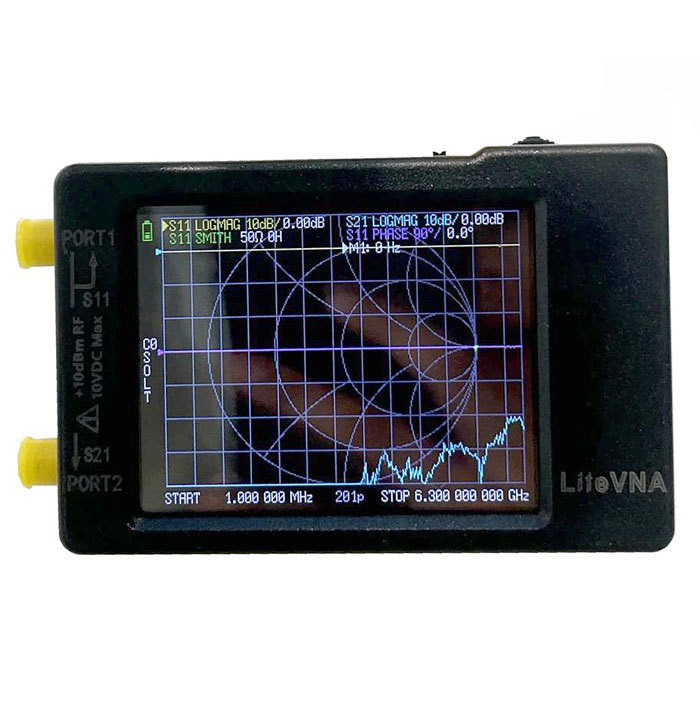

LiteVNA 6GHz Portable Vector Network Analyzer

LiteVNA 6GHz Portable Vector Network Analyzer

The LiteVNA is an enhanced version of the popular NanoVNA and SAA2. Now you can have a portable vector network analyzer (VNA) that is as small as the NanoVNA while being capable of performing ultra-wide range measurements from 50 kHz to 6.3 GHz. To minimize power consumption and size, the LiteVNA uses only one mixer with several internal RF switches to measure S11 and S21 and IFFT calculations for TDR and DTF measurements.

The LiteVNA, designed with the community's requirements in mind, now offers wider measurement ranges, higher scanning speeds, and more scanning points. Combined with a user-friendly interface consistent with the NanoVNA, the LiteVNA can easily be used as a testing tool in the field.

The LiteVNA includes a MicroSD slot, allowing you to save data or snapshots from field tests onto a MicroSD card at any time. With a measurement range of up to 6.3 GHz, the LiteVNA meets the needs of common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the use of the latest 5.8GHz Wi-Fi and 5.8GHz video transmission.

Specifications:

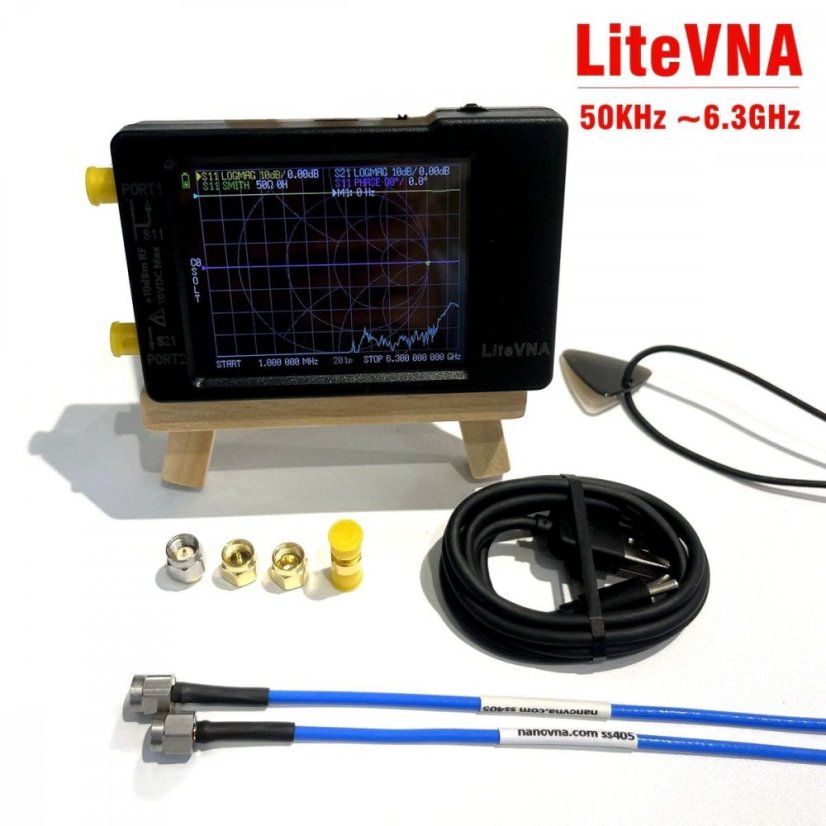

Included:

• LiteVNA (with 1300mAh battery, 2.8" display)
• USB-C cable
• 2pcs SS405 SMA RF cables 30cm
• 4x SMA connectors

Manual (EN): http://nanovna.com/wp-content/uploads/2021/11/LiteVNA_User-Guide.pdf

FW and SW: https://drive.google.com/drive/folders/10lU5xnwmHDnPX98z21ky09N8nb_cEOk4?usp=sharing

LiteVNA 62, 2.8"

LiteVNA 64, 3.95"

In Comparison to the Rohde & Schwarz ZVB8
