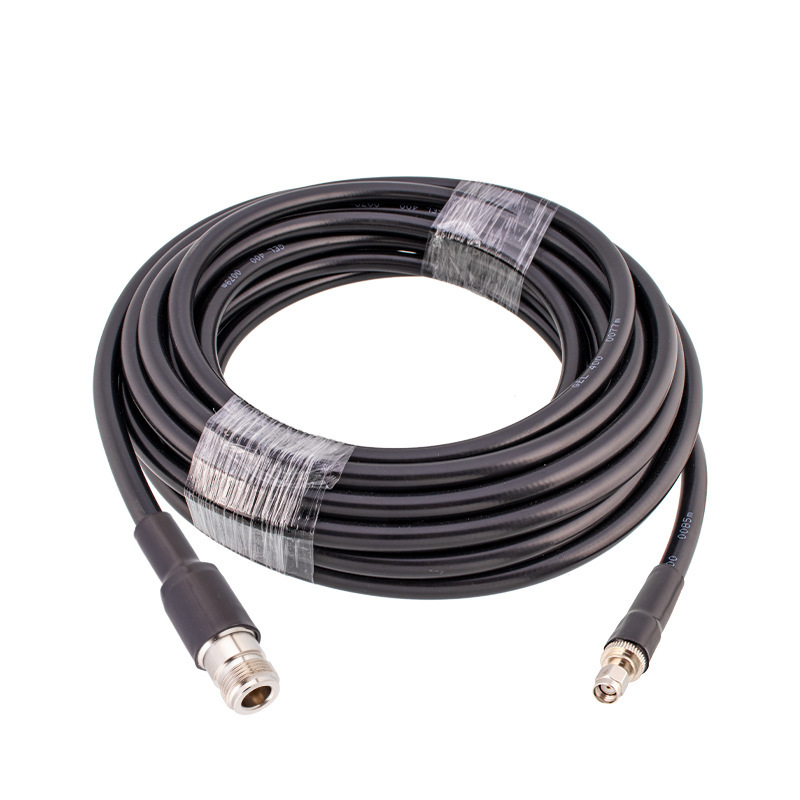

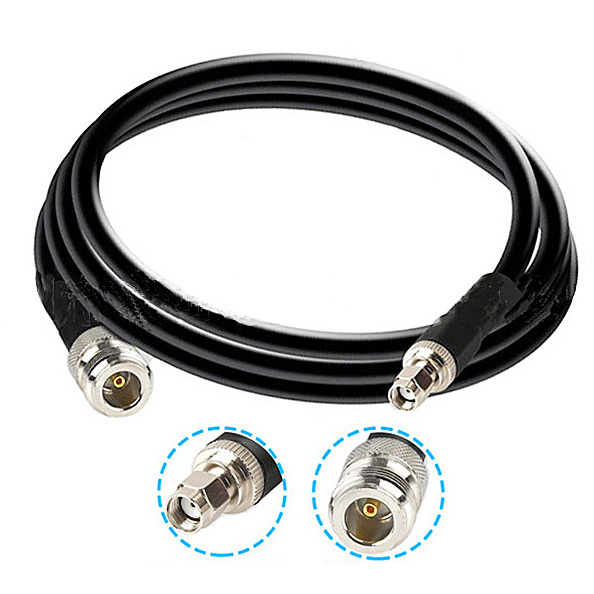

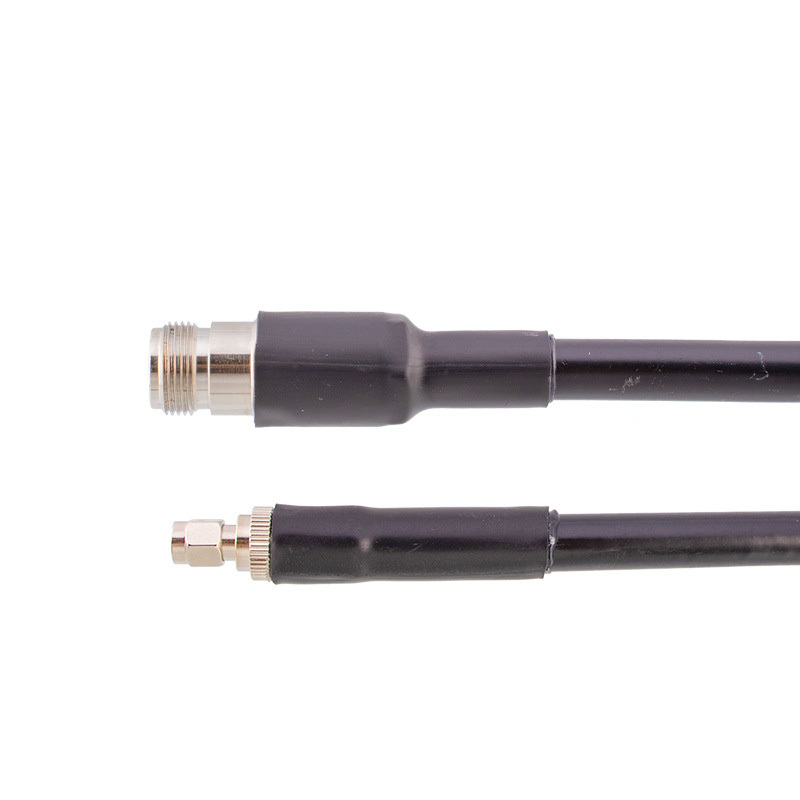

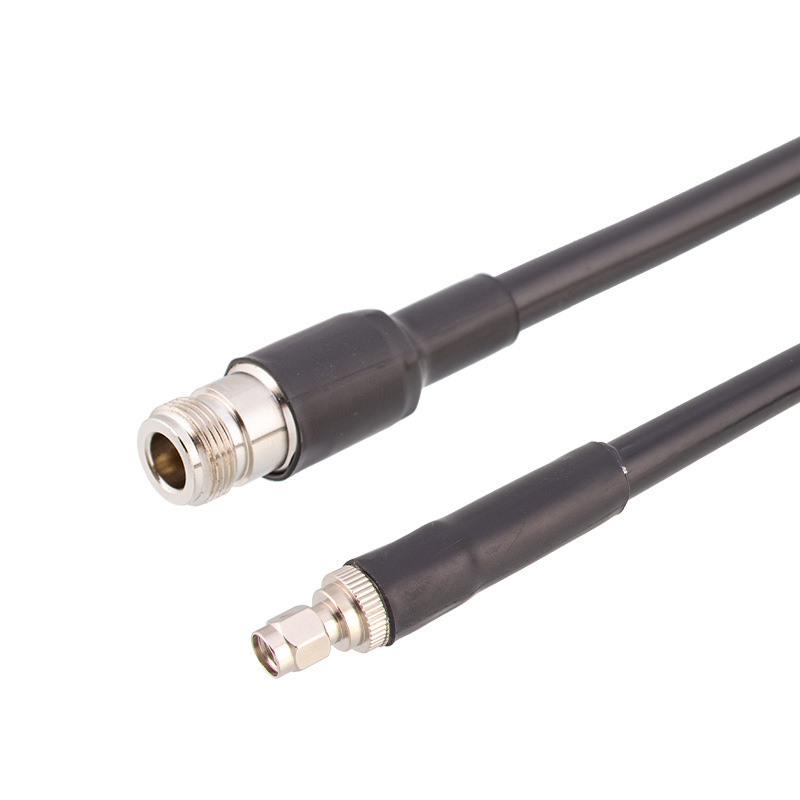

Coaxial Cable LMR400 with N-Type and RP SMA Connectors

High-Quality Coaxial Cable LMR-400 (L400) with N-Type - RP SMA Connectors

The LMR400 coaxial cable covers a frequency range from DC to 6GHz. This is a low-loss, high-performance, and flexible RF coaxial cable. It features additional environmental protection measures for both indoor and outdoor use. Widely used in military and civilian communications, RFID systems, satellite communication systems, 3G base station communications, and various low-cost radar systems.

Features:

• Low insertion loss and VSWR
• Excellent electrical performance
• Good flexibility, minimum bending radius of 4 inches (10.16 cm)
• Good weather resistance, maximum operating temperature up to 185°F (85°C)
• Customization of cable lengths/connectors

Specifications:

• Frequency Range: DC(0)-6GHz
• VSWR: <1.25:1
• Typical Attenuation: <0.1dB/m @ 900MHz
• Capacitance (pF/m): 77.8±2
• Velocity (%): 85.7
• Shielding Effectiveness (dB): >80
• Operating Range: -4°F to 185°F (-20°C to 85°C)
