Logical Analyzer LA104

The LA104 is a four-channel logic analyzer with a built-in screen and battery. Its construction is made from CNC machined aluminum alloy.

Thanks to its compact and portable design, this unit offers a versatile and powerful solution for your analytical needs!

Specifications:

● Memory: 8MB USB flash drive
● Screen size: 2.8''
● Screen resolution: 320 × 240
● Battery: 500 mAh

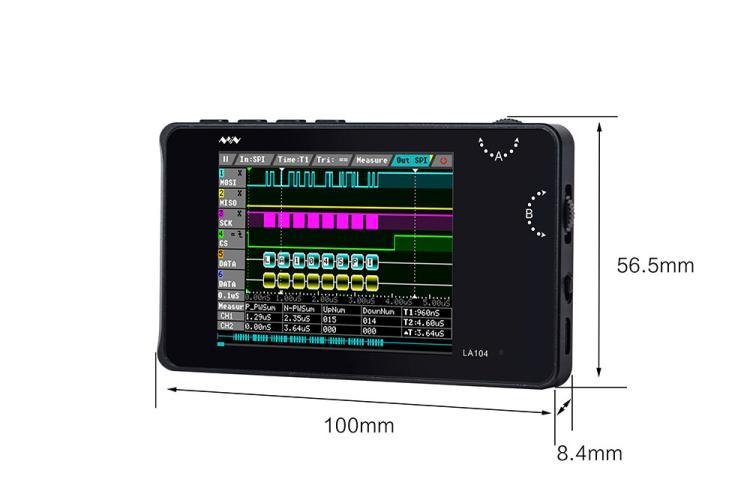

● Dimensions: 100 × 56 × 8.6 mm (3.94 × 2.20 × 0.34 inches)
● Weight: 83 g (0.18 lbs)
● Certifications: CE, FCC

Input:
● Channels: 4
● Maximum sampling rate: 100 Msa/s
● Minimum pulse width: 10 ns
● Input impedance: 1 MΩ

Output:
● Channels: 4
● Mode: SPI, I2C, UART
● 3V output channel: 1

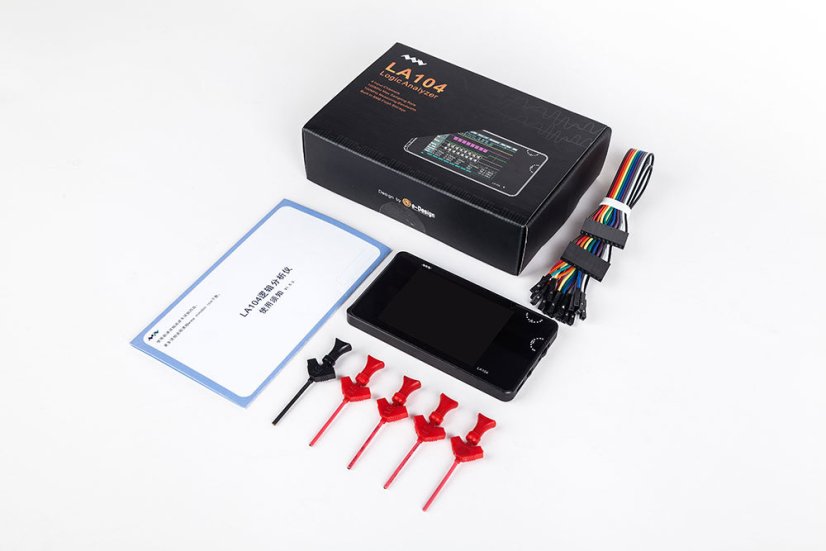

What's included?

1 x Digital Logic Analyzer LA104
20 x DuPont Connector
5 x Probe Hook
1 x English Manual
