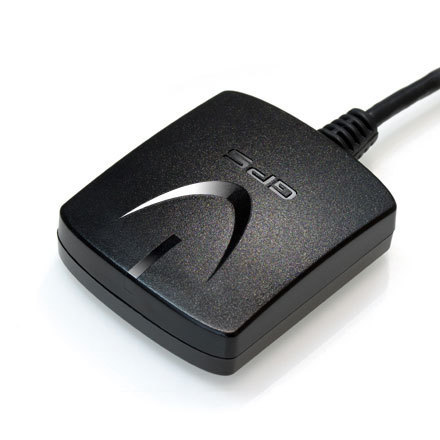

LS23030-UDG GNSS USB Receiver Mouse, 2m cable, 115200bps

The LS2303x-UDG series products represent complete GNSS receivers with proven technology. These units contain the LOCOSYS MC-1612-DG module, a 3D accelerometer, and a 3D gyroscope, along with software for dead reckoning navigation. They can provide navigation calculations without the need to connect to a distance traveled counter. An enhanced Kalman filter algorithm combines data from GNSS and MEMS sensors, weighing the factors based on the quality of the GNSS signal. In environments with weak signal reception and multipath routes, the location determination errors are reduced through dead reckoning navigation.

Products in this series can simultaneously receive and track multiple satellite systems, including GPS, GLONASS, GALILEO, QZSS, and SBAS. They excel in high sensitivity, low power consumption, and exceptional performance, catering to the sensitivity needs in automotive navigation and other location-based applications.

Features:

• Excellent positioning accuracy
• Support for GPS, GLONASS, GALILEO, and QZSS
• SBAS control (WAAS, EGNOS, GAGAN, MSAS)
• Fast TTFF (Time To First Fix) in low signal conditions
• Built-in dead reckoning (DR) navigation software without the need for a distance traveled counter
• Integrated MEMS sensor (3-axis gyroscope and 3-axis accelerometer)
• MEMS output with raw data up to 100 Hz
• High-quality interference suppression (due to multi-stage active suppression)
• Backup battery for system data retention and quick satellite signal recovery
• LED indicator for GNSS positional status
• Integrated magnet for mounting
• Water-resistant design

Specifications:

• Model: LS23030-UDG
• Input voltage: 5V
• Satellite systems: GPS, GLONASS, GALILEO, QZSS, and NAVIC
• Interface: USB
• Power consumption (mA): 40mA
• Operating temperature (°C): -40 to 85
• Dimensions (mm): 49 x 41 x 14.1
• Cable length: 2m

Applications:

• Personal positioning and navigation devices
• Automotive navigation
• Marine navigation

LOCOSYS Technology Inc. was established in 2005 in Taiwan and provides hardware and software services in the field of Global Navigation Satellite System (GNSS). The company maintains a strong development and research team in software, hardware, and system integration.
