M5Stamp RISC-V Module Pico with Wi-Fi and Bluetooth

M5Stamp RISC-V Module with Wi-Fi 4 and Bluetooth 5.0 support

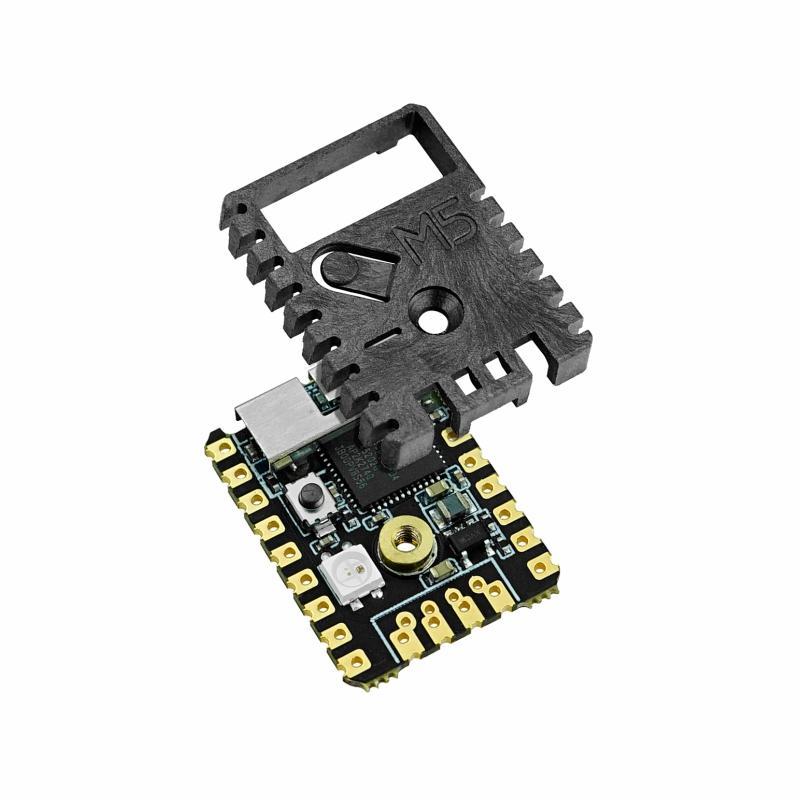

The M5Stamp Pico device offers high transmission speeds and excellent long-distance connectivity, housed in a heat-resistant plastic enclosure. It ensures secure booting with RSA-3072 and flash disk encryption based on AES-128-XTS, providing a higher level of security for your Bluetooth connections.

Compatibility with Arduino, ESP32-IDF, and other platforms guarantees wide usage possibilities. A detailed getting started guide is available in the documentation on the website.

M5Stamp Specifications:

• SoC - ESP32-C3FH4 32-bit single-core RISC-V processor @ up to 160 MHz, 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB built-in flash, Wi-Fi and Bluetooth
• Connectivity: 2.4 GHz Wi-Fi 4, 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n, up to 150 Mbps
• Bluetooth 5, Bluetooth Mesh support, transmission speeds of 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps with long range
• 2.4G 3D antenna

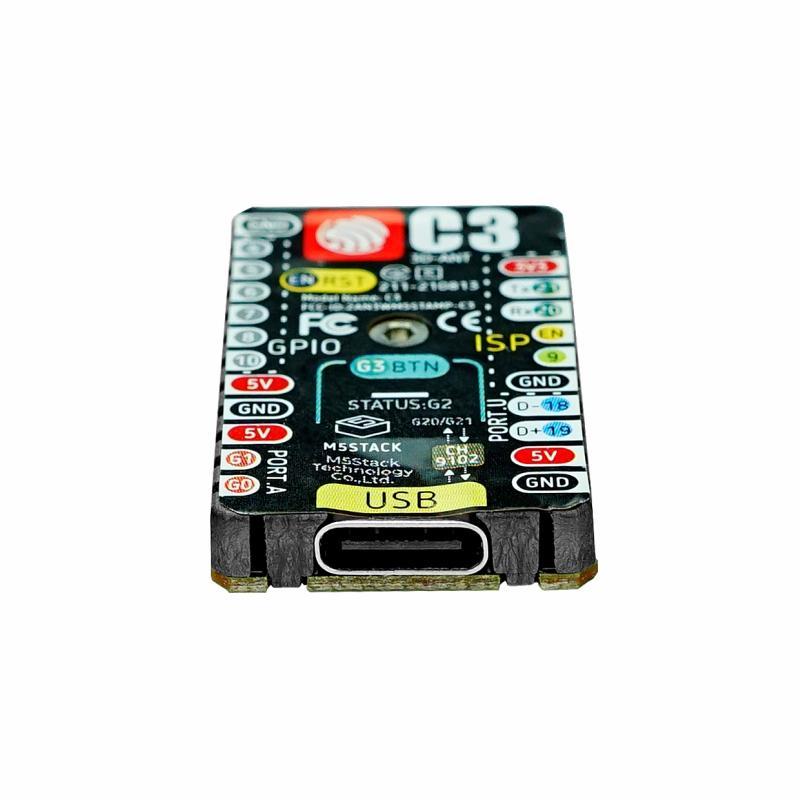

• C3 model - USB – 1x USB Type-C for power and programming via CH9102 USB to TTL
• Expansion – 2.54mm pitch header, 13x GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB Serial, TWAI
• Miscellaneous – 1x user button, 1x reset button, user RGB LED
• Input voltage – 5V @ 500mA via USB-C port
• Dimensions – 34 x 20 x 4.5 mm (1.34 x 0.79 x 0.18 in)
• Weight – 3.8 grams (0.0084 lbs)

Pico Wiki: https://docs.m5stack.com/en/core/stamp_pico

C3 Wiki: https://docs.m5stack.com/en/core/stamp_c3

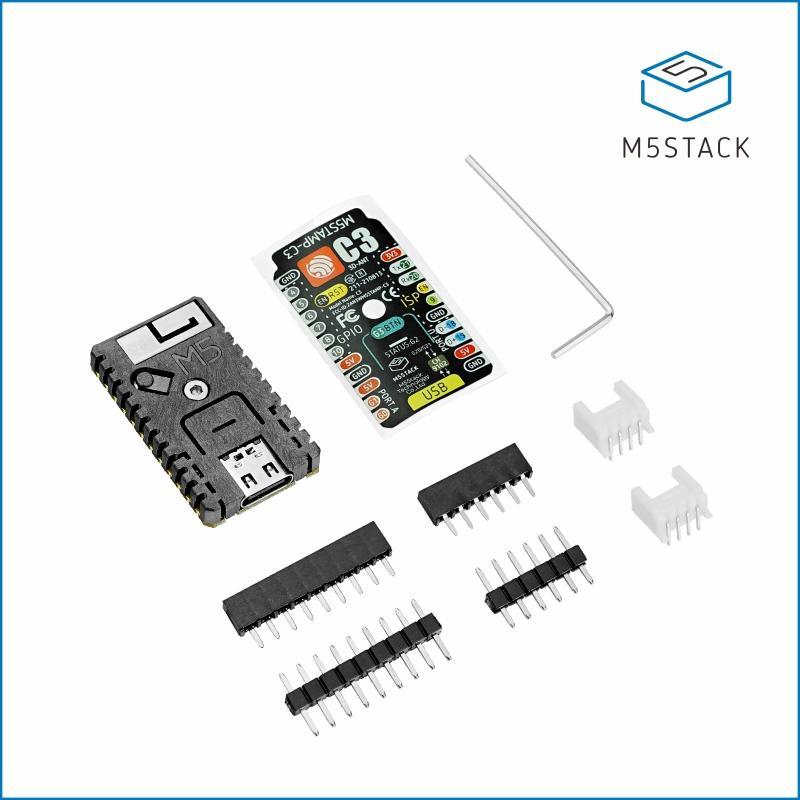

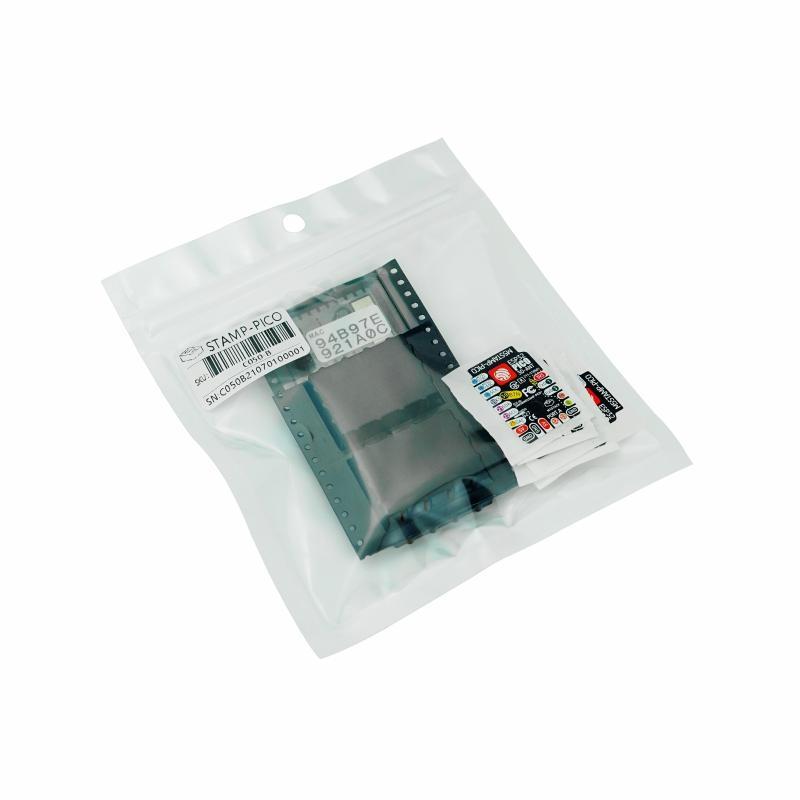

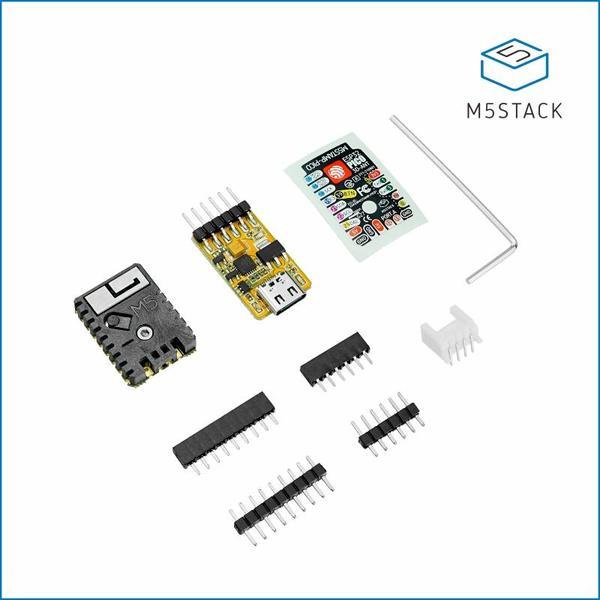

Package Includes:

• Pico Wiki Mate

• Pico DIY kit

• C3 Wiki
