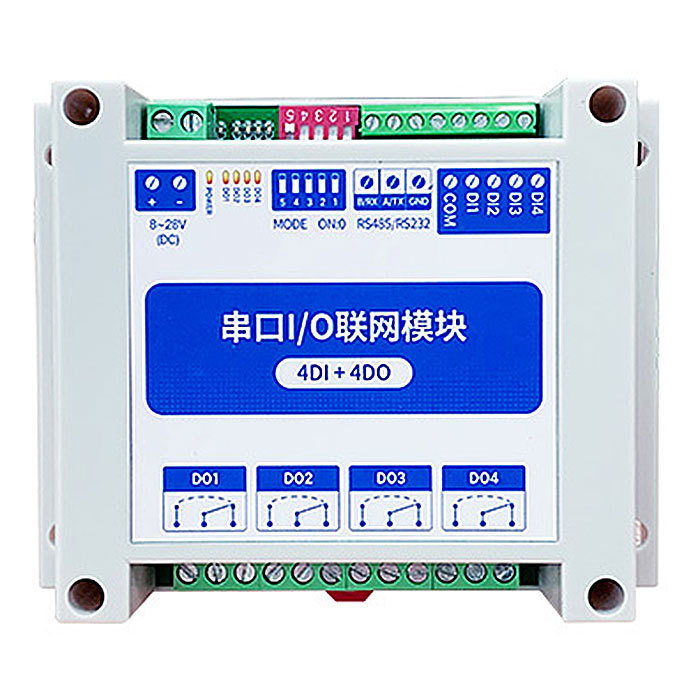

MA0-1-AXCX4040 ModBus RTU Serial IO Module with RS485 4DI + 4DO

MA01-AXCX4040 Serial IO Module with ModBus Support

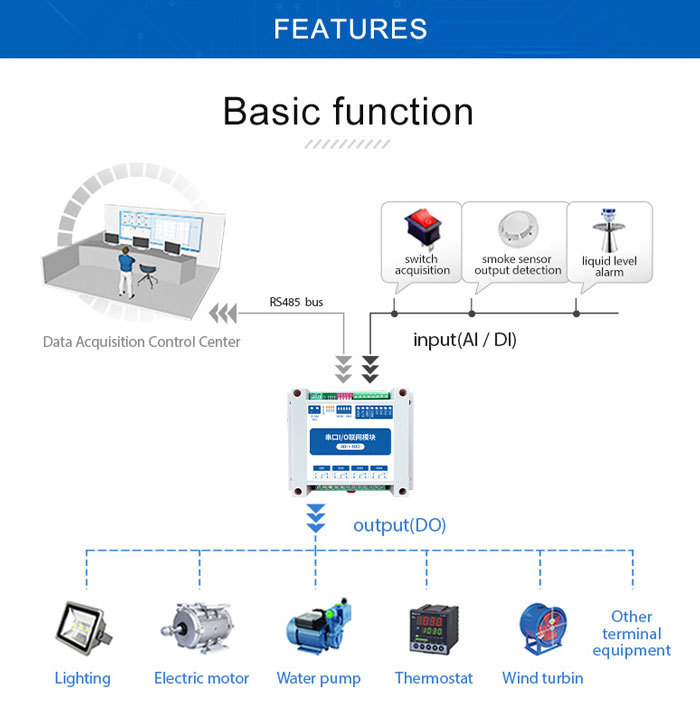

The MA01-AXCX4040 device features 4-channel digital inputs (DI) which are converted to a serial port (RS485) for data transmission to configuration software or PLCs. The I/O network module for the serial port (‘remote IO’) controls the outputs of a switch with 4 relays (DO) by issuing commands via the serial port.

Technical Specifications:

• Model: MA01-AXCX4040 (4DI + 4DO)
• Support for ModBus RTU protocol
• Compatible with various configuration software/PLCs/touch screens
• Acquisition and control of RS485 IO
• Power Supply: 8~28 V DC
• 4-way switching input DI (dry contact)
• 4-channel switching output DO (relay)
• Switching input (DI) supports counting function
• Switching input (DI) supports edge-triggered, level-triggered, and slew rate modes
• Switching output (DO) supports level mode, pulse mode, and monitoring mode
• Output port designed with arc suppression protection
• Communication baud rate of 1200~115200 (default 9600), supporting custom settings

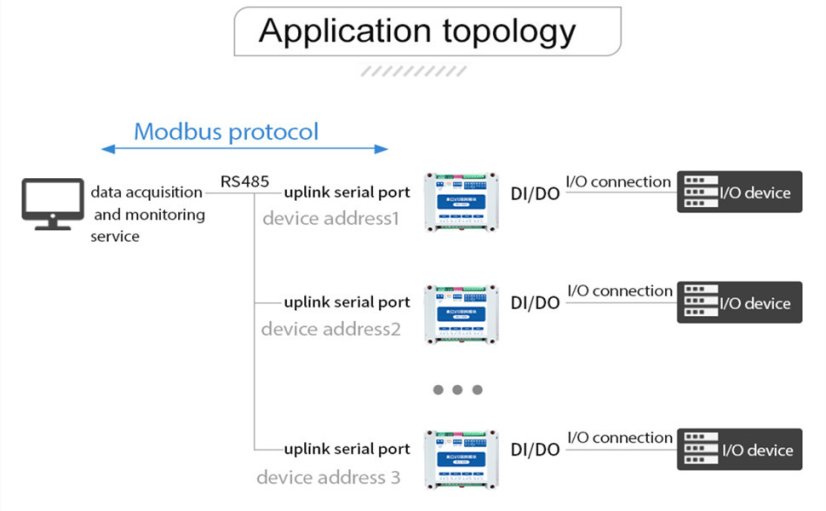

• Supports 1~247 slave stations, with a 5-bit DIP switch capable of setting 1~31 address codes, and more than 31 can be set using software
• Installation method: DIN rail

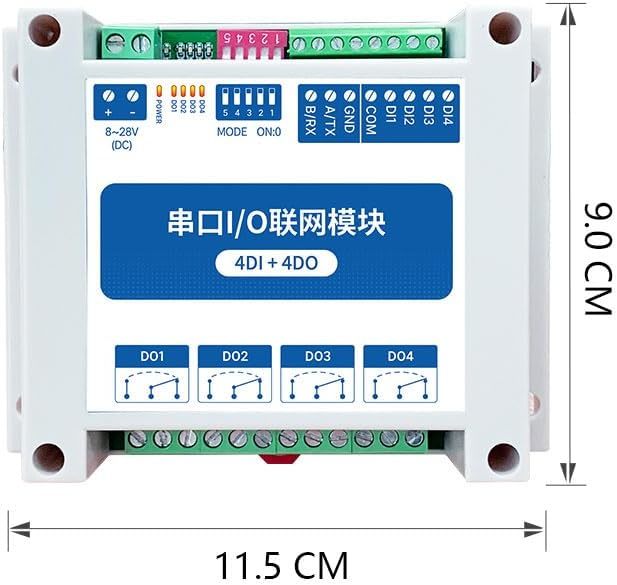

• Dimensions: 145x90 mm

Package Contents:

1x MA01-AXCX4040 with 4-channel module

Software: configuration tool

Manual: MA01-AXCX4040 manual En

Video tutorials: https://www.youtube.com/watch?v=hHMhLZqJmcQ
