MAX30205 Human Body Temperature Sensor ±0.1°C

MAX30205 Human Body Temperature Sensor ±0.1°C


The MAX30205 is a human body temperature sensor with a precision of ±0.1°C, designed for various temperature measurement applications. More
Manufacturer: CLOSEDCUBE Product code: 10943 Shipping and payment
12 EUR incl. VAT
In stock (1 ks)
The MAX30205 is a human body temperature sensor with a precision of ±0.1°C, designed for various temperature measurement applications. More
Manufacturer: CLOSEDCUBE Product code: 10943 Shipping and payment

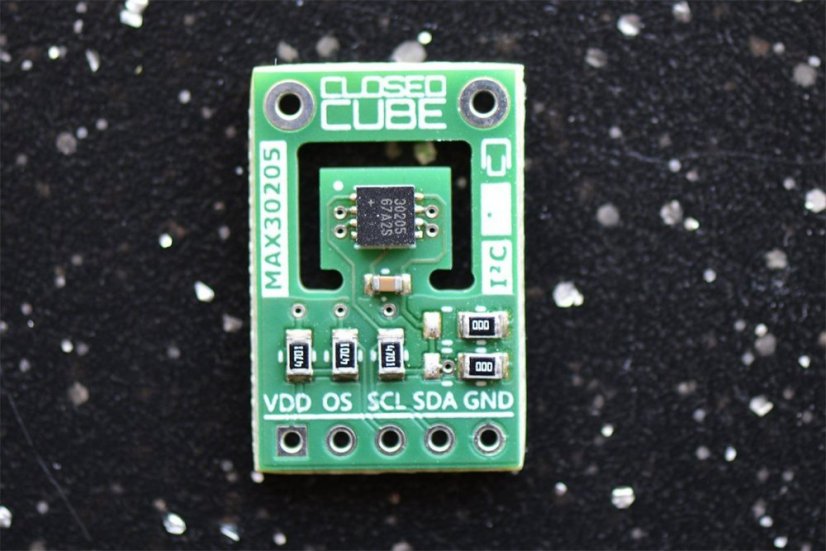

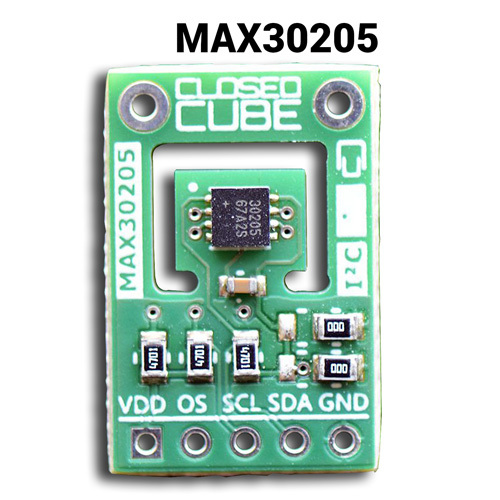

MAX30205 Human Body Temperature Sensor – Expansion Board

Features:

  • Accuracy of ±0.1°C (37°C to 39°C)
  • Temperature resolution of 16 bits (0.00390625°C)
  • Power supply voltage range of 2.7V to 3.3V
  • One-shot mode and shutdown mode help reduce power consumption
  • Operating supply current of 600µA (typ.)
  • I2C interface

Technical Information:

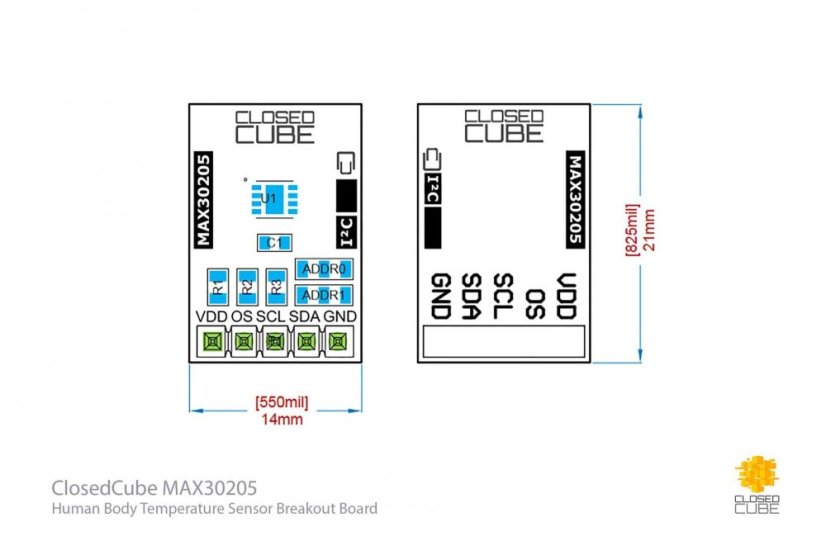

MAX30205 Human Body Temperature Sensor ±0.1°C PCB size 14 x 21 mm

MAX30205 Human Body Temperature Sensor ±0.1°C designed in London UK

MCU Library Support:

Documents:

MAX30205 Human Body Temperature Sensor ±0.1°C source code and datasheet
