MH-ET Live HB100 10.525GHz Doppler Radar Microwave Sensor

MH-ET Live HB100 10.525GHz Doppler Radar Microwave Sensor

Specifications:

• Model: MH-ET Live HB100
• Operating Voltage: 5V±0.25V
• Operating Current (CW): max. 60 mA, typically 37 mA
• Dimensions: 61.2 x 61.2 mm
• Triggering Parameters:
• Detection Range: 2-16m continuously adjustable (minimum range 2m, maximum range 16m)
• Transmitting Frequency: 10.525 GHz
• Frequency Adjustment Accuracy: 3MHz
• Output Power (min): 13dBm EIRP
• Harmonic Radiation: < -10dBm
• Average Current (5%DC) : 2mA typ.
• Pulse Width (min.): 5μSec
• Working Cycle (min.): 1 %
• Receiving Parameters:
• Sensitivity (S/N ratio 10dB) 3Hz to 80Hz Bandwidth: -86dBm
• 3Hz to 80Hz interference bandwidth 10μV
• Antenna Gain: 8dBi
• Vertical Beamwidth 3dB: 36 degrees

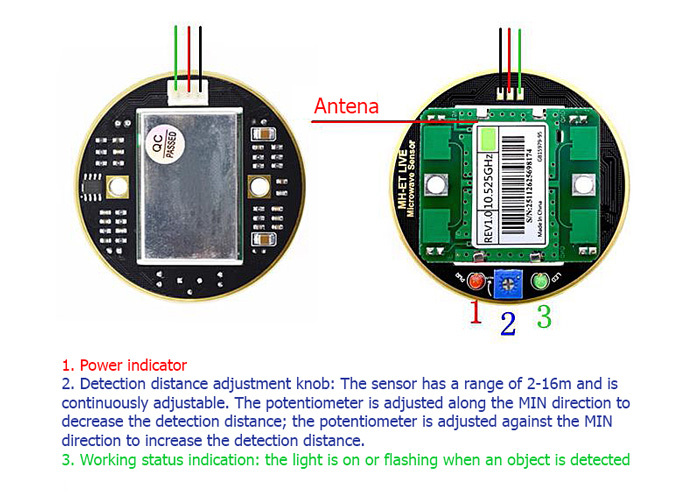

• Horizontal Plane 3dB Beamwidth: 72 degrees Pin Description

Applications:

• Automatic door opening
• Home, car, etc. security alarm
• Collision warning
• Traffic monitoring

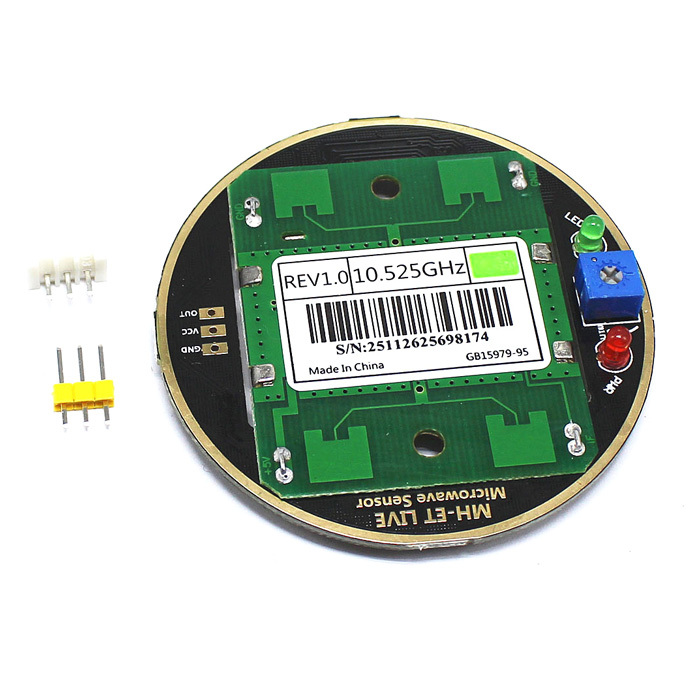

The package includes one Doppler radar microwave sensor.

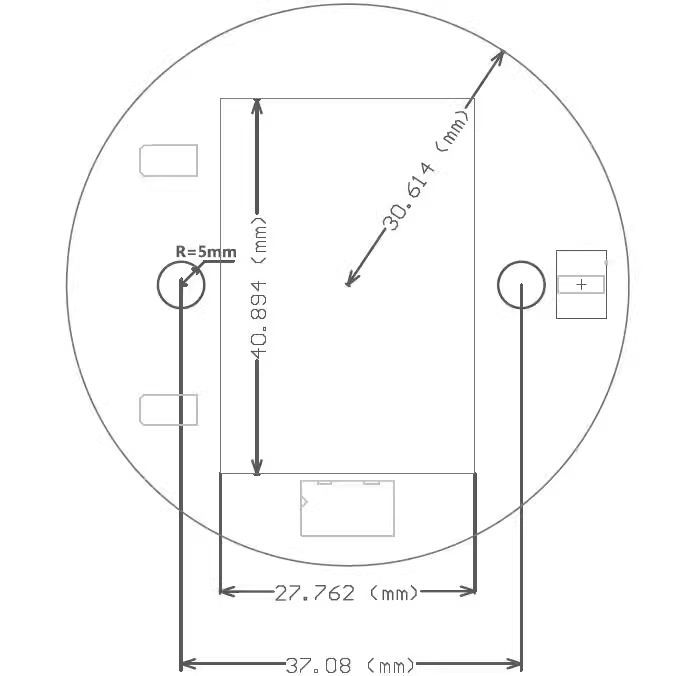

Dimensions:

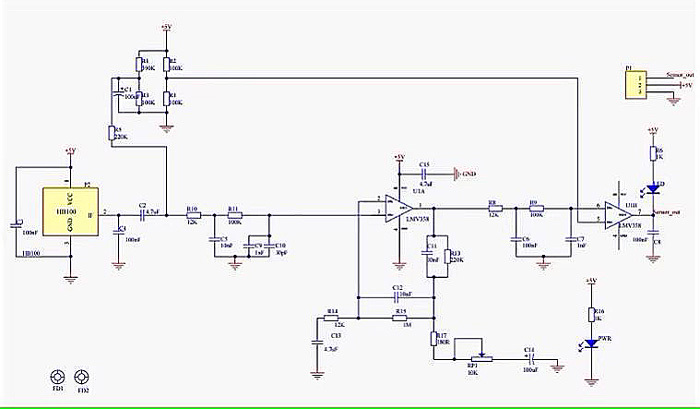

Diagrams:

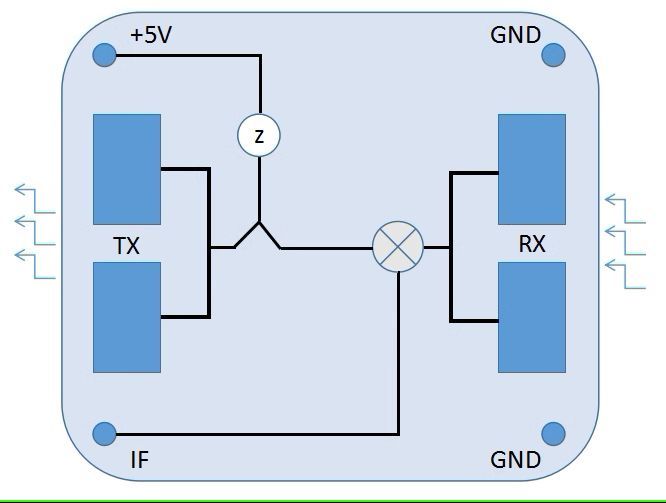

Antenna Description:

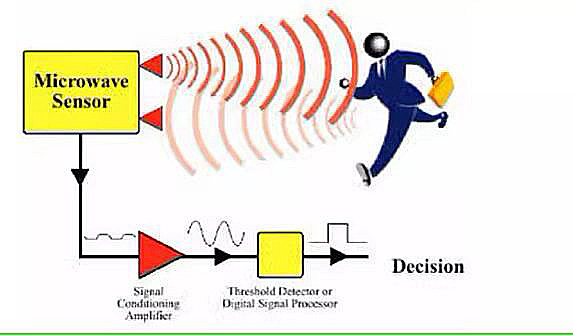

Signal Processing Diagrams:

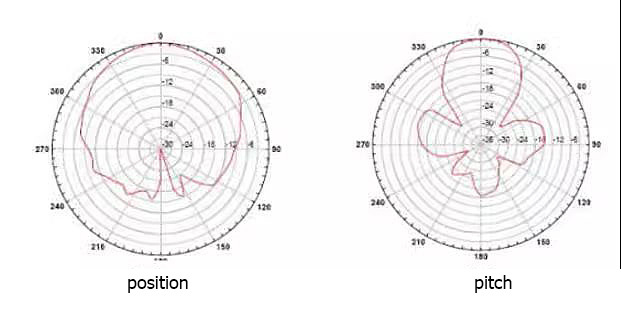

Signal Detection Range Diagram:

The image below is a diagram of the microwave signal sensing range. Detection angle: the detection angle in the direction parallel to the antenna (azimuth) is 72° and the detection angle in the direction perpendicular to the antenna (pitch) is 36°

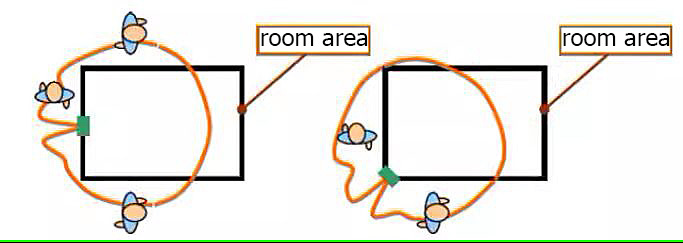

False Positive Diagram

The image below shows a false alarm when installed near a wall. Microwaves have the ability to penetrate building walls, and when microwaves escaping from the walls affect moving targets outside the fortified area, it can cause false alarms.
When installing this type of probe, the installation site should be carefully selected to avoid false alarms.
