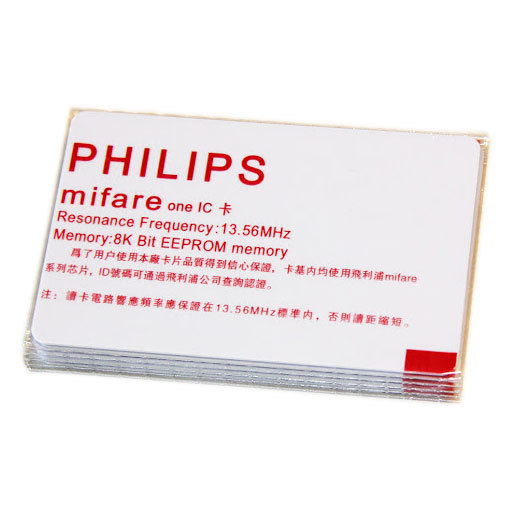

Mifare M1 S50 1k RFID 13.56MHZ white PVC RFID card

White PVC RFID Card with M1 S50 Chip – 13.56 MHz, ISO14443A, 1 mm

The M1 S50 RFID card is a high-quality white PVC contactless smart card operating at 13.56 MHz, fully compliant with the ISO/IEC 14443 Type A standard.
It features the MIFARE Classic 1 K (MF1S50) / compatible chip with 1 KB of EEPROM memory, designed for access control, transport systems, membership programs, and cashless payment applications.

Specifications:

• Chip:

  • MIFARE Classic 1 K (M1 S50)

  • Fully compatible chip (clone)

• Frequency: 13.56 MHz (HF RFID)

• Standard: ISO/IEC 14443 Type A

• Memory Capacity: 1 KB (16 sectors × 4 blocks × 16 bytes)

• Read/Write Speed: 106 kbit/s

• UID: 4/7 byte unique identifier

• UID changeable:  NO

• Operating Range: Up to 100 mm (depending on reader/antenna)

• Endurance: 100,000 write cycles, 10-year data retention

• Operating Temperature: −25 °C to +70 °C

• Card Material: High-quality PVC, glossy white finish

• Card Dimensions: 86 × 54 mm (CR80, standard credit-card size)

• Thickness: 1.0 mm

• Printing Compatibility: Suitable for sublimation and re-transfer printers (Fargo, Evolis, Zebra, etc.)

Application Areas: Community security, access control for residences, parking cards, employee attendance cards, etc.

NXP MF1S50YYX_V1 datasheet: https://cdn-shop.adafruit.com/datasheets/S50.pdf

>>> Note: Minimum order - 10 pieces <<<
