Mini Panel Push Button HL12C – 12 V, 12 mm

12 mm panel mount push button for 12 V applications, suitable for control panels, electronics, and industrial use. More

Manufacturer: NEVEN Product code: P14270 Shipping and payment

from 2,10 EUR incl. VAT

12 mm panel mount push button for 12 V applications, suitable for control panels, electronics, and industrial use. More

Manufacturer: NEVEN Product code: P14270 Shipping and payment

Variants8

	LED push button – Latching	LED Push Button - Color	Push button - LED	Availability	Price incl. VAT

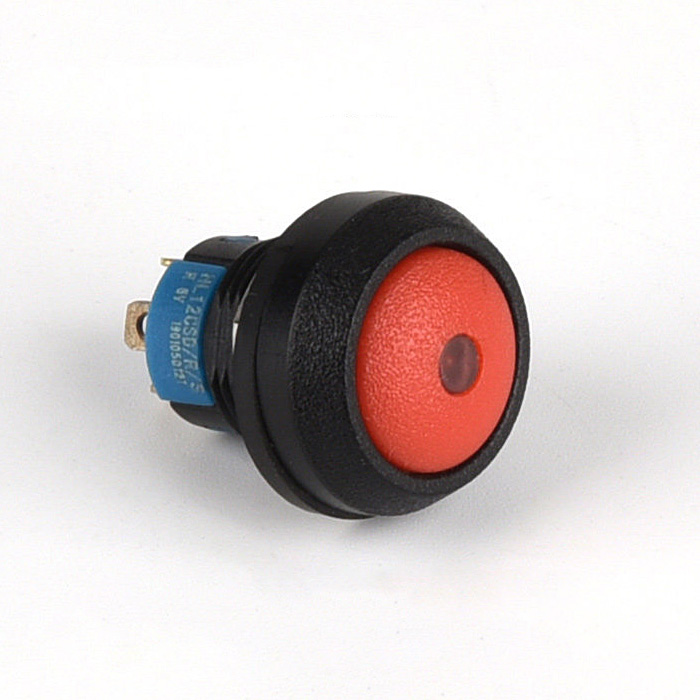

	without latching	red	with LED	in stock	2,10 EUR

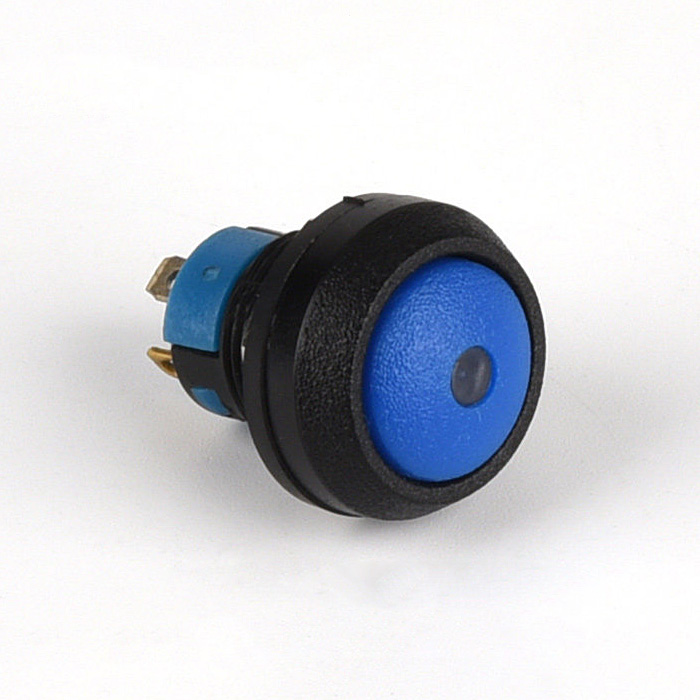

	without latching	blue	with LED	in stock	2,10 EUR

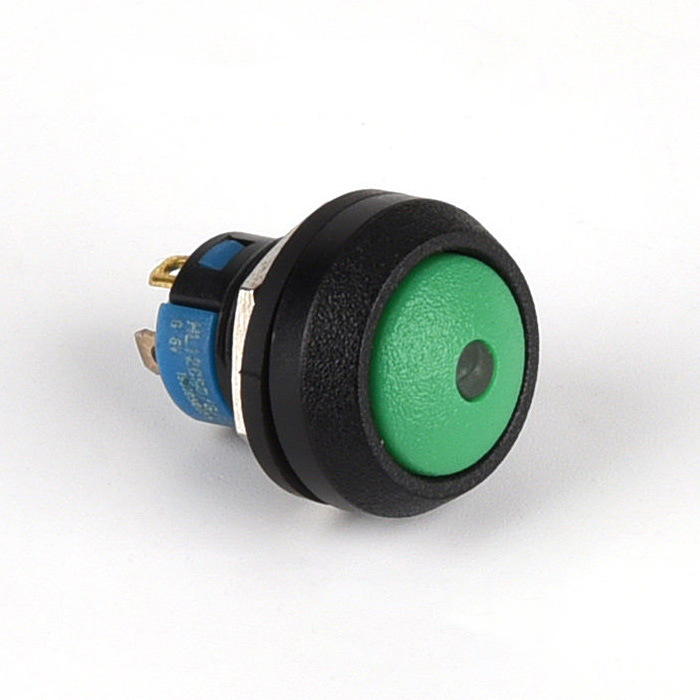

	without latching	green	with LED	in stock	2,10 EUR

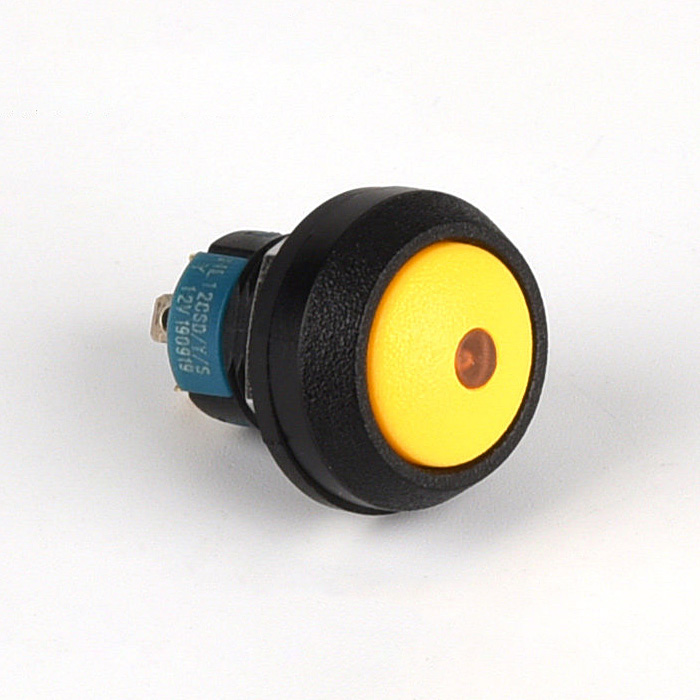

	without latching	yellow	with LED	in stock	2,10 EUR
	with latching	red	with LED	in stock	2,50 EUR
	with latching	blue	with LED	in stock	2,50 EUR
	with latching	green	with LED	in stock	2,50 EUR
	with latching	yellow	with LED	in stock	2,50 EUR
Next

Description

The Push Buttons Plastic 12C (PBS-33B) Series, 12V, 1A

The Push Buttons Plastic 12C (PBS-33B) Series, the perfect solution for your electronic control needs. Designed with versatility and durability in mind, these plastic push button switches are important components in applications ranging from consumer electronics to industrial machinery.

Switch rating	Current: 2A,Voltage:36V	Mechanical life	More than 1,000,000 times
Electrical life	More than 200,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 100MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK08	Terminal type	Wiring pins (3.7X2.8mm)
Material	Button: Plastic	LED Light	LED color: R Y G B W
	Body: Plastic		Rated current: 3 to 48V About 15mA 110 to 220V about 2mA
	Base: PA		Voltage: 12V (3V/6V/24V/36V/48V/110V/220V)
	Contact: Gold plated contact		LED life: 40,000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

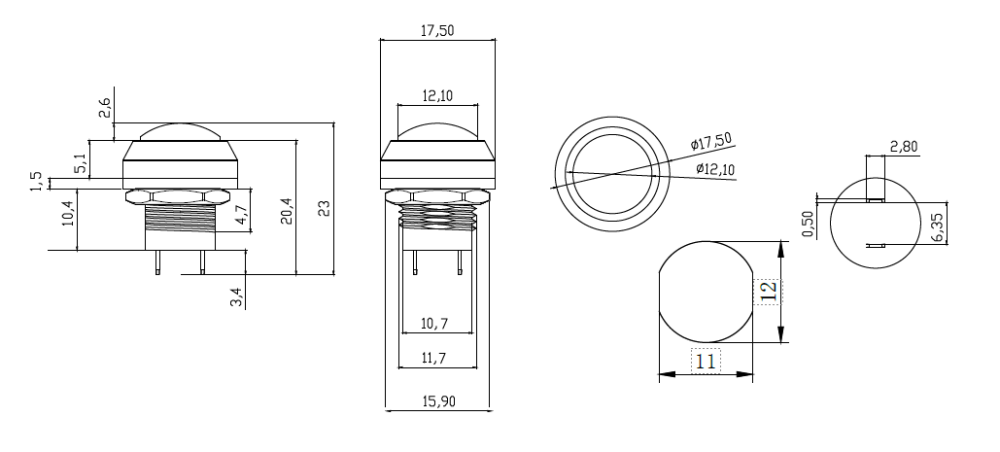

Push Buttons Plastic Drawing

Features

Mounting hole size of 12 mm and can be easily integrated into a variety of devices and panels. Whether you are designing a new product or upgrading an existing one, these switches provide a seamless fit and reliable performance.
The switches are rated at 2A and are capable of handling moderate electrical loads, ensuring your equipment runs smoothly and efficiently.
The PBS-33B series is constructed from high-quality plastic to withstand the rigors of daily use. Not only does the material offer excellent durability, it also offers a lightweight solution that doesn’t add unnecessary bulk to your project.
