Mini RF Remote Control for RGB LED Strips 5-24V with 14 Buttons

Mini RF Remote Control for RGB LED Strips 5-24V

Mini LED controller for RGB LED strips. This compact controller and receiver assembly uses RF signals, allowing control even when obstacles like furniture or walls are in the way.

With the remote control, you can easily turn the LED strip on/off, dim the lights, change colors, and trigger various color effects, totaling 358 different options.

Controller Functions:

• Turn on/off,
• Dimming function,
• 358 dynamic programs,
• 5 levels of brightness adjustment,
• 10 levels of effect speed adjustment.

Receiver Specifications:

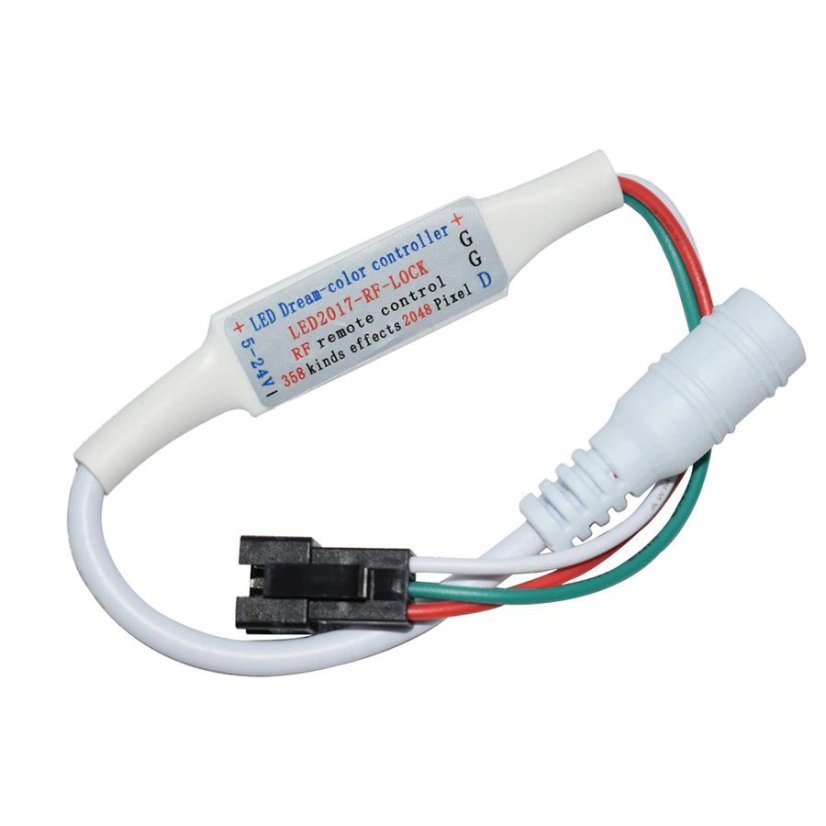

• Model: LED2017-RF-LOCK
• Input Voltage: 5-24V DC
• Transmission Signal: RF 433MHz
• Last Setting Memory: Yes
• Supported LED Strips: WS2811, WS2812, WS2812B
• Each controller can control up to 2048 pixels.

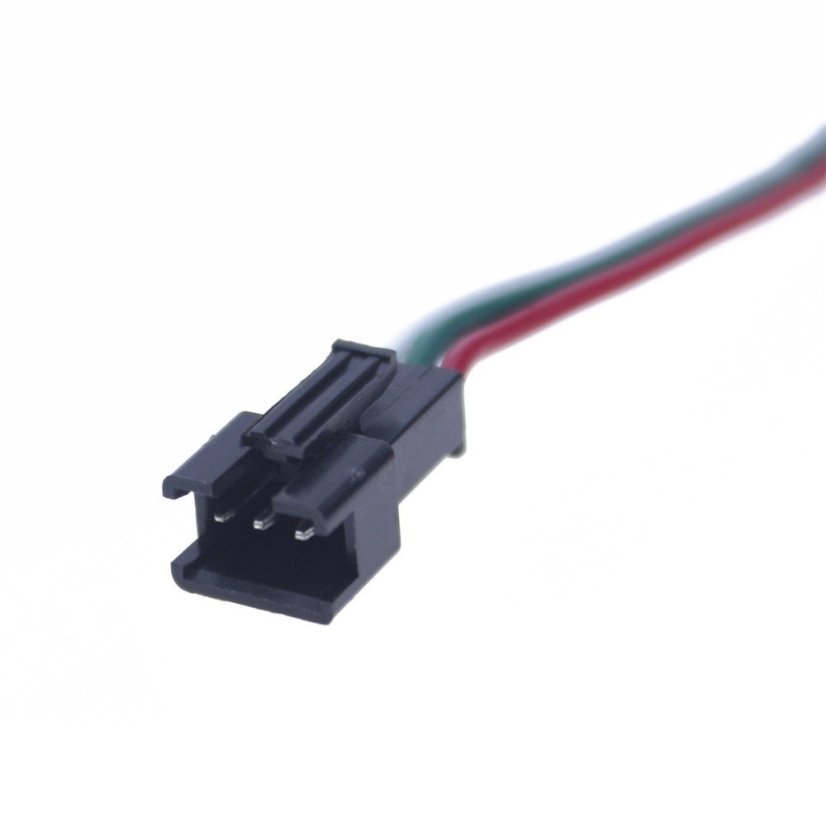

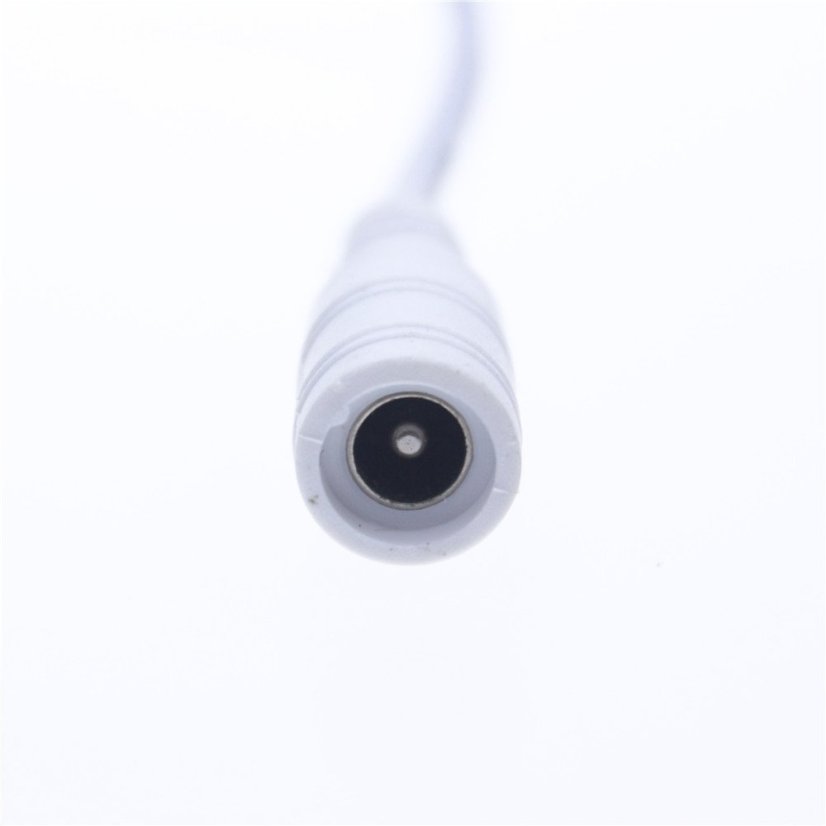

• Connector: 3-pin JST connector and DC female connector.
• Power Supply: 5-24V DC
• Output Current: max. 6A/30W
• Dimensions: 25 x 13 x 5 (mm)

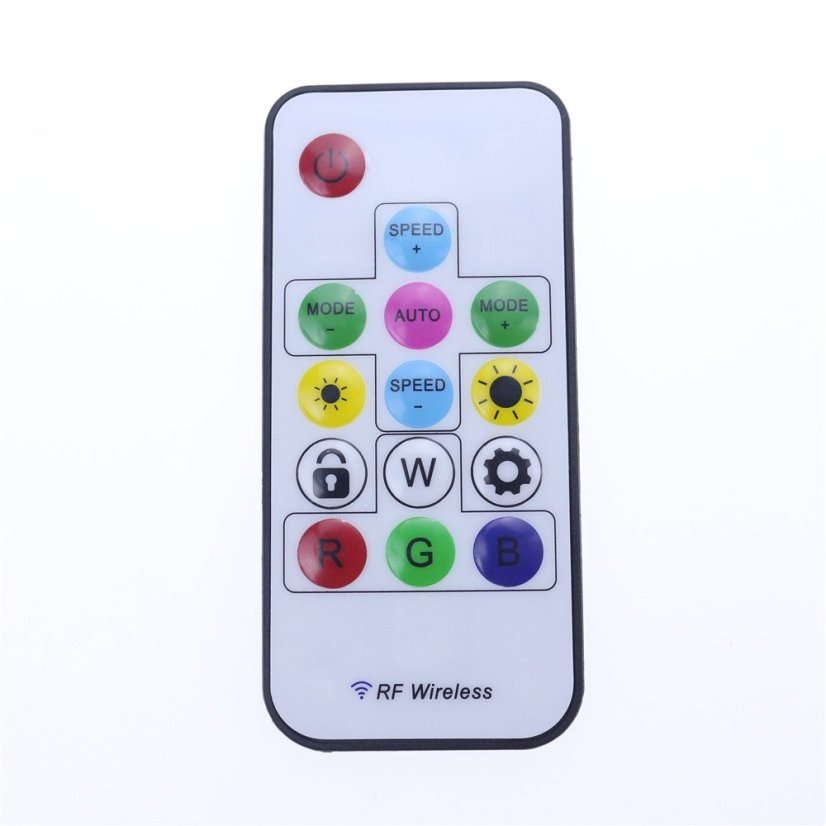

Remote Specifications:

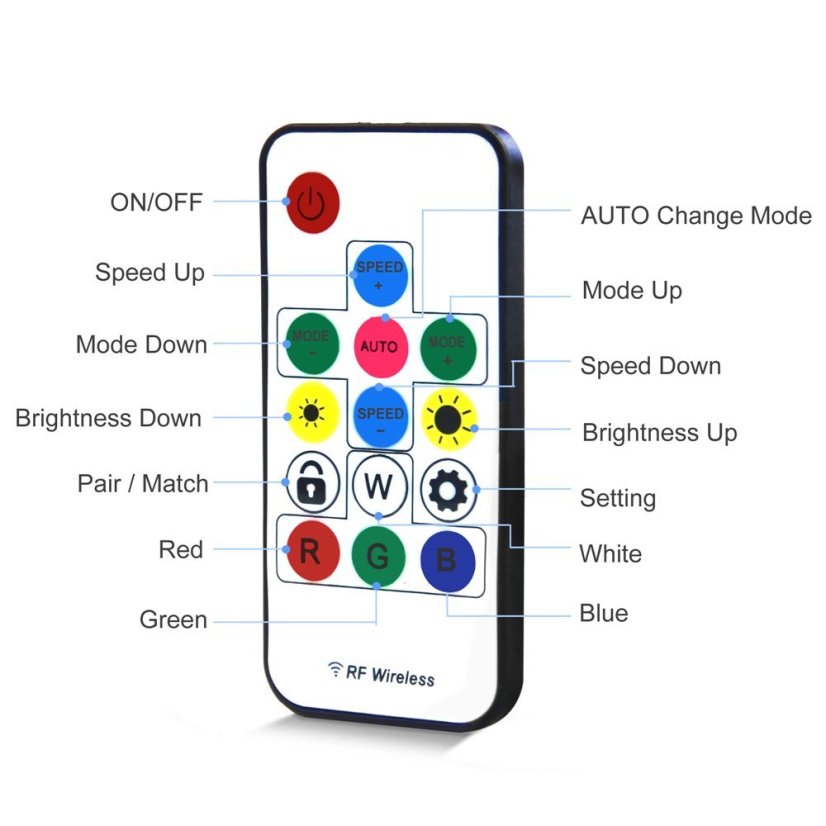

• 14 buttons
• Power Supply: 1x3V (CR2025) – included
• Dimensions: 85 x 40 x 6 (mm)
• Control Distance: 10-15m (line of sight) / 3-5m (through walls/obstacles)

Package Includes:

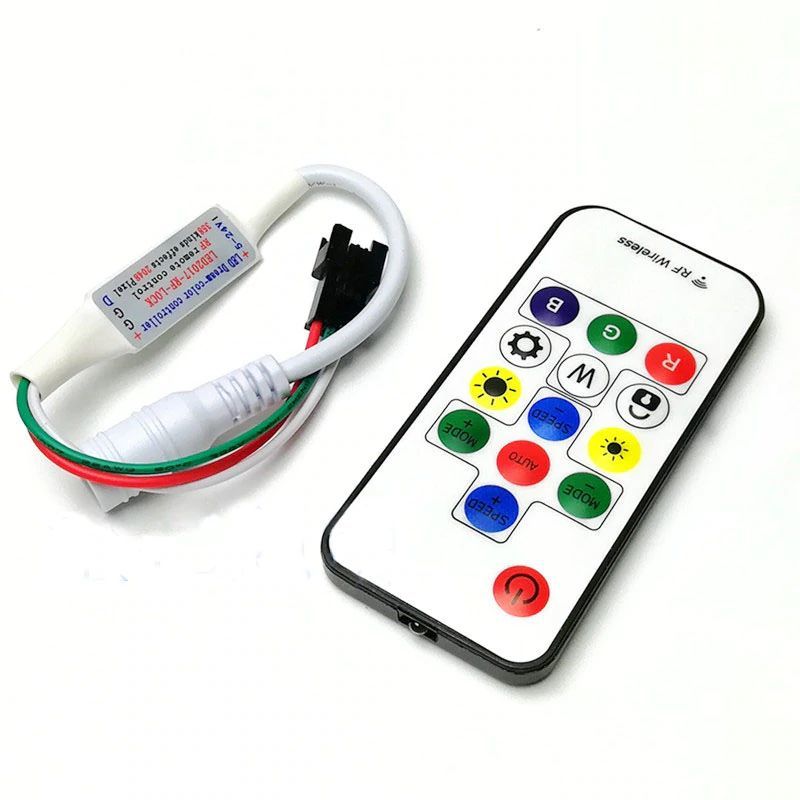

• 1x LED2017-RF-LOCK Controller
• 1x 14-Button Remote Control
• 1x Manual (EN)
