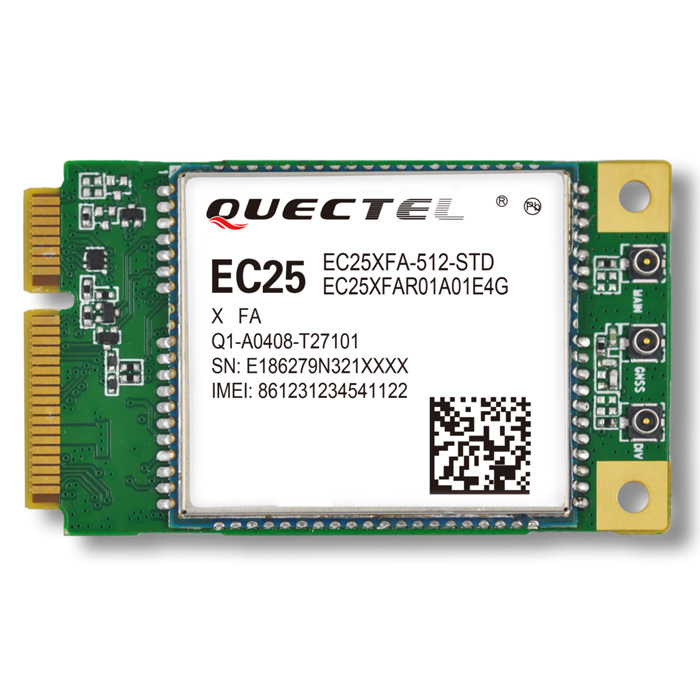

Modul EC25-EC MINIPCIE LTE - Mini PCIe modem

Quectel EC25 Mini PCIe is a series of LTE category 4 modules, adopting standard PCI Express® Mini Card (Mini PCIe) formats. It is optimized specifically for M2M and IoT applications and provides data rates of 150Mbps for downlink and 50Mbps for uplink.

EC25 Mini PCIe includes 8 variants: EC25-J Mini PCIe, EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EC Mini PCIe, EC25-AU Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, and EC25-A Mini PCIe. It is also backward compatible with existing EDGE and GSM/GPRS networks, ensuring connectivity even in remote areas lacking 4G or 3G coverage.

A rich set of internet protocols, standard industrial interfaces, and numerous features (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) expand the module's usability across a broad range of M2M applications such as industrial routers, industrial PDAs, rugged tablets, video surveillance, and digital signage.

• Model: EC25ECGA-128-SNNS
• Region EMEA, Thailand
• FDD-LTE and TDD-LTE
• 3G/WCDMA
• GSM/EDGE
• GNSS (GPS): No
• Mini PCI Express
• FOTA support
• PCM voice
• USB 2.0 interface

• GPRS/EDGE: Multi-slot Class 12
• WCDMA PS: DL 384kbps / UL 384kbps
• DC-HSPA+: DL 42Mbps / UL 5.76 Mbps
• LTE FDD: DL 150Mbps / UL 50Mbps @ Bandwidth 20M (CAT4)

• DC-HSPA+/HSPA/UMTS: Receiver diversity
• DC-HSPA+/HSPA+ DL: 2x2 MIMO
• LTE DL: 2x2 MIMO

• Standard AT commands (3GPP TS 27.007 and 27.005)
• Extended Huawei AT commands

• DTMF support
• PCM voice support

Specifications:
