MPCEM2B-N01 mPCI-E to M.2 KEY-B Adapter

MPCEM2B-N01 mPCI-E to M.2 KEY-B Adapter

M.2 to PCIe converter for laptops, enabling the installation of the latest M.2 Key B WiFi Bluetooth cards into Mini PCI-E adapters. This adapter allows for the upgrade of older laptops from 2010 to 2016 with the latest WiFi technology.

Product Features:

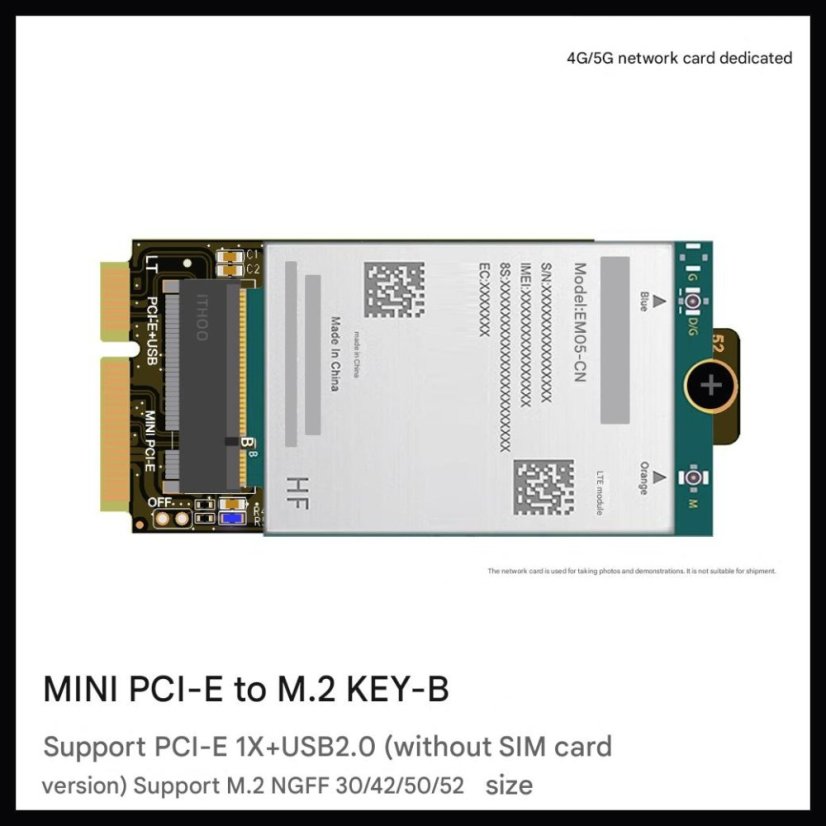

1. This adapter is specifically designed to convert 5G/4G/3G wireless M.2 Key B USB 2.0 modules for use in desktop or laptop computers with standard/minimal card slots. You can insert M.2 cards (Socket 2 ssi-base WWAN), such as GSM, HSPA (3.5G), GPS, LTE into this adapter.

2. Allows users to insert M.2 WWAN modules into desktop/laptop computers via a PCIe slot using this adapter.

3. Supports 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA modems, GPS, 4G, 5G, WiMAX, LTE, Mini Cards into M.2 (Socket 2 ssi-base WWAN) USB 2.0 slots on computers.

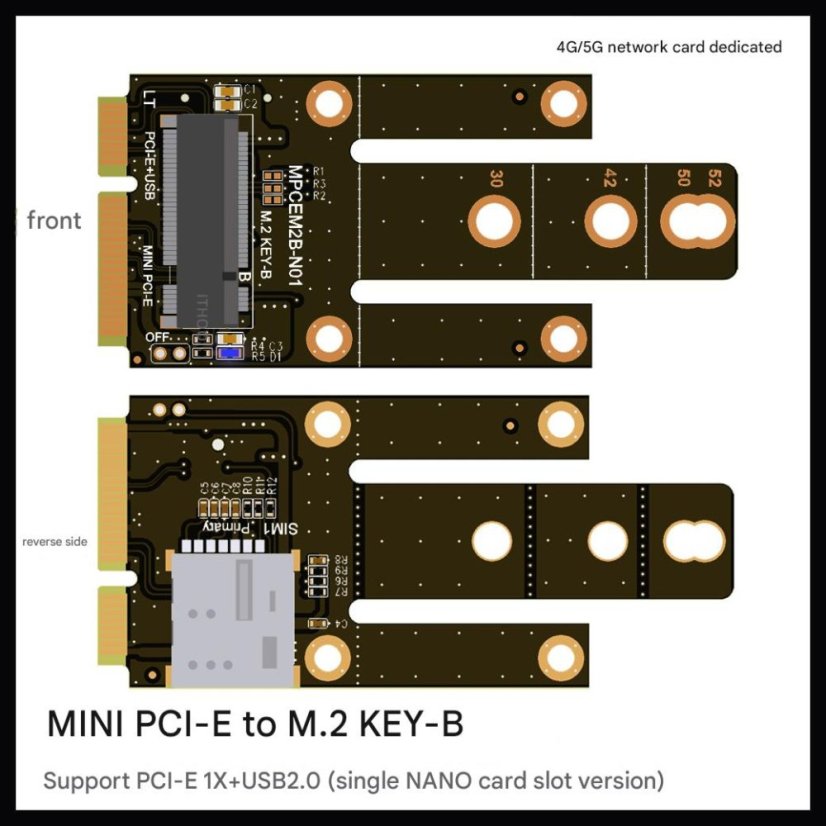

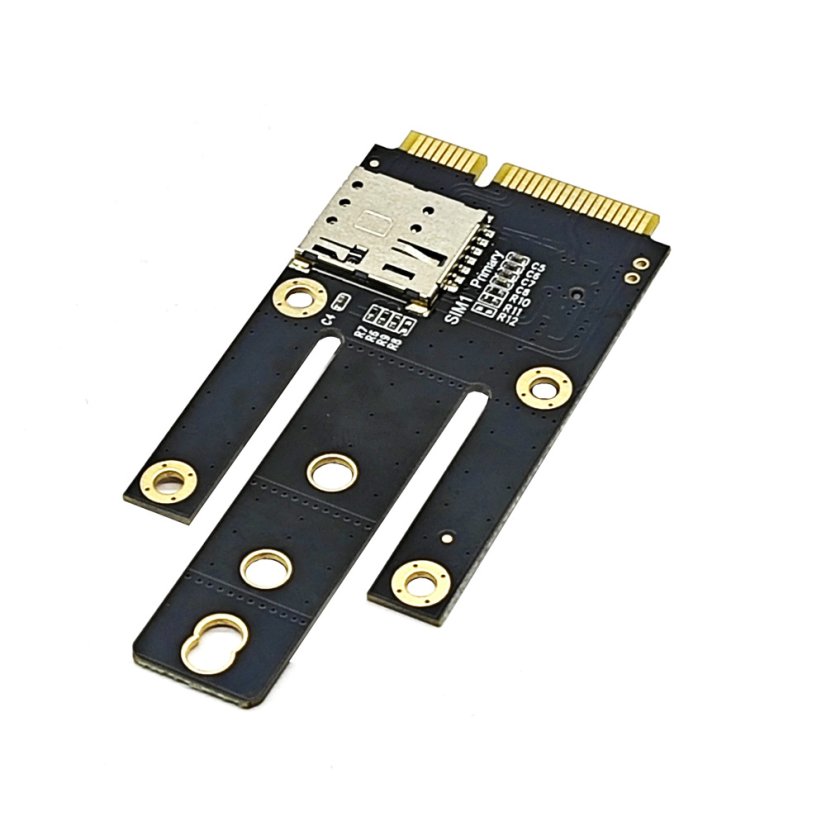

4. Supports external Nano SIM card tray connection (for versions with SIM card slot).

5. No external power supply required.

Supports M.2 Key B card sizes: 3030/3042/3050/3052.

Product Parameters

• Model: MPCEM2B-N01

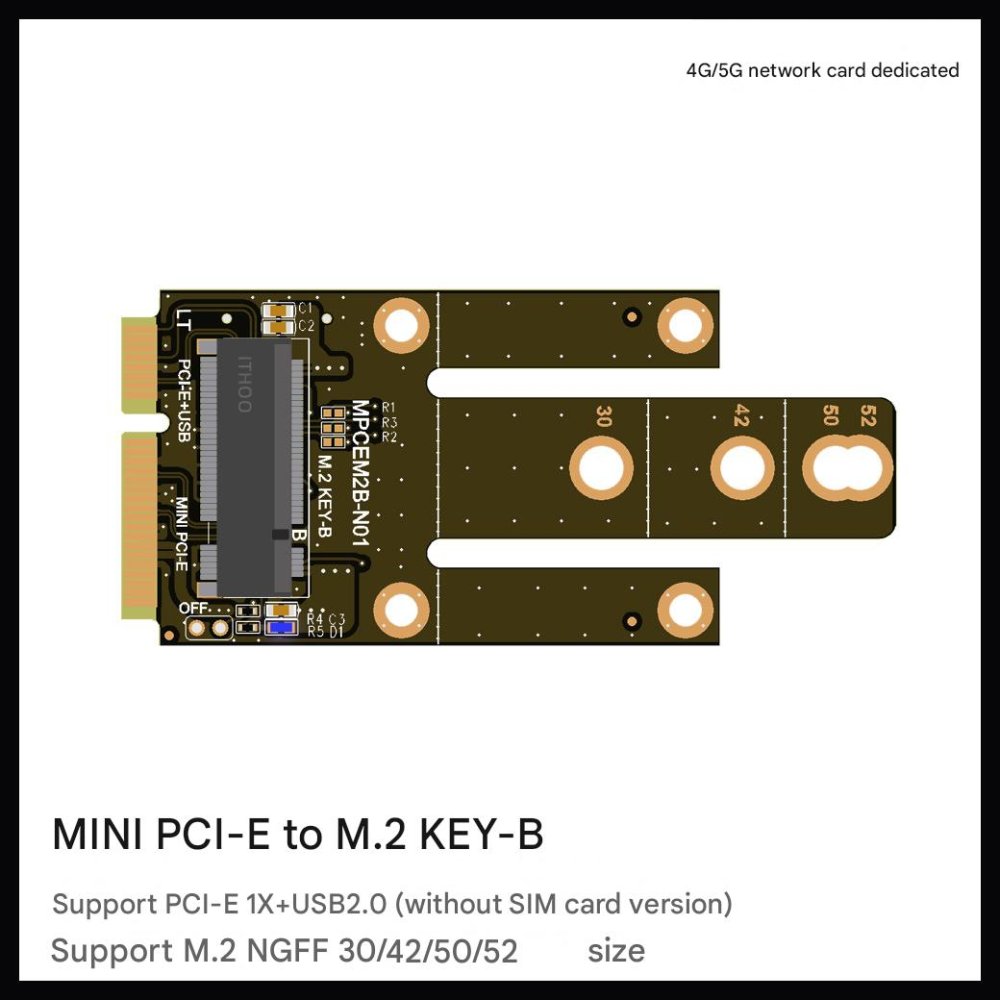

• Interface: MINI PCI-E TO M.2 NGFF KEY-B (for network cards only)

• Supported Sizes: Supports 30/42/50/52mm size network cards

• Interface Speed: Slot supports PCI-E 1X + USB 2.0 signal

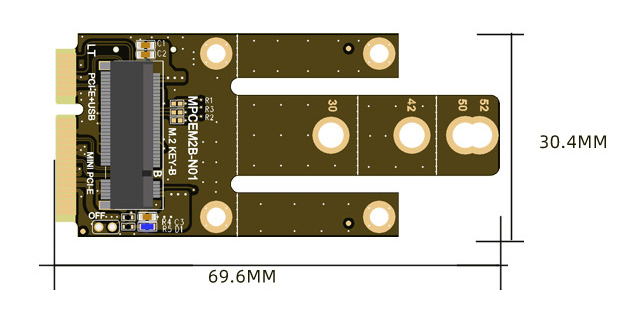

• Product Size: 69.6mm × 30.4mm

• Operating Environment: -5 to 70°C

• Supported System: Depends on the system supported by the installed network card

PS:

1. Please confirm your MINI PCI-E interface is for WiFi wireless cards. If you are plugging in another device, do not purchase this product.

2. This adapter does not require a driver; it depends on the driver of the network card. Please consult the network card manufacturer.

3. This adapter card is about 3mm longer than a standard MINI PCI-E wireless card. After inserting it with your network card, if your device has limited space, please consider carefully before buying.
