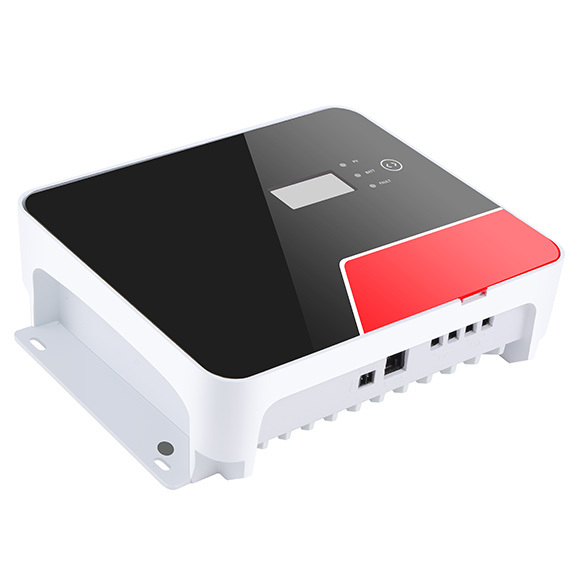

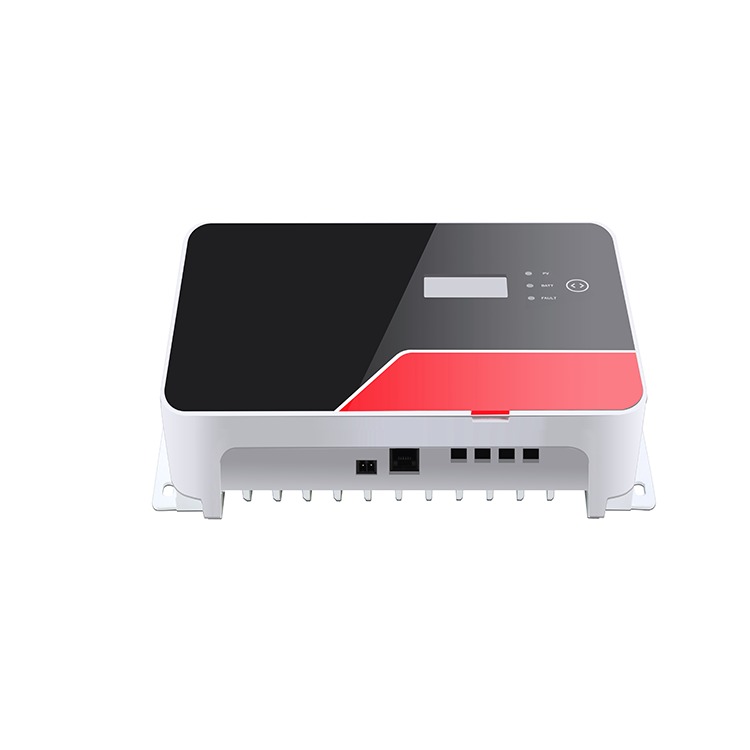

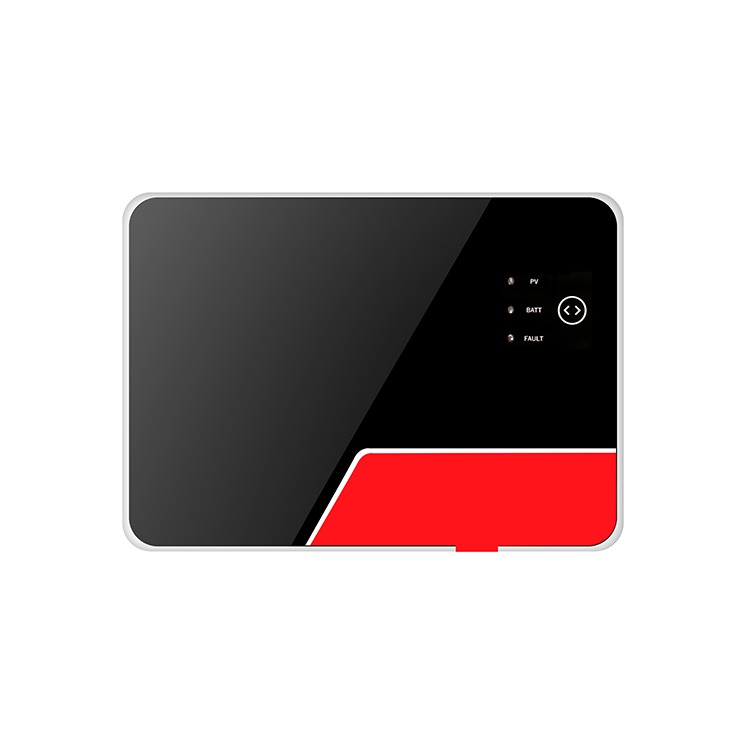

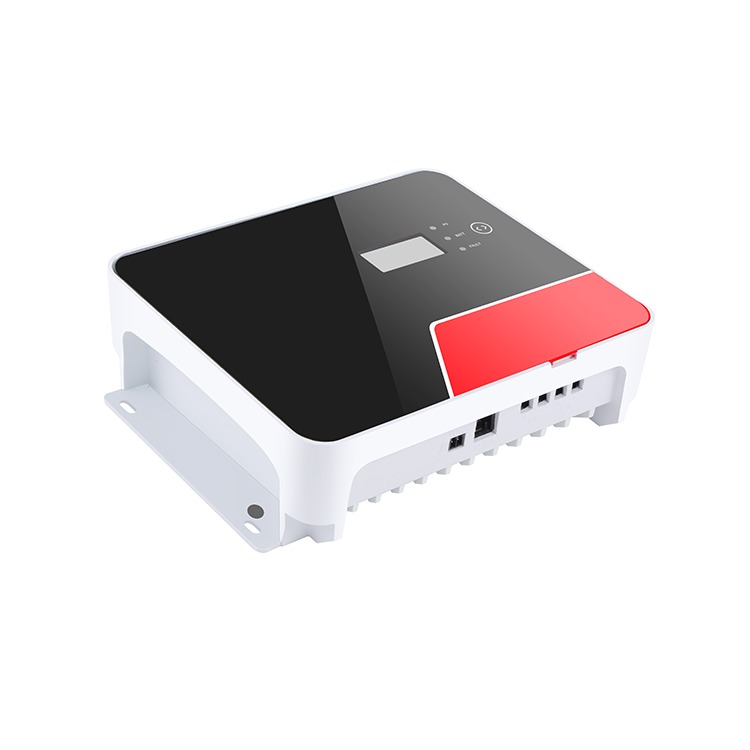

MPPT Solar Charge Controller TOUCH MS2420N 12/24V

MPPT Solar Charge Controller with Touchscreen

MPPT charge controllers are widely used in various DC charging kits, such as for motorhomes and marine applications. Adding Bluetooth connectivity (optional in some models) to MPPT controllers enables operation and monitoring via a mobile app.

• Aluminum housing + tempered glass cover
• Touchscreen control
• Automatic recognition of 12/24V battery system
• Maximum data recording time of 300 days
• Maximum PV input voltage of 100Voc
• Negative ground design for use in living spaces
• Built-in BT module for control through a mobile app
• Max. MPPT charging current of 20A

Advanced Maximum Power Point Tracking (MPPT) Technology.

• Fast MPPT start with ultra-quick scanning across the entire VI curve
• Smart MPPT algorithm ensures better tracking at multiple power points
• High solar performance in low light conditions
• Outstanding peak efficiency exceeding 98%

High Quality and Features

• Aluminum casing for better cooling and charging at high temperatures
• Tempered glass cover, buttons, and touchscreen for improved control
• Polyurethane-filled interior for better cooling and waterproofing
• Overrated electronic components to minimize energy loss from heating
• Output power at full charge up to 45ºC
• Compensates battery charging voltage with a temperature sensor
• LCD display
• Supports lead acid AGM/GEL/flooded and lithium batteries

Reliable Electronic Protections

• Advanced protection for battery charging and discharging
• Overheat protection by reducing power if the temperature is too high
• Allows max. 25% over-rating of rated power without damaging the controller
• Extensive protections including PV reverse polarity protection and reverse current protection

Additional Device Features

• RS485 port for Modbus communication
• External port for parallel use of multiple devices
• Connection for external Bluetooth module for control in the app
• Connection for external remote LCD display

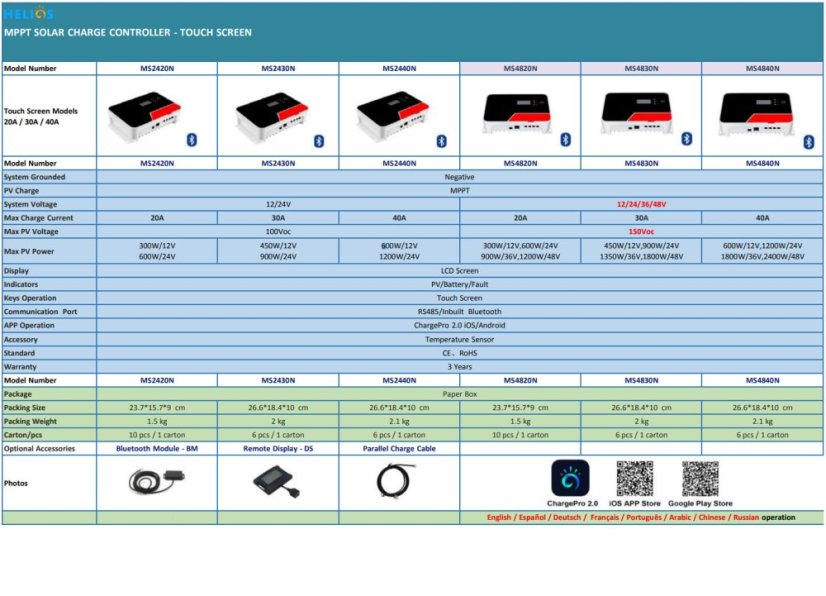

Specifications:

Datasheet: MS User Manual.pdf

Manual: MS-N Series.pdf

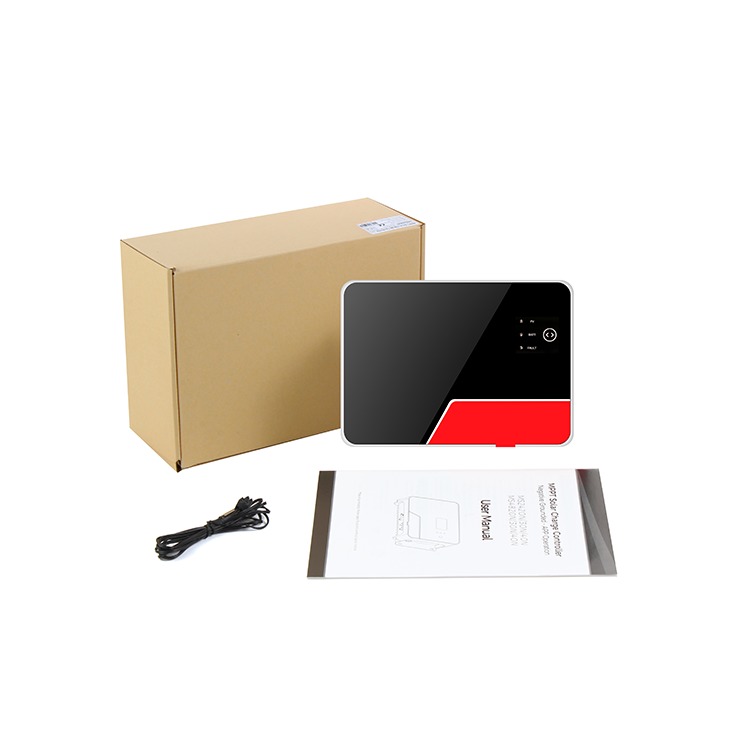

Package Contents:
1x MPPT controller
1x temperature sensor
1x instruction manual
