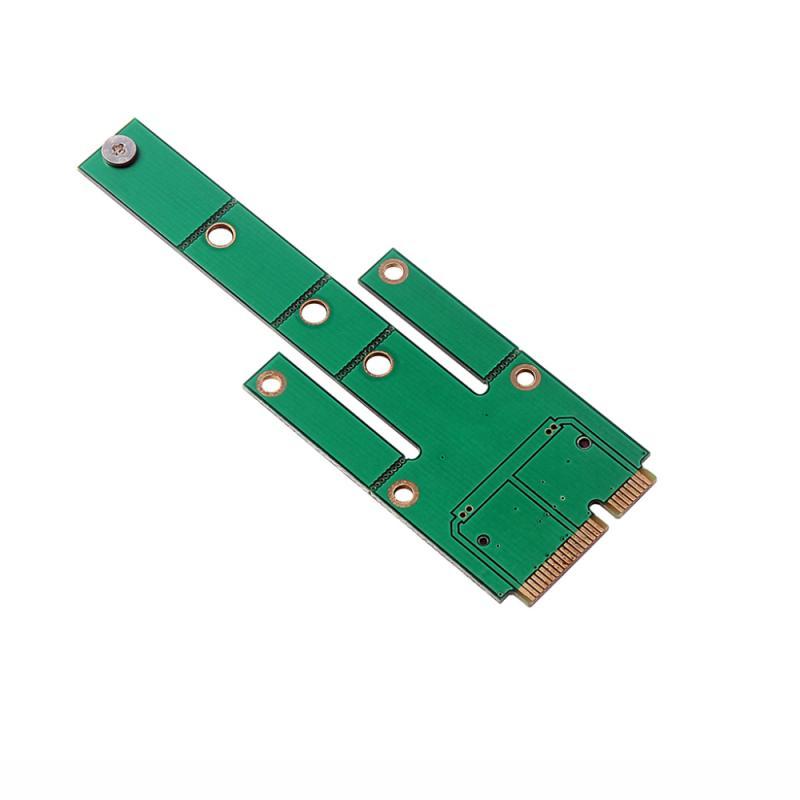

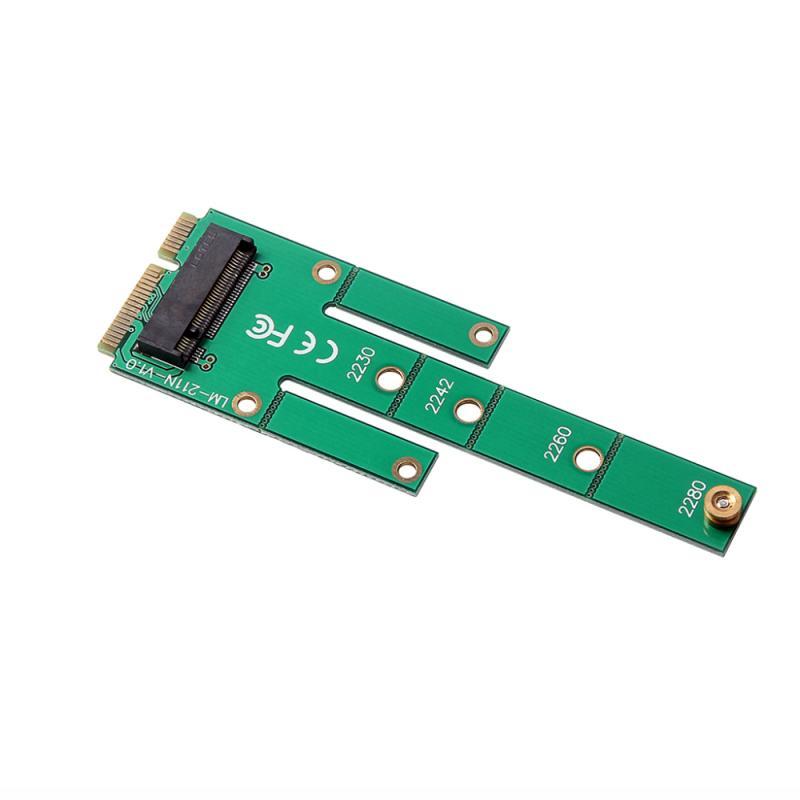

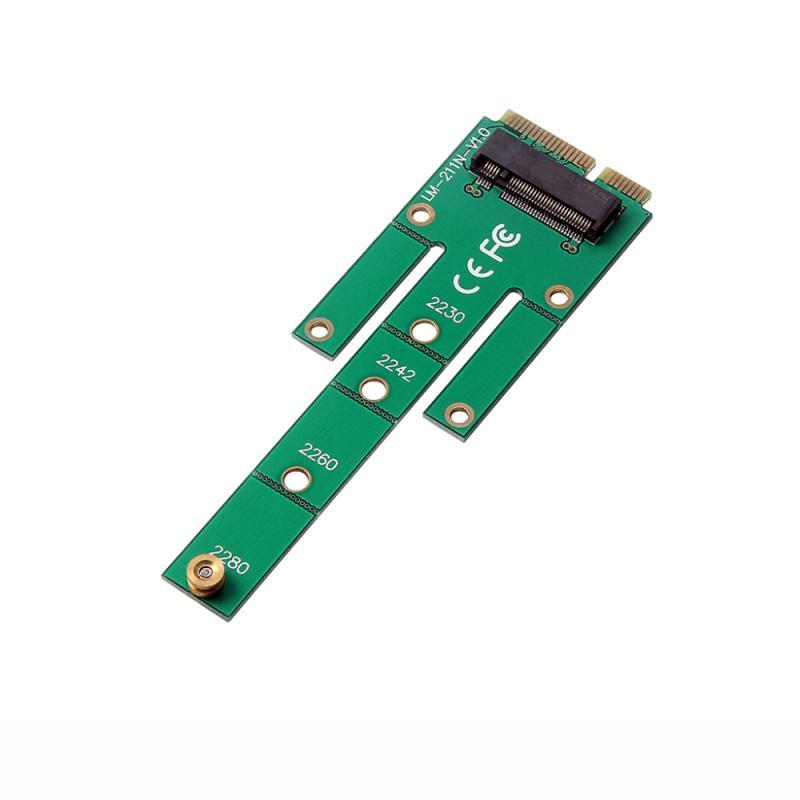

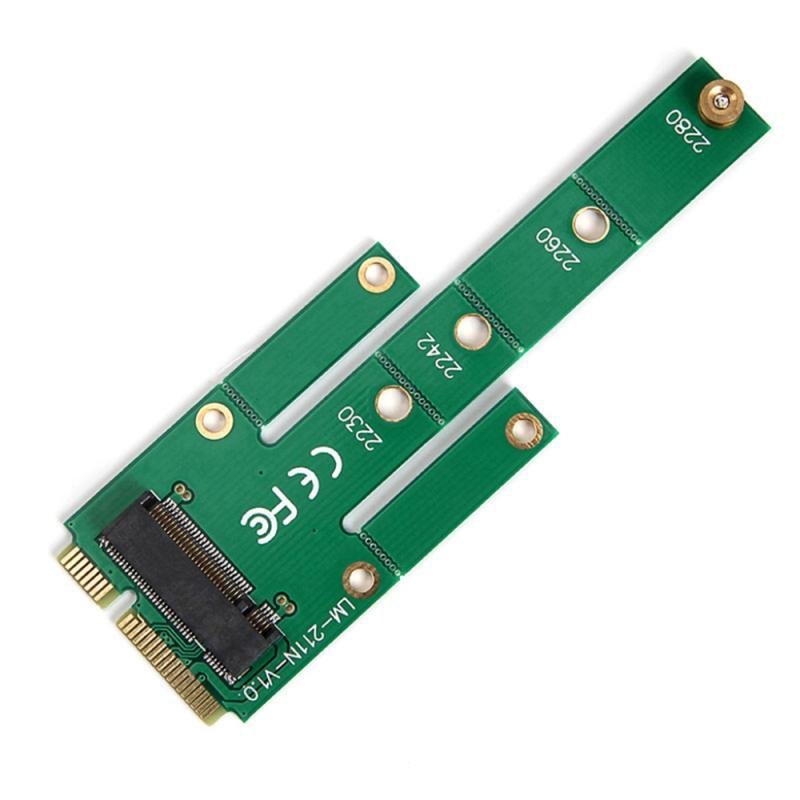

Mini PCI-E to M.2 NVMe SSD Adapter

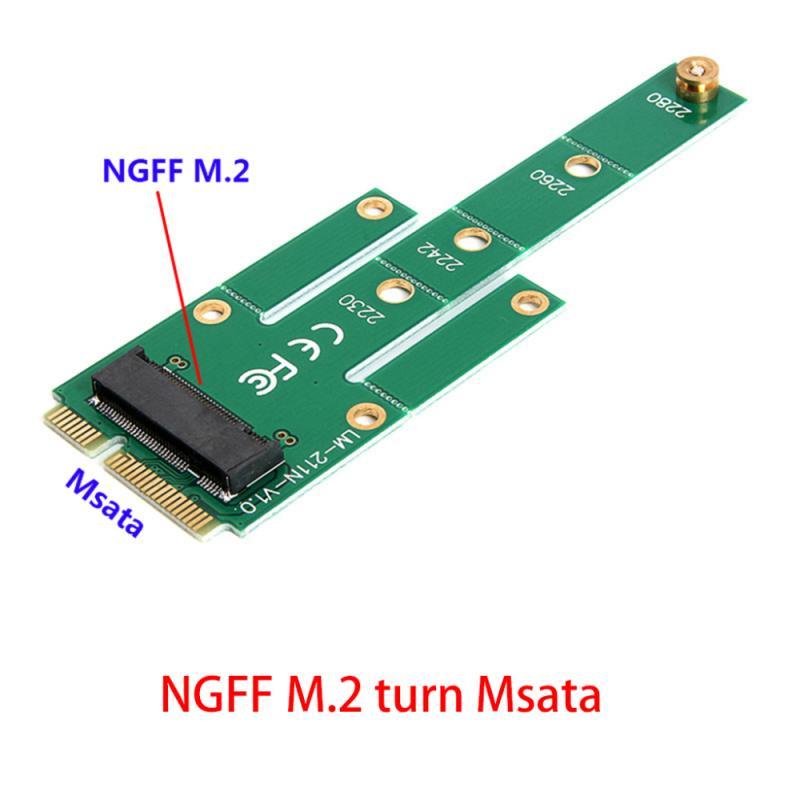

Mini PCI-E to M.2 NVMe SSD Adapter | mSATA to NGFF SATA Converter

This product is a passive adapter (simple wiring converter, no extra chip) that lets you install a modern M.2 NVMe SSD into an old Mini PCI-E slot, or an mSATA SSD into an mSATA slot.

Specifications:

• PCIe Lanes: x1 only (limited by Mini PCI-E / mSATA slot)
• Maximum Theoretical Speed: ~1 GB/s (PCIe 2.0 x1)
• Real-World Speed: 200 – 800 MB/s (depending on SSD and system)
• Protocol: NVMe (for Mini PCI-E version) / SATA (for mSATA version)

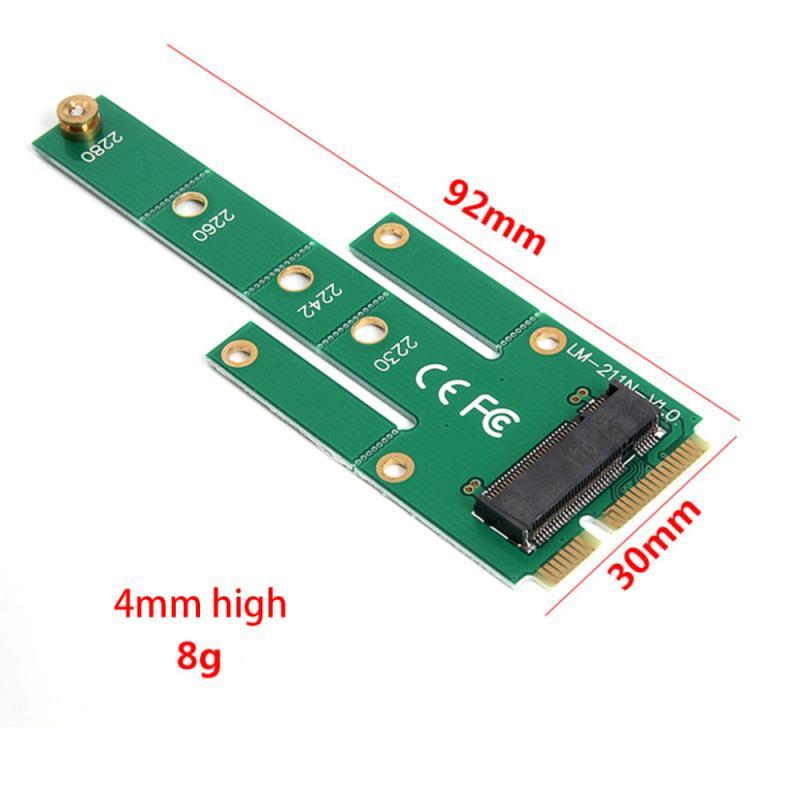

• Form Factor: Standard Mini PCI-E or mSATA full-size card
• Installation: Plug & Play (no drivers needed for the adapter)
• Power: Supplied from motherboard slot

Key Features:

• Allows installation of modern M.2 SSDs into old laptops/desktops
• Low-cost storage expansion solution
• Compact and lightweight design

Important Limitations:

• Cannot achieve full NVMe speed (x4 lanes not available)
• Bootable drive support depends entirely on motherboard BIOS
• Not suitable as primary system drive in most cases
• SSD must have good x1 compatibility
• Wrong SSD type (NVMe vs SATA) will not work

Intended Use: Ideal for adding extra storage or game libraries to older laptops and mini PCs with Mini PCI-E or mSATA slots.

Important Limitations (Must Read!)

1. Speed is heavily limited
   • Mini PCI-E slot only provides PCIe x1 bandwidth.
   • A normal NVMe SSD expects PCIe x4.
   • Real-world speed after conversion: 200 – 800 MB/s (much slower than a normal NVMe SSD which can do 3000+ MB/s).
2. Cannot be used as boot drive in most cases
   • After installing the adapter + SSD, you can use it for data storage or installing games/programs.
   • Installing Windows / booting the OS from it is usually not possible unless your motherboard BIOS specifically supports booting from a Mini PCI-E device.
   • The adapter itself does not prevent booting — it depends entirely on your motherboard BIOS.

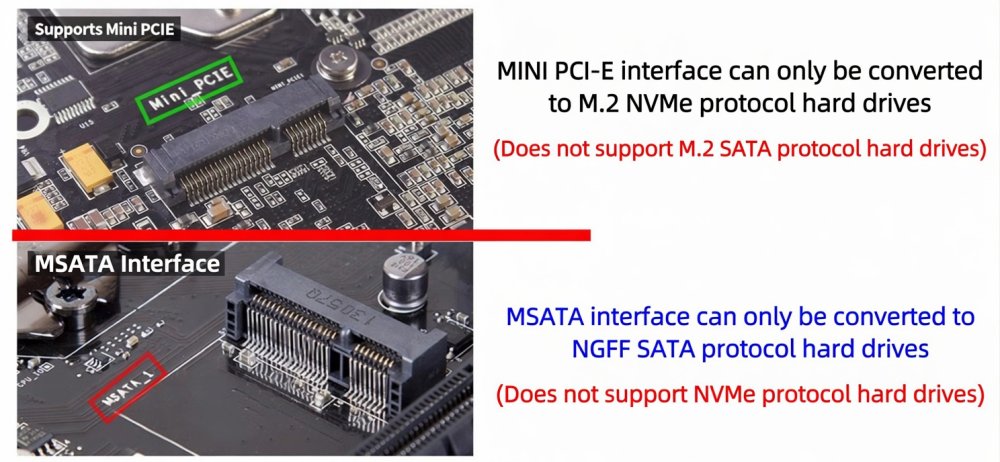

3. Two completely different versions – do not mix them!

• If you put the wrong type of SSD, it simply won’t work or won’t be recognized.

4. Compatibility notes
   • The SSD must support PCIe x1 mode (most modern NVMe SSDs do, but some cheaper ones have poor compatibility).
   • If the SSD is not detected, try a different NVMe drive — compatibility issues are common.
   • The adapter is just wires — full compatibility depends on your motherboard + SSD combination.
